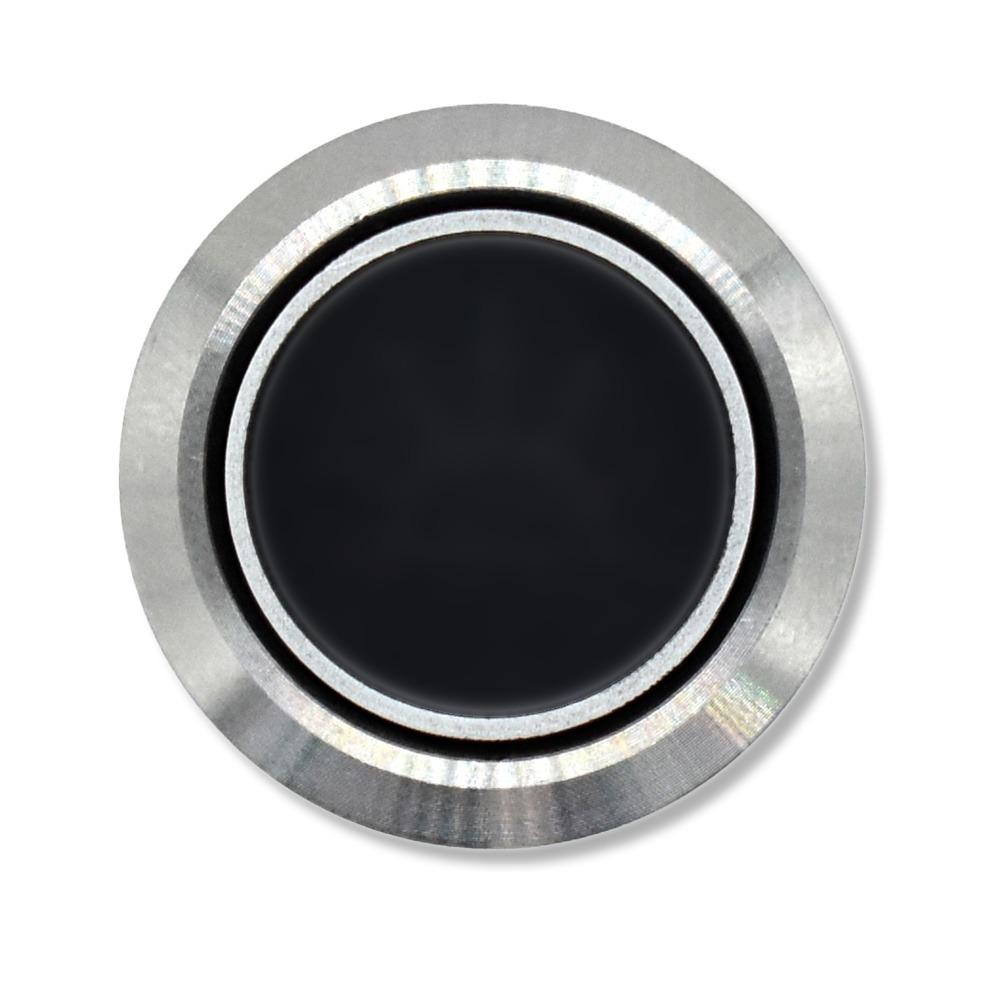

Bluewater Enterprises 9059-2123 22mm Electronic Double Momentary Inrush Switch

Bluewater 22mm Electronic Double Momentary Inrush Switch, Off-(On)-(On), Bright Blue/Green/Red LED

The Bluewater Enterprises 9059-2123 is a 22mm electronic double momentary switch designed to provide two momentary outputs in one control. Its Off-(On)-(On) function supports separate up/down or in/out operation for applications such as trim tabs, jack plates and windlasses.

Integrated LED indicators provide clear status feedback: blue when the switch is off, green when the first output is active and red when the second output is active. Each channel is rated at 10 amps from 12 to 24 volts DC, while the inrush protection handles 120-amp surges for up to 120 seconds to support motor and pump startup.

The switch features a sealed SS316 stainless steel body with an IP69K protection rating for demanding marine environments, including salt spray, washdowns and submersion. Its nickel-plated brass and stainless steel construction, along with listed salt-spray testing and 20g shock resistance, supports use with demanding marine loads.

Installation requires a 22mm mounting hole and a Bluewater 22mm Deutsch-style harness. The proprietary plug-in connector is designed for clean wiring and convenient switch replacement. The switch is rated for 50,000 mechanical cycles and 10,000 electrical cycles. The compatible 22mm harness is sold separately.

Features:

• Function: Off-(On)-(On) double momentary operation with dual channels
• Dual Outputs: Two momentary outputs in one switch for up/down or in/out control
• LED Indicators: Blue when off, green when the first output is active and red when the second output is active
• Electrical Rating: 10 amps per channel at 12 to 24 volts DC
• Inrush Protection: Handles 120-amp surges for up to 120 seconds
• Protection Rating: IP69K sealed construction
• Construction: Nickel-plated brass and SS316 stainless steel body
• Installation: Requires a 22mm mounting hole and Bluewater 22mm Deutsch-style harness
• Connector: Proprietary Deutsch-style plug-in connector
• Service Life: Rated for 50,000 mechanical cycles and 10,000 electrical cycles
