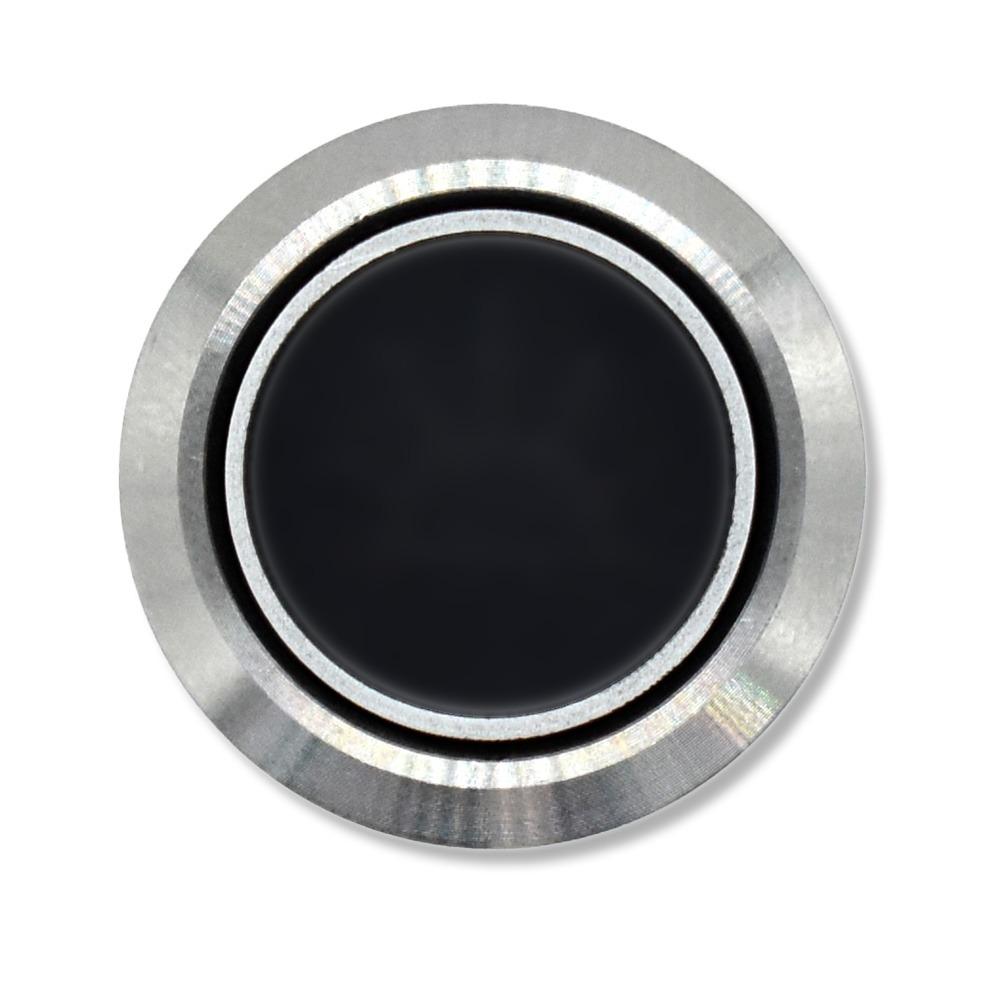

Bluewater Enterprises 9059-2213 22mm Electronic Momentary Horn Switch with Red LED

Bluewater 22mm Electronic Momentary Horn Switch, Red LED

The Bluewater Enterprises 9059-2213 is a 22mm electronic momentary horn switch designed for horn circuits. Press and hold the switch to sound the horn, then release it to turn the horn off. A red LED illuminates while the switch is pressed, providing a clear visual indication that the horn is active.

Built for demanding marine loads such as pumps and motors, this switch provides inrush protection for surges up to 120A for 120 seconds. Its IP69K protection rating and sealed SS316 stainless steel body are designed to withstand salt spray, washdowns and submersion. The switch also features salt-spray testing and 20g shock resistance.

The 9059-2213 is rated at 20A at 12–24VDC and uses a nickel-plated brass and SS316 stainless steel construction. It offers a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles. Installation requires a 22mm mounting hole and a Bluewater 22mm Deutsch-style harness. The Deutsch-style harness is sold separately.

With plug-in installation, the proprietary Deutsch-style connector supports fast, clean wiring and convenient switch swaps. The Bluewater Enterprises 9059-2213 combines momentary horn control, red LED status indication and rugged environmental protection in a compact marine switch design.

Features:

• Momentary Horn Operation: Press and hold to sound the horn; release to turn it off.
• Red LED Indicator: Illuminates while the horn switch is pressed.
• Inrush Protection: Handles 120A surges for 120 seconds.
• IP69K Protection: Sealed design withstands salt spray, washdowns and submersion.
• Marine Construction: Uses nickel-plated brass and SS316 stainless steel.
• Electrical Rating: Rated at 20A at 12–24VDC.
• Plug-In Installation: Uses a proprietary Deutsch-style connector.
• Mounting: Requires a 22mm mounting hole.
• Mechanical Life: Rated for 50,000 cycles.
• Electrical Life: Rated for 10,000 cycles.
• Shock Resistance: Tested to withstand 20g shock.
• Harness Requirement: Compatible Bluewater 22mm Deutsch-style harness sold separately.
