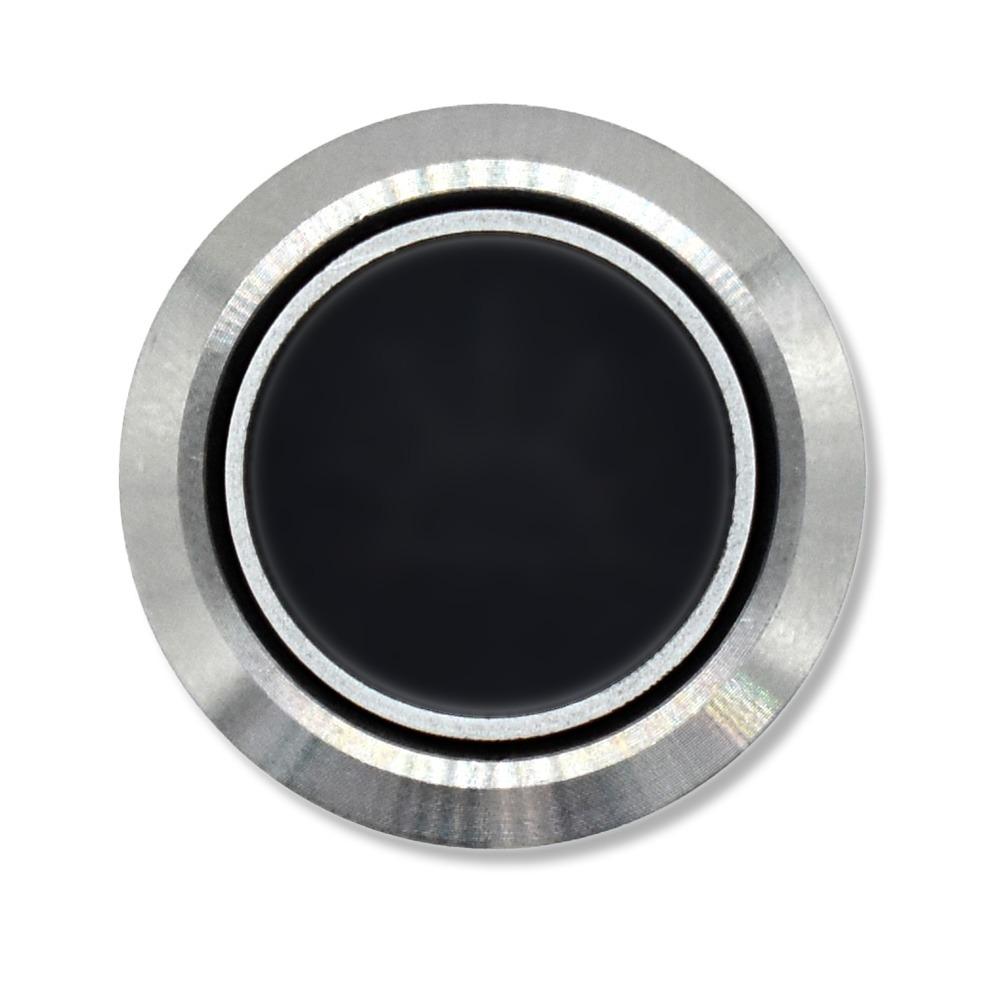

Bluewater Enterprises 9059-3113 22mm Electronic Inrush Switch, Off-On-On

Bluewater 22mm Electronic Inrush Switch, Off-On-On, Bright Blue/Green/Red LED

The Bluewater Enterprises 9059-3113 electronic inrush switch controls two loads from a single 22mm push button. Its off-on-on latching function turns on Load 1 with the first press, switches to Load 2 with the second press, and turns both loads off with the third press. The switch is designed for marine loads such as pumps and motors and provides inrush protection on both channels.

Bright LED indicators show the switch status at a glance: blue when off, green for Load 1, and red for Load 2. Each channel supports 10 amps at 12-24VDC, with a 20-amp maximum, while the inrush rating handles 120 amps for 120 seconds to help motors and pumps start without nuisance trips.

Built with a nickel-plated brass and SS316 stainless steel body, the 9059-3113 has an IP69K protection rating for demanding environments, including salt spray, washdowns, and submersion. The switch is also specified with 20g shock resistance, a mechanical life of 50,000 cycles, and an electrical life of 10,000 cycles.

Installation requires a 22mm mounting hole and a Bluewater 22mm Deutsch-style harness. The proprietary Deutsch-style connector supports plug-in installation and convenient switch replacement. The compatible 22mm harness, part number 9053-3914, is sold separately.

Features:

• Dual-Channel Off-On-On Function: Controls two loads from one latching push button, cycling from off to Load 1, Load 2, and then off.
• LED Status Indicators: Displays blue when off, green for Load 1, and red for Load 2.
• Per-Channel Output: Supports 10 amps per channel at 12-24VDC, with a 20-amp maximum.
• Inrush Protection: Handles 120-amp surges for 120 seconds to support starting pumps and motors.
• IP69K Protection: Sealed construction helps withstand salt spray, washdowns, and submersion.
• Durable Construction: Uses nickel-plated brass and SS316 stainless steel.
• Plug-In Installation: Uses a proprietary Deutsch-style connector for fast wiring and switch replacement.
• 22mm Mounting: Requires a 22mm mounting hole for installation.
• Service Life: Rated for 50,000 mechanical cycles and 10,000 electrical cycles.
