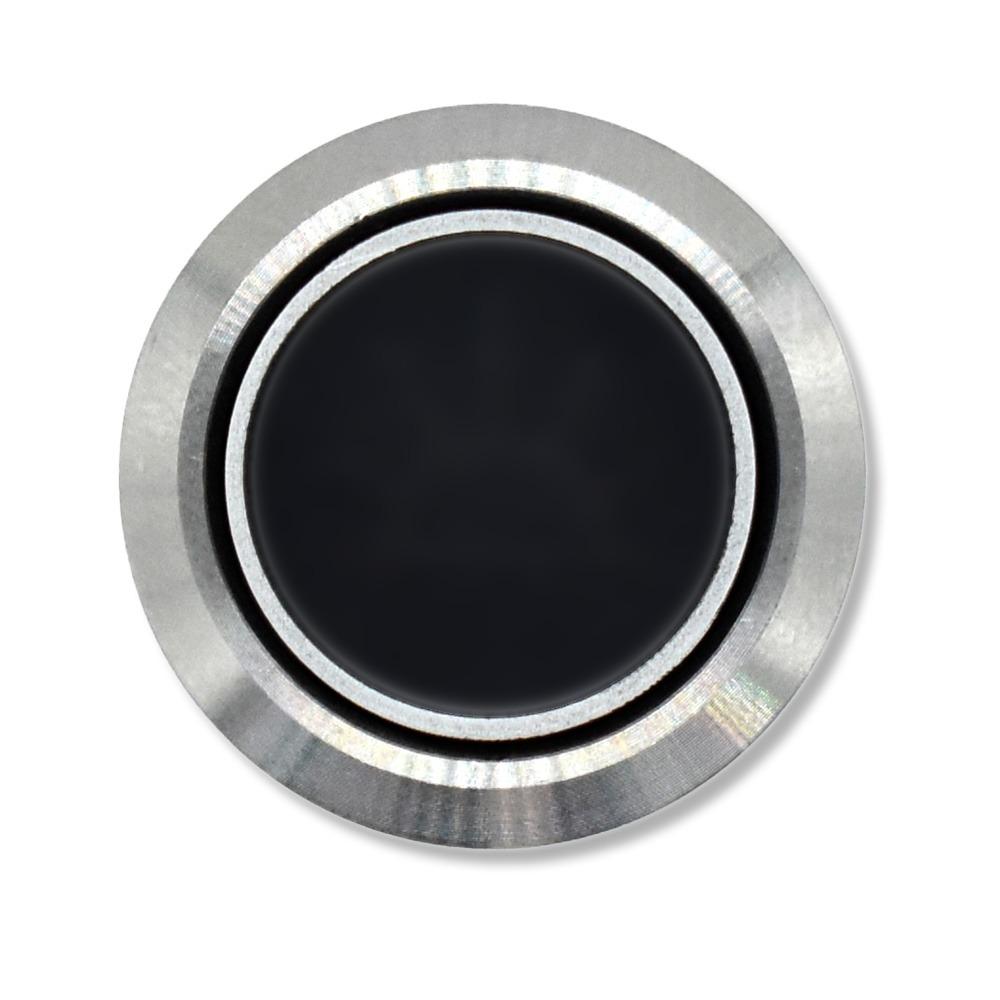

Bluewater Enterprises 9059-3114 22mm Electronic Inrush Nav/Anchor Light Switch

Bluewater 22mm Electronic Inrush Nav/Anchor Light Switch, Bright Blue/Green/Red LED

The Bluewater Enterprises 9059-3114 electronic push-button switch provides control of navigation and anchor lighting through a three-stage sequence. The first press turns on both the navigation and anchor lights, the second press leaves only the anchor light on, and the third press turns both lights off.

Bright LED indicators show the current status at a glance: green for navigation and anchor lights, red for anchor light only, and blue backlighting when the switch is off. The switch is rated for 10 amps per channel at 12–24 VDC, with a 20-amp maximum, and provides inrush protection for 120-amp surges lasting up to 120 seconds.

Designed for marine applications, the sealed IP69K housing uses nickel-plated brass and SS316 stainless steel. It is built to withstand salt spray, washdowns, and submersion, with salt-spray testing and 20g shock resistance stated for the 9059 Series. The switch is rated for 50,000 mechanical cycles and 10,000 electrical cycles.

Installation requires a 22mm mounting hole and a Bluewater 22mm Deutsch-style harness. The proprietary plug-in connector supports fast wiring and convenient switch replacement; the compatible 22mm harness is sold separately.

Features:

• Three-Stage Nav/Anchor Control: Cycles through off, navigation plus anchor lights, and anchor light only.
• LED Status Indicators: Displays blue when off, green for navigation and anchor lights, and red for anchor light only.
• Inrush Protection: Handles 120-amp surges for up to 120 seconds.
• Marine Construction: Nickel-plated brass and SS316 stainless steel body with IP69K protection.
• Electrical Rating: Supports 10 amps per channel at 12–24 VDC, with a 20-amp maximum.
• Plug-In Installation: Uses a proprietary Deutsch-style connector and requires a 22mm mounting hole.
• Service Life: Rated for 50,000 mechanical cycles and 10,000 electrical cycles.
