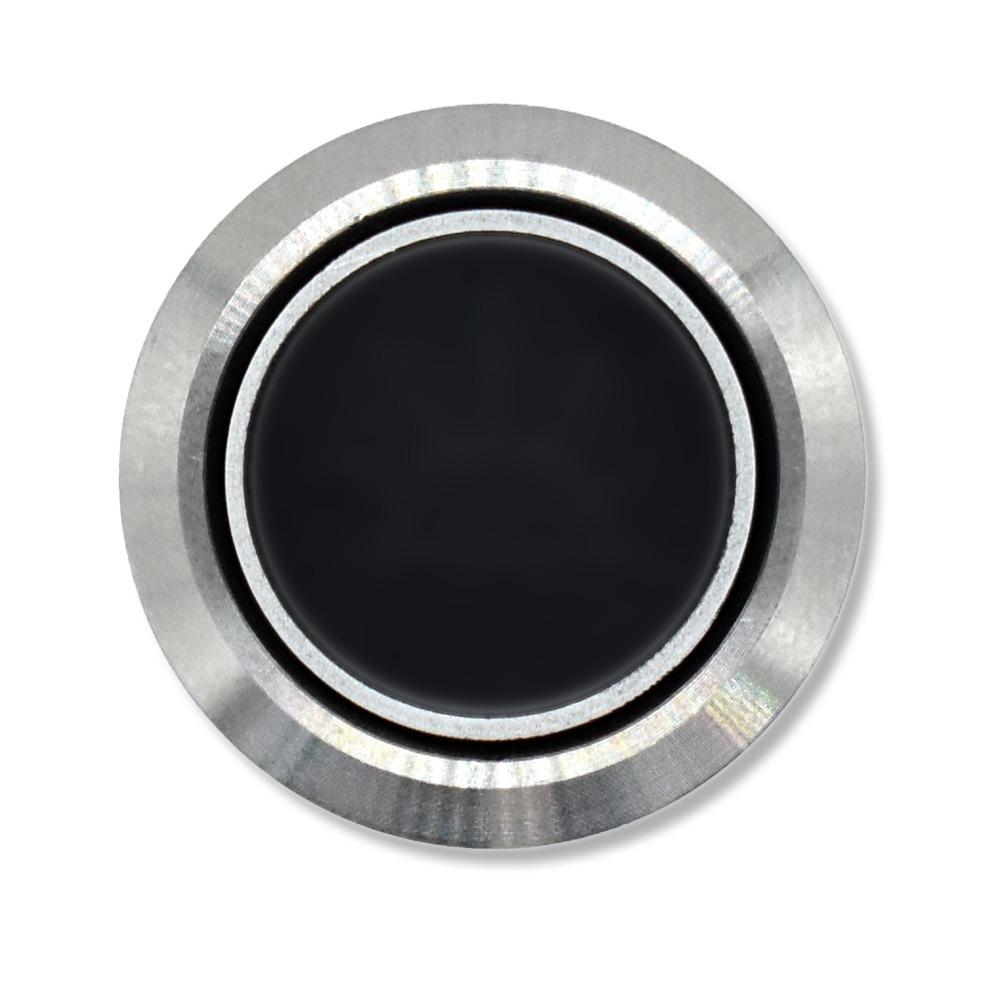

Bluewater Enterprises 9059-3115 22mm Electronic Inrush Switch, Off-On-On-Both

Bluewater 22mm Electronic Inrush Switch, Off-On-On-Both, Bright Blue/Green/Red/Yellow LED

The Bluewater Enterprises 9059-3115 electronic inrush switch provides four-state control for two loads from a single 22mm push button. Its latching Off-On-On-Both function lets you select Load 1, Load 2, both loads, or off, supporting convenient control of demanding marine loads such as pumps and motors.

Integrated LED indicators clearly identify the selected state: green for Load 1, red for Load 2, yellow when both loads are active, and blue when the switch is off. The switch is rated at 10A per channel at 12–24VDC, with a 20A maximum, and includes inrush protection rated at 120A for 120 seconds to support motor and pump startup.

Built for demanding environments, the switch features an IP69K protection rating and a sealed SS316 stainless steel body designed to withstand salt spray, washdowns, and submersion. Its nickel-plated brass and SS316 stainless steel construction is complemented by stated salt-spray testing and 20g shock resistance.

Installation uses a 22mm mounting hole and a proprietary Deutsch-style connector for plug-in wiring and switch replacement. A Bluewater 22mm Deutsch-style harness, part number 9053-3914, is sold separately. The switch is rated for 50,000 mechanical cycles and 10,000 electrical cycles.

Features:

• Four-State Control: Cycles through Load 1, Load 2, both loads, and off with one latching push button.
• LED Indicators: Uses green for Load 1, red for Load 2, yellow for both loads, and blue when off.
• Electrical Rating: Supports 10A per channel at 12–24VDC, with a 20A maximum.
• Inrush Protection: Handles 120A surges for 120 seconds to support pump and motor startup.
• Environmental Protection: IP69K-rated design with an SS316 stainless steel body.
• Construction: Made with nickel-plated brass and SS316 stainless steel.
• Installation: Fits a 22mm mounting hole and uses a proprietary Deutsch-style connector.
• Service Life: Rated for 50,000 mechanical cycles and 10,000 electrical cycles.
