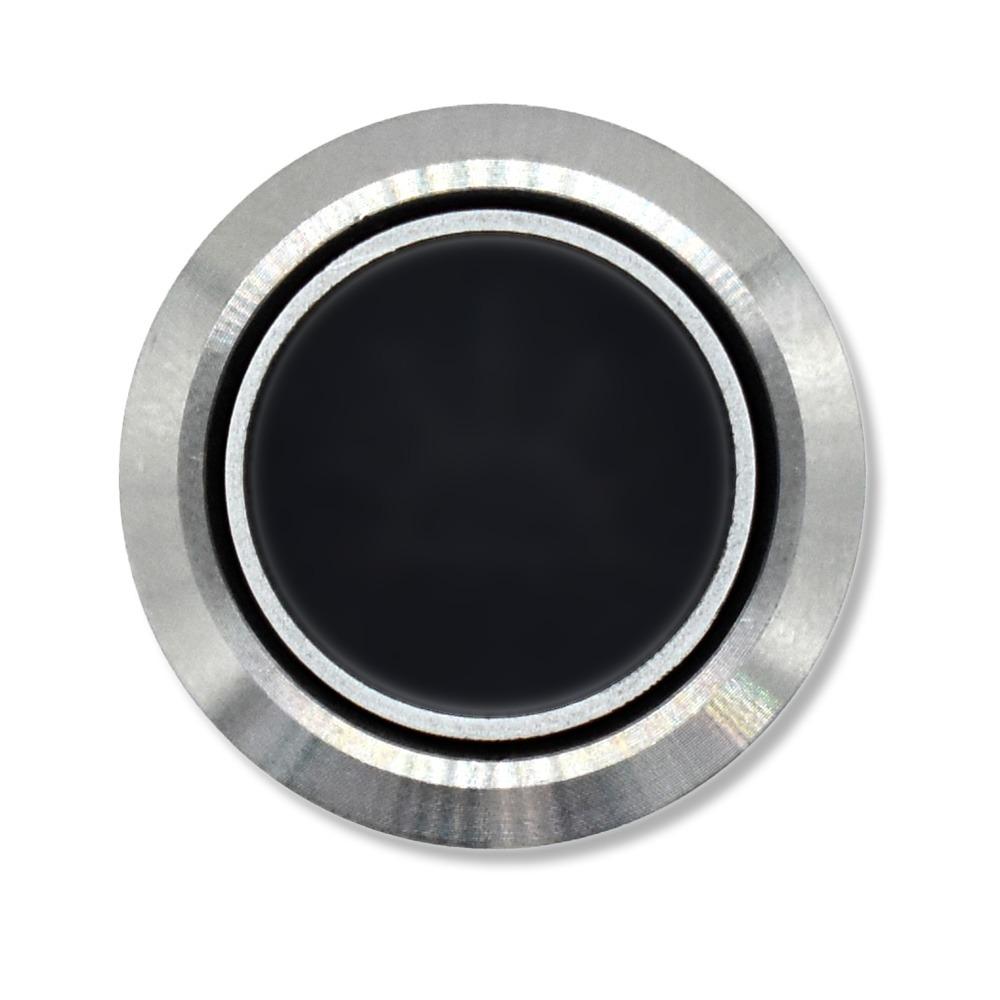

Bluewater Enterprises 9059-3116 22mm Electronic 80W PWM Dimmer Switch

Bluewater 22mm Electronic 80W PWM Dimmer Switch, Bright Blue/Red LED

The Bluewater Enterprises 9059-3116 is an electronic PWM dimmer switch designed for cabin, cockpit, and accent lighting. Its push-button control lets you press and hold to brighten, press and hold again to dim, or press once to turn the lights off. The switch supports loads up to 80 watts.

Bright LED indicators provide clear status feedback, showing blue when the lights are off and red when the lights are on. The sealed SS316 stainless steel body is rated IP69K and is designed to withstand salt spray, washdowns, and submersion in demanding marine environments.

Installation uses a proprietary Deutsch-style connector for fast, clean wiring and convenient switch replacement. Mounting requires a 22mm hole and a Bluewater 22mm Deutsch-style harness. The connector harness is sold separately.

The 9059-3116 combines nickel-plated brass and SS316 stainless steel construction with a rated mechanical life of 50,000 cycles and electrical life of 10,000 cycles. The 9059 Series also features salt-spray testing and 20g shock resistance for marine applications.

Features:

• Push-Button Dimming: Press and hold to brighten, press and hold again to dim, and press once to turn the lights off.
• 80W Maximum Load: Provides PWM dimming for lighting loads up to 80 watts.
• Bright LED Indicators: Blue backlight when off and red indicator when the lights are on.
• IP69K Protection: Sealed construction withstands salt spray, washdowns, and submersion.
• Marine Construction: Nickel-plated brass and SS316 stainless steel materials.
• Plug-In Installation: Proprietary Deutsch-style connector supports clean wiring and easy switch swaps.
• 22mm Mounting: Designed for installation in a 22mm mounting hole.
• Long Service Life: Rated for 50,000 mechanical cycles and 10,000 electrical cycles.
• Marine Durability: The 9059 Series features salt-spray testing and 20g shock resistance.
