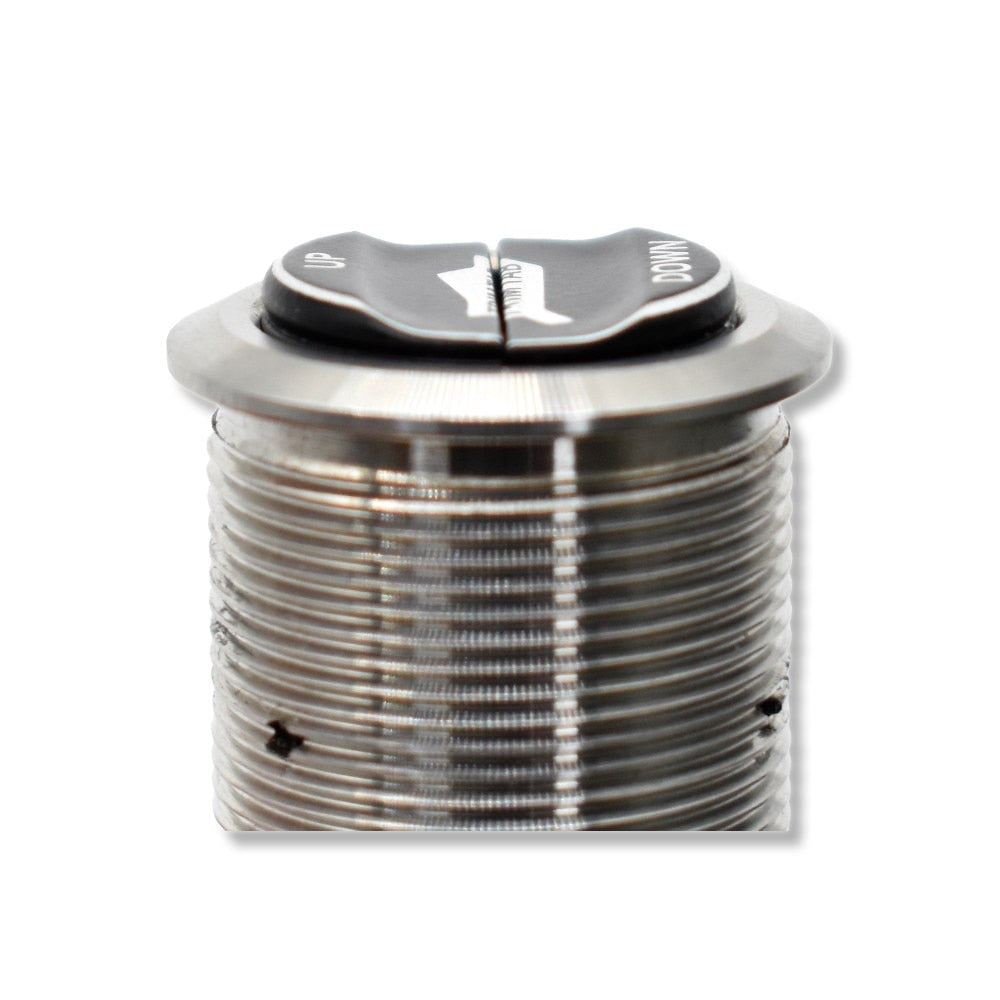

Bluewater Enterprises 9059-7014 22mm 2N1 Rocker Nav/Anchor Light Switch, +12V

Bluewater 22mm 2N1 Rocker Nav/Anchor Light Switch, +12V

The Bluewater Enterprises 9059-7014 is a 22mm 2N1 rocker switch designed to control navigation and anchor lighting through a single mounting cutout. Its latching operation provides two lighting selections: press the top to activate navigation and anchor lights, or press the bottom for anchor light only. Press either side again to switch the lights off.

Integrated LED feedback makes the selected function easy to identify. The switch features a blue backlight, green illumination when navigation and anchor lights are on, and red illumination when anchor-only mode is selected. It provides +12V switched output with dual channels rated at 10 amps per channel and 20 amps combined at 12VDC.

Built for demanding marine environments, the switch combines a nickel-plated brass and SS316 stainless steel construction with an IP69K protection rating. Its sealed design is specified to withstand salt spray, washdowns, and submersion. The switch is also rated for 50,000 mechanical cycles and 10,000 electrical cycles.

Installation requires a 22mm mounting hole and a Bluewater 22mm Deutsch-style harness. The compatible 22mm harness is sold separately. This switch is intended for +12V navigation and anchor light control applications.

Features:

• Dual Lighting Control: Top position activates navigation and anchor lights; bottom position activates anchor light only.
• Latching Operation: Press either side again to turn the selected lights off.
• LED Feedback: Blue backlight, green for navigation and anchor operation, and red for anchor-only operation.
• Dual Outputs: Provides +12V switched output rated at 10 amps per channel and 20 amps combined at 12VDC.
• Marine Construction: Nickel-plated brass and SS316 stainless steel construction.
• IP69K Protection: Sealed design specified to withstand salt spray, washdowns, and submersion.
• Mounting: Requires a 22mm mounting hole.
• Connector: Uses a Bluewater 22mm Deutsch-style harness.
• Durability: Rated for 50,000 mechanical cycles and 10,000 electrical cycles.
