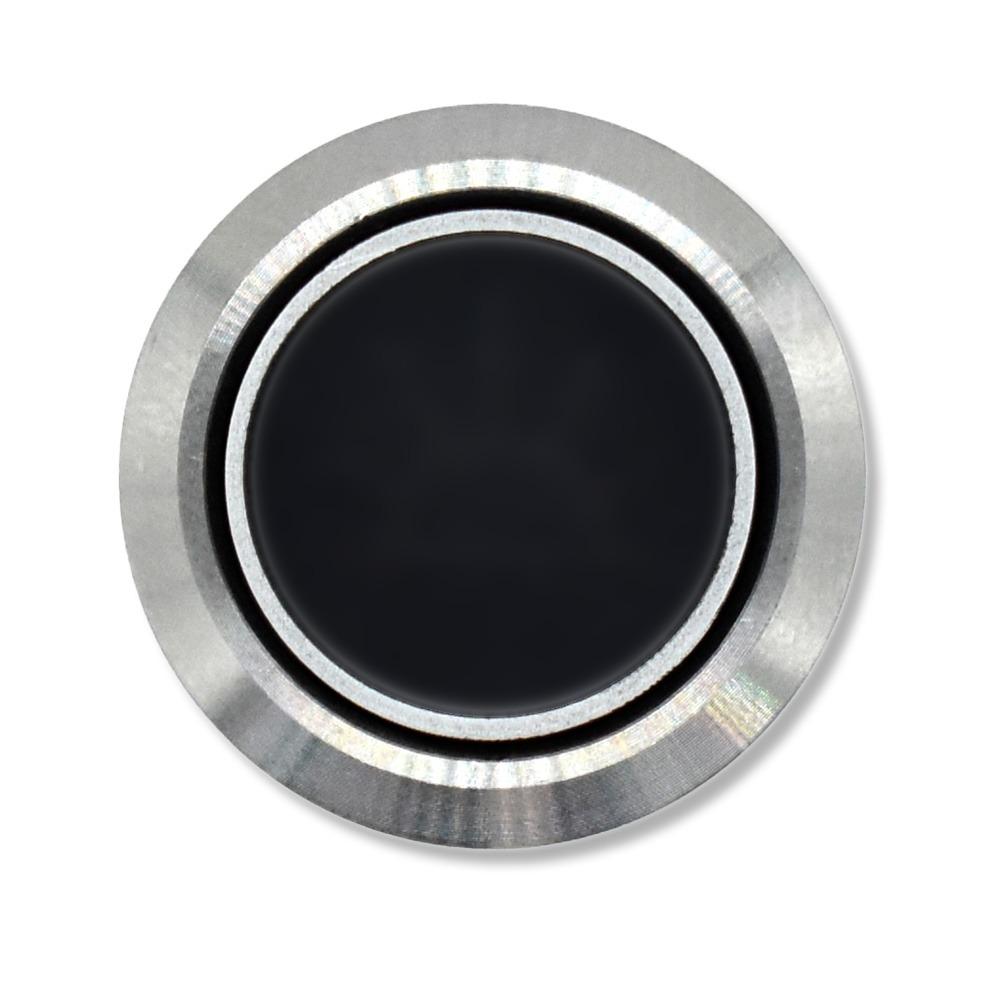

Bluewater Enterprises 9060-1113 22mm Programmable Breaker Switch with Blue/Red LED

Bluewater 22mm Programmable Breaker Switch, Off/On, Blue/Red LED

The Bluewater Enterprises 9060-1113 is a 22mm electronic Off/On latching switch with a built-in programmable circuit breaker. Press once to turn the circuit on and press again to turn it off. The integrated breaker provides eight selectable trip settings from 0 to 20 amps, allowing the trip point to be matched to the load without requiring a separate breaker.

Designed for pumps, lighting and mission-critical equipment, the 9060-1113 supports 20 amps at 12–24VDC. Its inrush protection handles 120-amp surges for up to 120 seconds, helping pumps and motors start without nuisance trips. Blue backlighting provides visibility in low-light conditions and changes to red when the circuit is on.

The switch features a sealed SS316 stainless steel body with an IP69K protection rating for resistance to salt spray, washdowns and submersion. Construction combines nickel-plated brass and SS316 stainless steel. The switch is rated for 50,000 mechanical cycles and 10,000 electrical cycles.

Installation requires a 22mm mounting hole in material up to 6mm thick and connection to a Bluewater 22mm Deutsch-style harness. The compatible 22mm harness is sold separately. A California Proposition 65 warning applies: Cancer and Reproductive Harm—www.P65Warnings.ca.gov.

Features:

• Latching Off/On Function: Press once for on and press again for off.
• Programmable Circuit Breaker: Eight selectable trip settings from 0 to 20 amps.
• Electrical Rating: Supports 20 amps at 12–24VDC.
• Inrush Protection: Handles 120-amp surges for up to 120 seconds.
• LED Feedback: Blue backlight when off and red illumination when on.
• Sealed Construction: SS316 stainless steel body with an IP69K protection rating.
• Durability: Rated for 50,000 mechanical cycles and 10,000 electrical cycles.
• Mounting: Requires a 22mm hole in material up to 6mm thick.
• Connector: Uses a Bluewater 22mm Deutsch-style harness.
