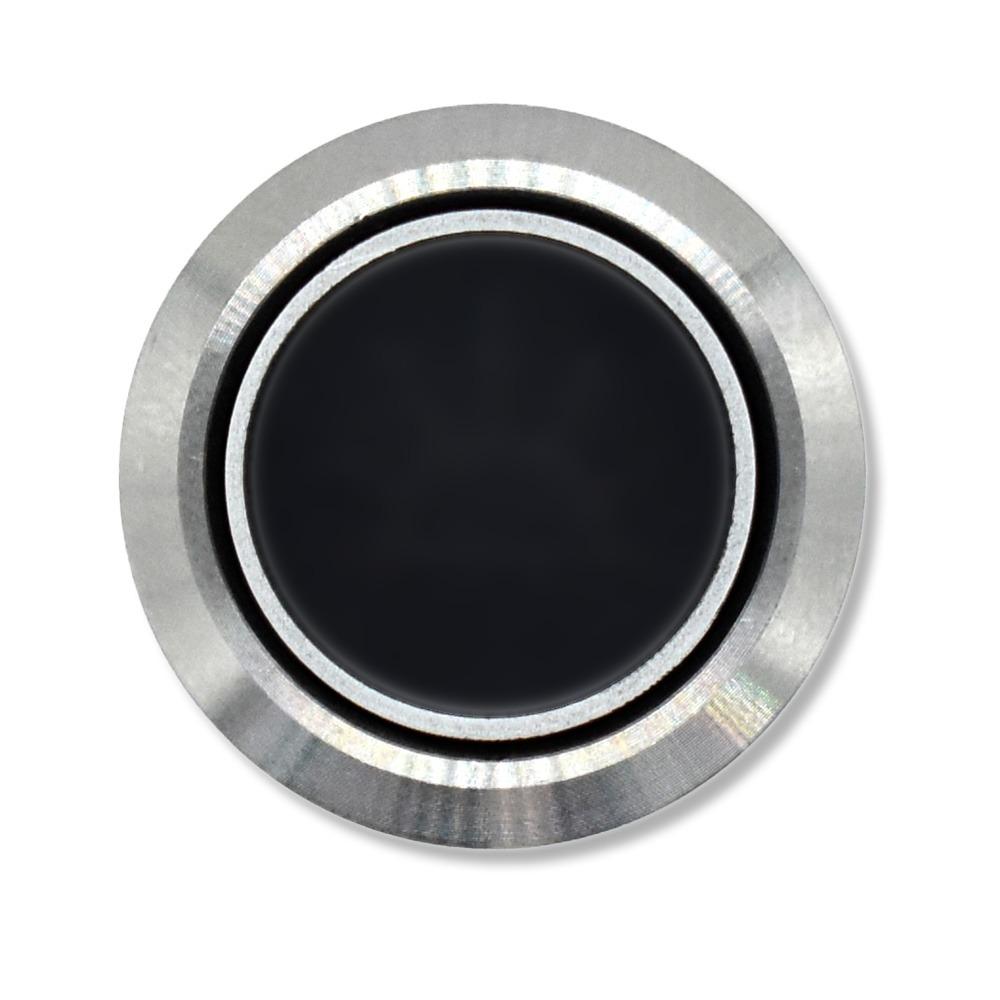

Bluewater Enterprises 9060-2113 22mm Programmable Breaker Switch, Off-(On) Momentary, Blue/Red LED

Bluewater 22mm Programmable Breaker Switch, Off-(On) Momentary, Blue/Red LED

The Bluewater Enterprises 9060-2113 is a 22mm off-(on) momentary electronic switch with a built-in programmable circuit breaker. The circuit remains on only while the button is held, making this switch suitable for momentary loads such as horns, spotlights, pumps, lighting and other equipment.

Eight selectable breaker settings from 0 to 20 amps allow the trip point to be matched to the load. The switch also provides inrush protection for surges up to 120 amps for 120 seconds, helping pumps and motors start without nuisance trips. Programming is performed with a simple press-and-hold operation.

A blue backlight provides visibility in low-light conditions and changes to red while the button is pressed. The sealed SS316 stainless steel body has an IP69K protection rating for resistance to salt spray, washdowns and submersion. The construction combines nickel-plated brass and SS316 stainless steel.

Installation requires a 22mm mounting hole in material up to 6mm thick. The switch connects through a Bluewater 22mm Deutsch-style harness. The Bluewater Enterprises 9060-2113 is rated at 20 amps at 12–24 VDC and is specified for 50,000 mechanical cycles and 10,000 electrical cycles.

Features:

• Momentary Action: Off-(on) function keeps the circuit on only while the button is held.
• Programmable Breaker: Eight selectable trip settings from 0 to 20 amps.
• Inrush Protection: Handles surges up to 120 amps for 120 seconds.
• LED Feedback: Blue backlight for visibility that changes to red while pressed.
• Sealed Construction: SS316 stainless steel body with an IP69K protection rating.
• Electrical Rating: Rated at 20 amps at 12–24 VDC.
• Service Life: Specified for 50,000 mechanical cycles and 10,000 electrical cycles.
• Mounting: Fits a 22mm hole in material up to 6mm thick.
• Connector: Uses a Bluewater 22mm Deutsch-style harness.
