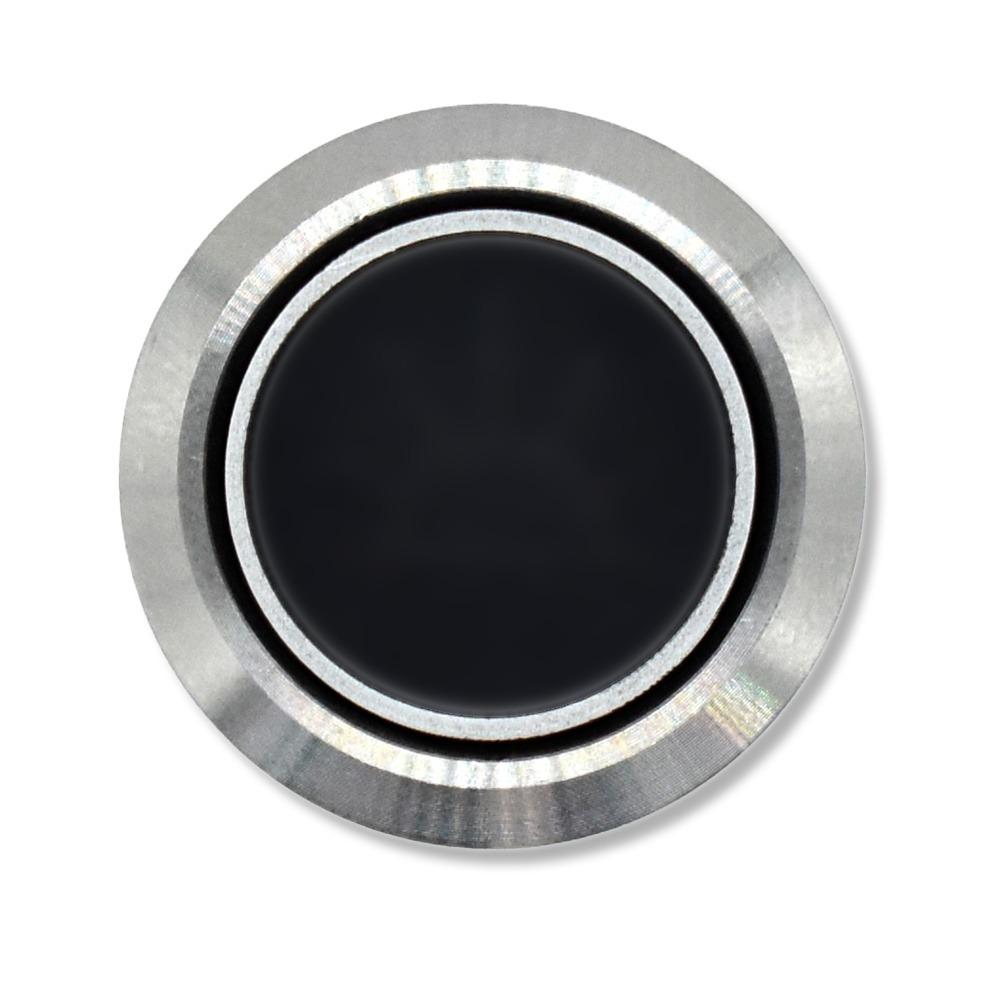

Bluewater Enterprises 9060-3114 22mm Programmable Breaker Nav/Anchor Light Switch

Bluewater 22mm Programmable Breaker Nav/Anchor Light Switch, Blue/Green/Red LED

The Bluewater Enterprises 9060-3114 combines a navigation and anchor light control with a programmable electronic circuit breaker in one 22mm push-button switch. Its three-step operation turns on both navigation and anchor lights, switches to anchor light only, or turns both functions off.

The built-in breaker provides eight selectable trip settings from 0 to 20A, configured with a press-and-hold operation. The switch handles inrush surges up to 120A for 120 seconds, helping pumps and motors start without nuisance trips. Current capacity is 10A per channel at 12–24VDC, with a 20A maximum.

Integrated LED feedback identifies the selected function at a glance: green indicates navigation and anchor lights, red indicates anchor light only, and blue provides a backlight when the switch is off. The sealed SS316 stainless steel body has an IP69K protection rating for resistance to salt spray, washdowns, and submersion.

Installation requires a 22mm mounting hole in material up to 6mm thick and connection to a Bluewater 22mm Deutsch-style harness. The switch uses nickel-plated brass and SS316 stainless steel construction, with a rated mechanical life of 50,000 cycles and electrical life of 10,000 cycles.

Features:

• Nav/Anchor Control: Three-step switching provides navigation and anchor lights, anchor light only, or both functions off.
• Programmable Breaker: Eight selectable trip settings from 0 to 20A.
• Inrush Protection: Handles 120A surges for 120 seconds.
• LED Feedback: Green indicates nav and anchor lights, red indicates anchor light only, and blue provides an off-state backlight.
• Electrical Capacity: Supports 10A per channel at 12–24VDC, with a 20A maximum.
• Water Protection: IP69K-rated sealed construction withstands salt spray, washdowns, and submersion.
• Construction: Nickel-plated brass and SS316 stainless steel body.
• Service Life: Rated for 50,000 mechanical cycles and 10,000 electrical cycles.
• Installation: Fits a 22mm mounting hole in material up to 6mm thick.
• Connector: Uses a Bluewater 22mm Deutsch-style harness.
