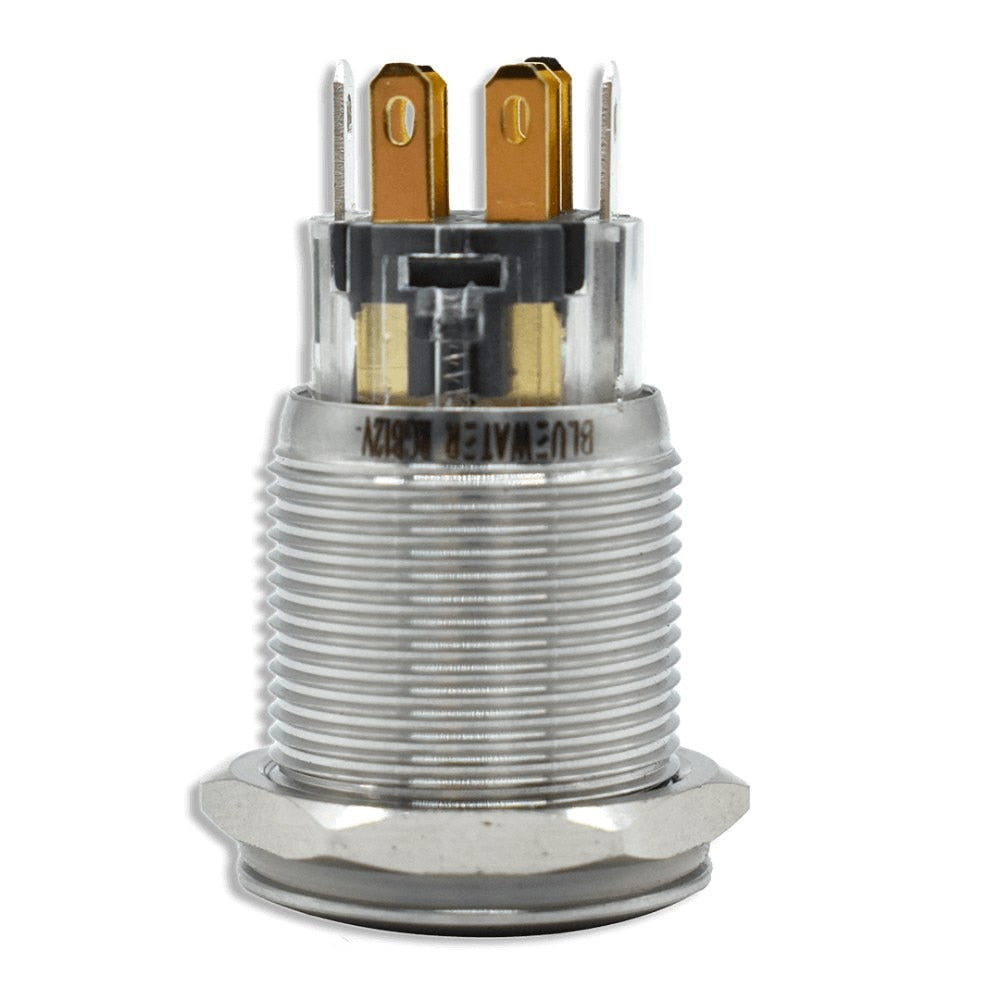

Bluewater Enterprises 9150-1100 19mm Mechanical Push Button Switch, On/Off, Translucent Blue Lit Face, 5A

Bluewater 19mm Mechanical Push Button Switch, On/Off, Translucent Blue Lit Face, 5A

The Bluewater Enterprises 9150-1100 is a 19mm mechanical push button switch with a latching on/off function. Push once to turn the circuit on and push again to turn it off. Its fully translucent face is illuminated across the entire button for improved visibility in low-light conditions.

The integrated LED provides status feedback through color: the button illuminates blue when inactive and changes to red when the circuit is active. The switch has a 5A current rating and a low-profile design intended for tight dashboards and panels on boats, RVs, and vehicles.

Built with a nickel-plated brass and stainless steel construction, the switch is designed for marine use. Its sealed IP67 design includes an integrated gasket to help protect against water exposure in wet environments.

Installation requires a 19mm mounting hole in material up to 1/4 inch thick. The switch is rated for 500,000 mechanical cycles and 10,000 electrical cycles.

Features:

• Latching On/Off: Push once for on and push again for off.
• Fully Translucent Face: Illuminated lens lights the entire button for visibility at night.
• LED Status Feedback: Blue illumination indicates inactive status, while red indicates an active circuit.
• Marine-Grade Construction: Nickel-plated brass and stainless steel materials provide corrosion-resistant construction.
• IP67 Waterproof Design: Sealed switch includes an integrated gasket for wet marine environments.
• 5A Current Rating: Supports circuits rated up to 5A.
• Low-Profile Design: Intended for tight dashboards and panels on boats, RVs, and vehicles.
• Mounting: Requires a 19mm hole in material up to 1/4 inch thick.
• Service Life: Rated for 500,000 mechanical cycles and 10,000 electrical cycles.
