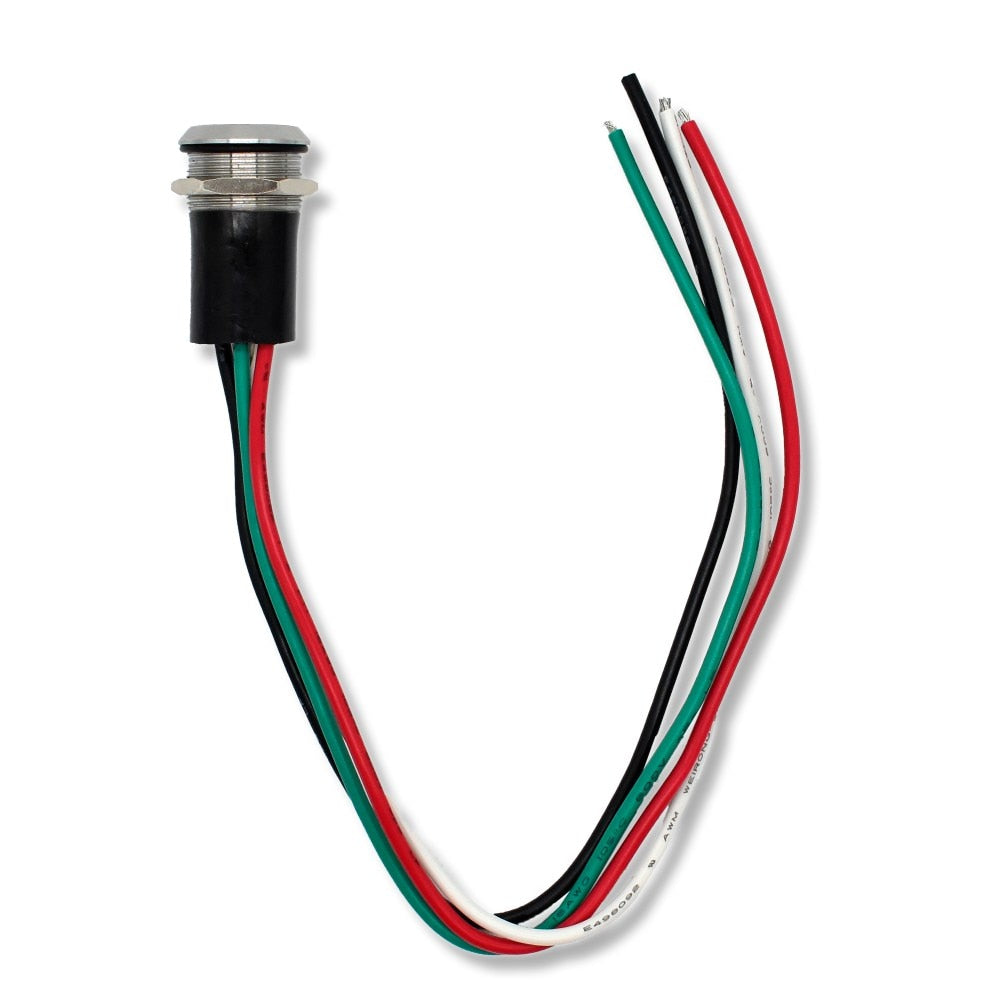

Bluewater Enterprises 9150-1100-506 19mm Pre-Wired Mechanical Push Button Switch

Bluewater 19mm Pre-Wired Mechanical Push Button Switch, On/Off, Translucent Blue Ring, 6" Leads

The Bluewater Enterprises 9150-1100-506 is a 19mm mechanical push button switch with latching on/off operation. Press once to switch the circuit on and press again to switch it off. Its low-profile design is suited to tight dashboards and panels, while the metal actuator and translucent blue LED ring provide a clear, functional control interface.

The illuminated ring provides visual status feedback, showing blue illumination when the switch is inactive and changing to red when the circuit is active. The switch is rated at 10A at 12VDC and uses a 5-wire, epoxy-sealed harness with 6-inch leads for simplified wiring.

Designed for wet marine environments, the switch features an IP67 protection rating and an integrated gasket. The nickel-plated brass and stainless steel construction supports use on boats, RVs, and vehicles. Installation requires a 19mm mounting hole in material up to 6mm thick, with color-coded leads to help simplify the wiring process.

The Bluewater Enterprises 9150-1100-506 is specified for a mechanical life of 500,000 cycles and an electrical life of 10,000 cycles. Its pre-wired configuration, illuminated status ring, and sealed construction make it a practical choice for panel-mounted on/off control.

Features:

• Latching On/Off: Press once for on and again for off.
• Illuminated Status Ring: Translucent blue LED ring shows switch status at a glance.
• LED Feedback: Blue illumination indicates inactive status, while red indicates an active circuit.
• Pre-Wired Harness: Factory-sealed 5-wire harness includes 6-inch leads.
• Water Resistance: IP67-rated sealed design with an integrated gasket.
• Switch Rating: Rated at 10A at 12VDC.
• Construction: Nickel-plated brass and stainless steel materials.
• Mounting: Requires a 19mm hole in material up to 6mm thick.
• Service Life: Mechanical life rated at 500,000 cycles and electrical life rated at 10,000 cycles.
