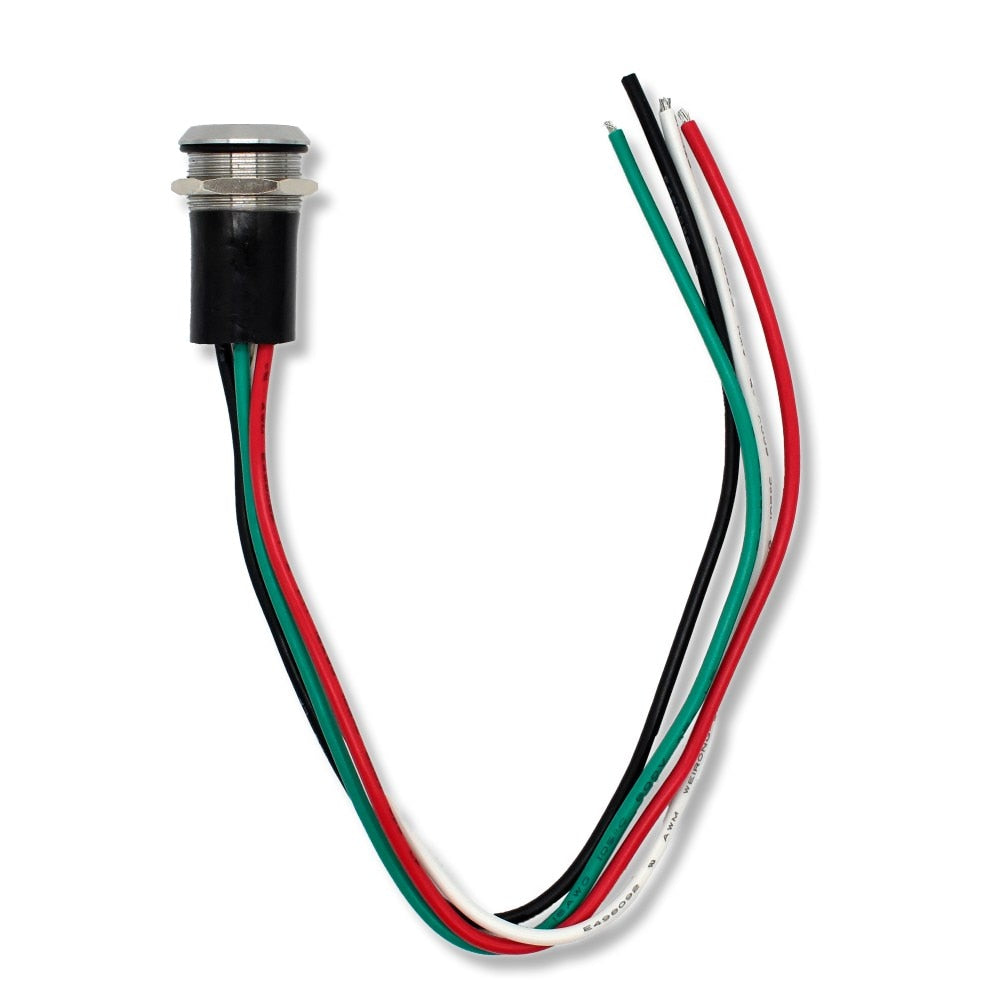

Bluewater Enterprises 9150-1130-506 19mm Pre-Wired Mechanical Push Button Switch

Bluewater 19mm Pre-Wired Mechanical Push Button Switch, On/Off, Black Body, Translucent Blue Ring, 6" Leads

The Bluewater Enterprises 9150-1130-506 is a 19mm mechanical push button switch with latching on/off operation, a black body, and a translucent blue LED ring. Press once to turn the switch on and press again to turn it off. The low-profile design is suited to dashboards and panels on boats, RVs, and vehicles.

The illuminated ring provides a clear status indication, showing blue when inactive and red when active. The switch is rated for 10A at 12VDC and features a 5-wire, epoxy-sealed harness with 6-inch leads. Color-coded wiring helps simplify installation.

Designed for wet marine environments, the sealed switch has an IP67 protection rating and an integrated gasket. Installation requires a 19mm mounting hole in material up to 6mm thick. The switch has a stated mechanical life of 500,000 cycles and an electrical life of 10,000 cycles.

This Bluewater pre-wired push button switch combines latching control, illuminated status feedback, sealed wiring, and a compact panel-mount format for suitable applications where dependable on/off switching is required.

Features:

• Latching On/Off: Push once for on and again for off.
• Black Body: Low-profile black finish for dashboards and panels.
• Illuminated Ring: Translucent blue LED ring shows blue when inactive and red when active.
• Pre-Wired Harness: Factory-sealed 5-wire harness with 6-inch leads.
• IP67 Protection: Sealed design with an integrated gasket for wet marine environments.
• Electrical Rating: Rated at 10A @ 12VDC.
• Installation: Requires a 19mm mounting hole in material up to 6mm thick.
• Service Life: Mechanical life of 500,000 cycles and electrical life of 10,000 cycles.
