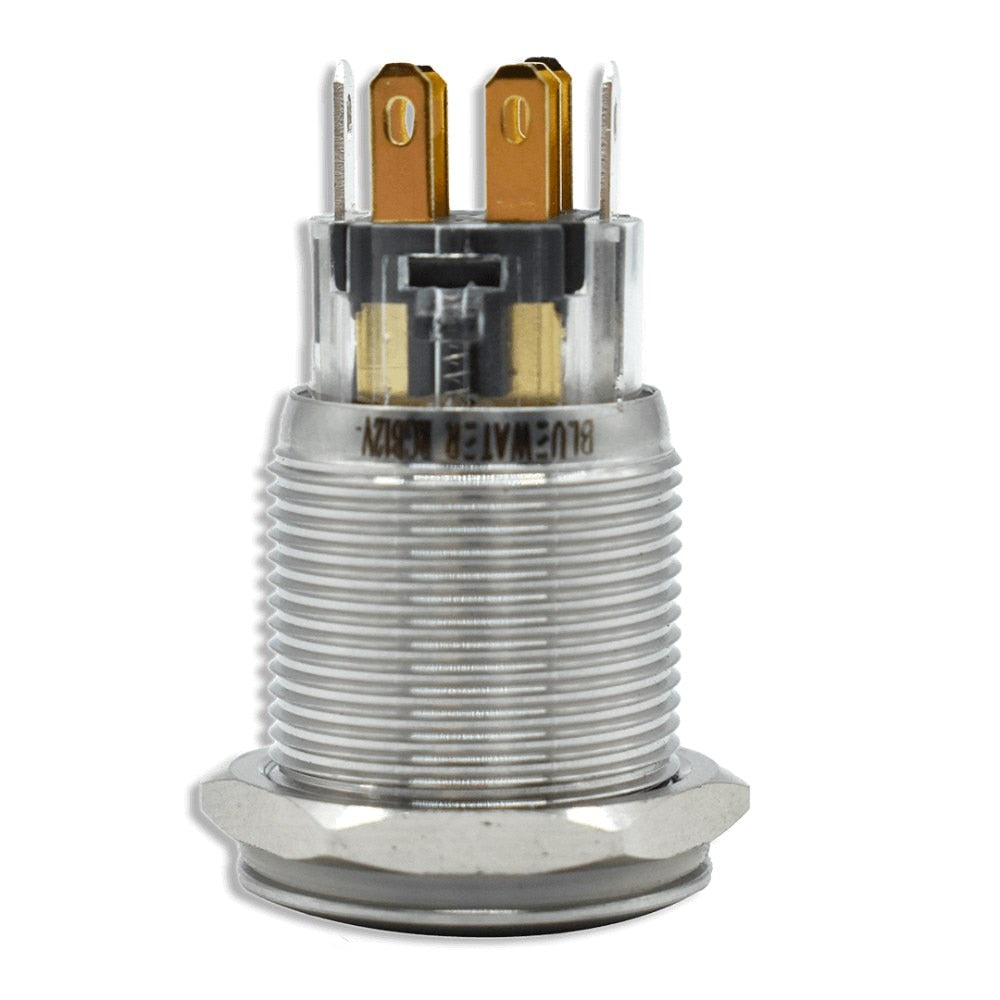

Bluewater Enterprises 9150-2100 19mm Momentary Push Button Switch with Translucent Blue Lit Face

Bluewater 19mm Mechanical Push Button Switch, Momentary, Translucent Blue Lit Face, 5A

The Bluewater Enterprises 9150-2100 is a 19mm mechanical momentary push button switch designed for marine, RV, and vehicle dashboards and panels. Its momentary action keeps the circuit on only while the button is held, making it suitable for applications requiring temporary activation.

The fully translucent face illuminates the entire button for improved visibility in low-light conditions. Blue illumination indicates an inactive circuit, while the face switches to red when the circuit is active, providing clear visual feedback during operation.

Built with a nickel-plated brass and stainless steel construction, this low-profile switch is designed for use in wet marine environments. An integrated gasket and IP67 protection rating help seal the switch against water and dust when properly installed.

Installation requires a 19mm mounting hole in material up to 6mm thick. The switch has a 5A current rating, a mechanical life of 500,000 cycles, and an electrical life of 10,000 cycles.

Features:

• Momentary Action: Circuit remains on only while the button is held.
• Illuminated Translucent Face: Full-face lighting improves visibility at night or in low-light conditions.
• LED Feedback: Blue illumination indicates inactive status, while red illumination indicates an active circuit.
• Marine-Ready Construction: Nickel-plated brass and stainless steel materials provide corrosion-resistant construction.
• IP67 Protection: Sealed design with an integrated gasket helps protect against water and dust.
• 5A Current Rating: Supports electrical applications rated up to 5 amps.
• Compact Installation: Mounts through a 19mm hole in material up to 6mm thick.
• Long Service Life: Rated for 500,000 mechanical cycles and 10,000 electrical cycles.
