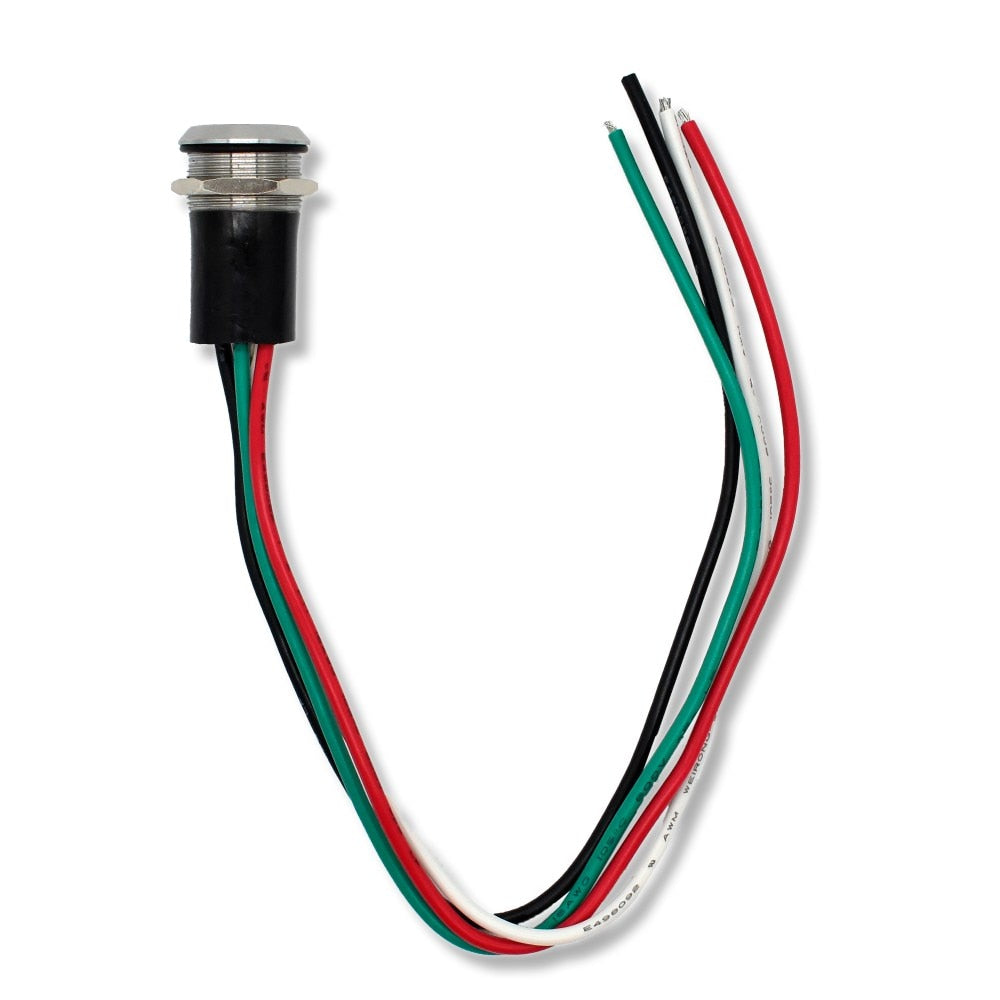

Bluewater Enterprises 9150-2100-506 19mm Pre-Wired Momentary Push Button Switch

Bluewater 19mm Pre-Wired Mechanical Push Button Switch, Momentary, Translucent Blue Ring, 6" Leads

The Bluewater Enterprises 9150-2100-506 is a 19mm pre-wired mechanical momentary push button switch with a metal actuator and translucent blue LED ring. Its momentary action keeps the circuit on only while the button is held, making it suitable for control applications requiring temporary activation.

The illuminated ring provides visual status feedback at a glance. The ring glows blue when the switch is inactive and changes to red when the circuit is active. The factory-sealed five-wire harness includes 6-inch leads, while color-coded wiring helps simplify installation.

Designed for wet marine environments, this switch features an IP67 sealed construction with an integrated gasket. Its nickel-plated brass and stainless steel materials support use in low-profile dashboards and panels on boats, RVs and vehicles.

Installation requires a 19mm mounting hole in material up to 6mm thick. The switch is rated for 10 amps at 12 VDC, with a mechanical life of 500,000 cycles and an electrical life of 10,000 cycles.

Features:

• Momentary Action: Keeps the circuit on only while the button is held.
• Illuminated Ring: Translucent blue LED ring provides visible switch status.
• LED Feedback: Blue illumination indicates inactive status and red illumination indicates active status.
• Pre-Wired Harness: Factory-sealed five-wire harness includes 6-inch leads.
• IP67 Protection: Sealed design with an integrated gasket for wet marine environments.
• Switch Rating: Rated at 10 amps at 12 VDC.
• Construction: Nickel-plated brass and stainless steel materials.
• Mounting: Requires a 19mm hole in material up to 6mm thick.
• Service Life: Provides a mechanical life of 500,000 cycles and an electrical life of 10,000 cycles.
