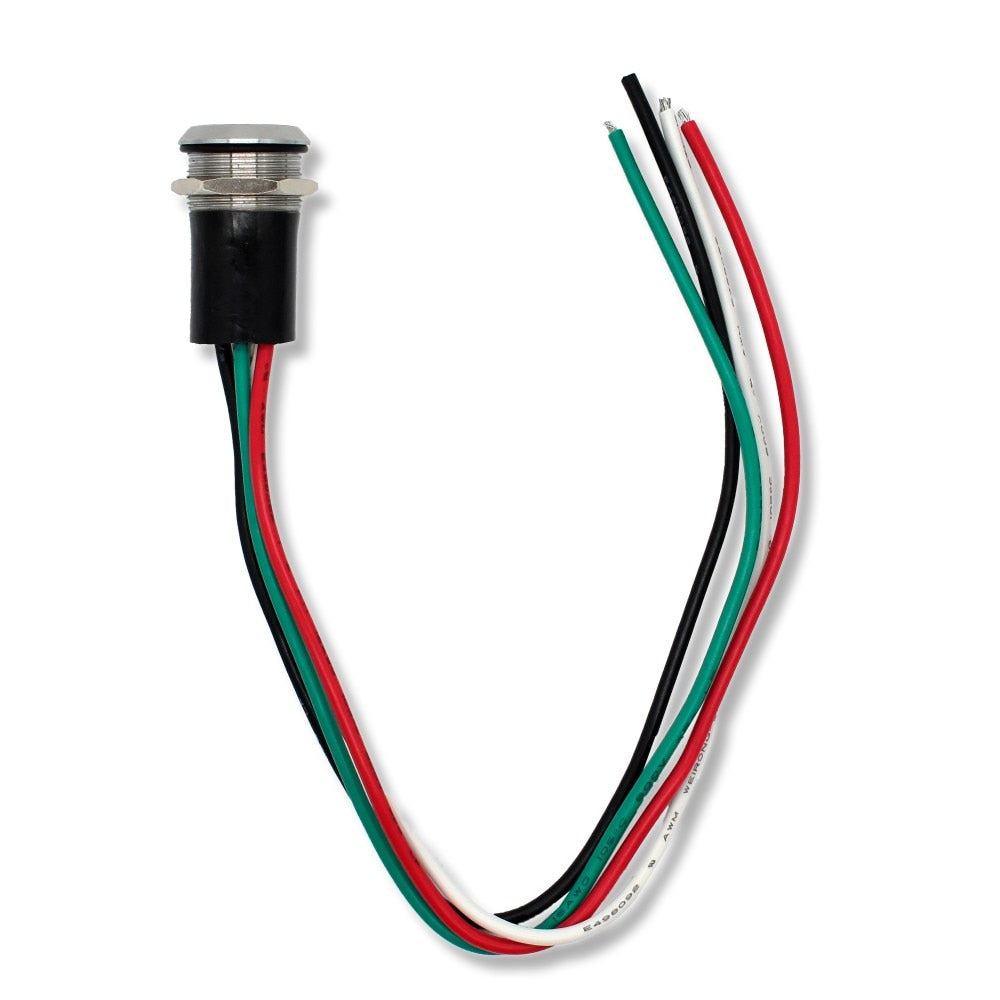

Bluewater Enterprises 9150-2130-506 19mm Pre-Wired Momentary Push Button Switch

Bluewater 19mm Pre-Wired Mechanical Push Button Switch, Momentary, Black Body, Translucent Blue Ring, 6" Leads

The Bluewater Enterprises 9150-2130-506 is a 19mm pre-wired mechanical momentary push button switch designed for dashboards and panels. It features a black body with a translucent blue LED ring that indicates switch status, displaying blue when inactive and red when active. The momentary action keeps the circuit on only while the button is held.

This switch includes a factory-sealed, five-wire harness with 6-inch leads. The color-coded wiring is designed to simplify installation, while the epoxy-sealed construction and integrated gasket provide IP67 protection for wet marine environments. The switch is rated at 10 amps at 12 volts DC.

Installation requires a 19mm mounting hole in material up to 1/4 inch thick. The low-profile design is intended for use in tight dashboards and panels on boats, RVs and vehicles. Its black finish blends with dark mounting surfaces, and the illuminated ring provides status visibility at a glance.

The Bluewater 9150-2130-506 is specified for a mechanical life of 500,000 cycles and an electrical life of 10,000 cycles. Its combination of momentary operation, pre-wired leads and sealed construction supports straightforward installation in applications requiring a compact push button switch.

Features:

• Momentary Action: Circuit stays on only while the button is held.
• Black Body: Black finish blends with dark dashboards and panels.
• Illuminated Ring: Translucent blue LED ring displays blue when inactive and red when active.
• Pre-Wired Harness: Factory-sealed five-wire harness includes 6-inch leads.
• Water Protection: IP67-rated sealed design with an integrated gasket.
• Switch Rating: Rated at 10 amps at 12 volts DC.
• Mounting: Requires a 19mm hole in material up to 1/4 inch thick.
• Mechanical Life: Specified for 500,000 cycles.
• Electrical Life: Specified for 10,000 cycles.
