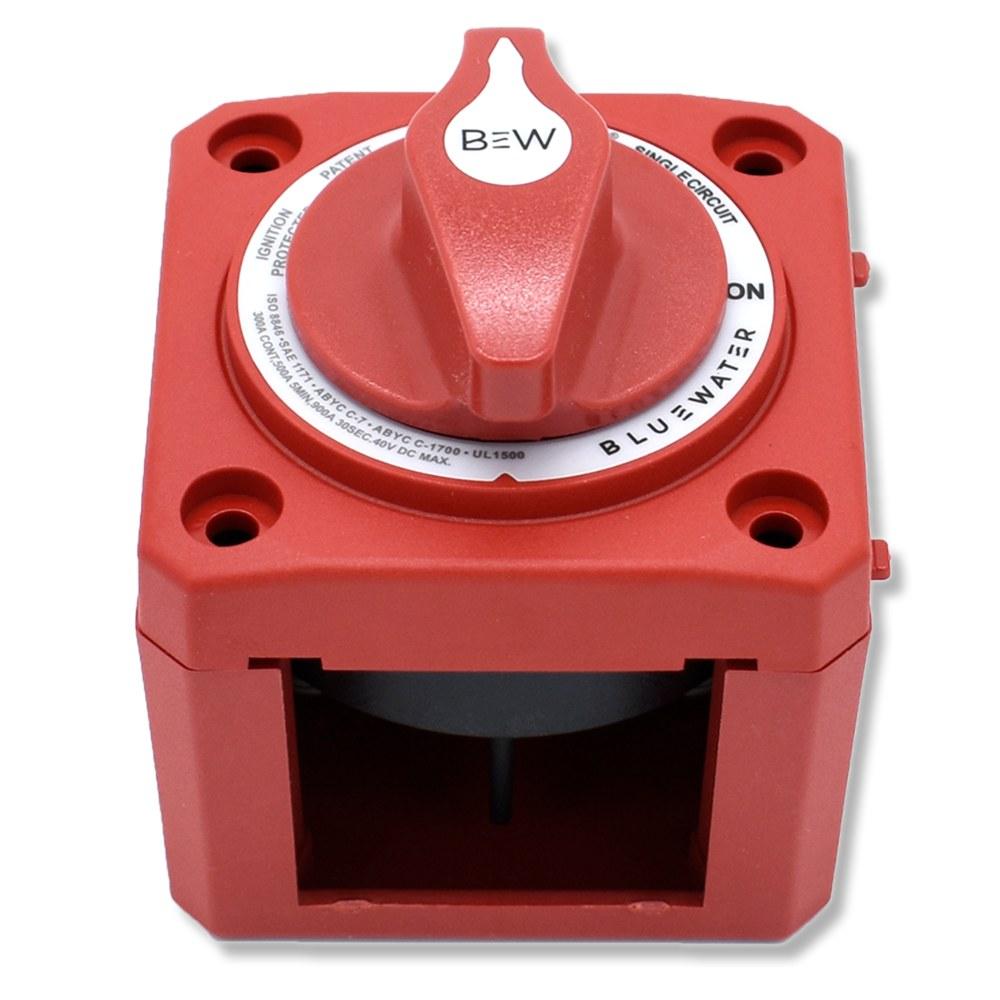

Bluewater Enterprises 9800-006-11 On/Off Battery Switch, 300A, Surface Mount, Red

Bluewater On/Off Battery Switch, 300A, Surface Mount with Base, Red

Bluewater Enterprises 9800-006-11 On/Off Battery Switch provides dependable single-circuit power control for marine, RV, and other 12- to 40-volt DC electrical systems. Designed to isolate a battery or equipment when it is not in use, this switch helps reduce unwanted battery drain and provides a straightforward way to disconnect power during service or storage.

Built with non-corrosive marine-grade metals and reinforced polycarbonate, the Bluewater battery switch is designed for demanding environments. It supports a 300A continuous rating, 500A intermittent rating for up to 5 minutes, and 900A cranking rating for up to 30 seconds. The ignition-protected design makes it suitable for gasoline-powered boats when installed according to applicable requirements.

This surface-mount battery disconnect switch includes a mounting base for convenient installation and accepts cable sizes up to 4/0 AWG. Its textured red knob provides a secure grip and allows the switch position to be confirmed by touch. Clear international ON/OFF and icon labels support quick identification in engine compartments, battery compartments, and service areas.

Specifications
Positions: On / Off
Continuous Rating: 300A DC
Intermittent Rating: 500A DC for up to 5 minutes
Cranking Rating: 900A DC for up to 30 seconds
Maximum Voltage: 40V DC
Cable Size: Up to 4/0 AWG
Mounting: Surface mount with base
Ignition Protected: Yes
Knob Color: Red

Proposition 65 Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features:

• Single-circuit control: Isolates a battery or electrical equipment when not in use to help prevent battery drain.
• Heavy-duty electrical rating: Supports 300A continuous, 500A intermittent, and 900A cranking service.
• Ignition protected: Suitable for gasoline-powered boats when properly installed.
• Surface-mount design: Includes a base for convenient mounting.
• Textured red knob: Provides tactile feedback and clear visual identification of the switch position.
• Marine-ready construction: Uses non-corrosive marine-grade metals and reinforced polycarbonate.
• High-capacity cable compatibility: Accepts cable sizes up to 4/0 AWG.
• Clear labeling: Includes international ON/OFF and icon labels for easy operation.
