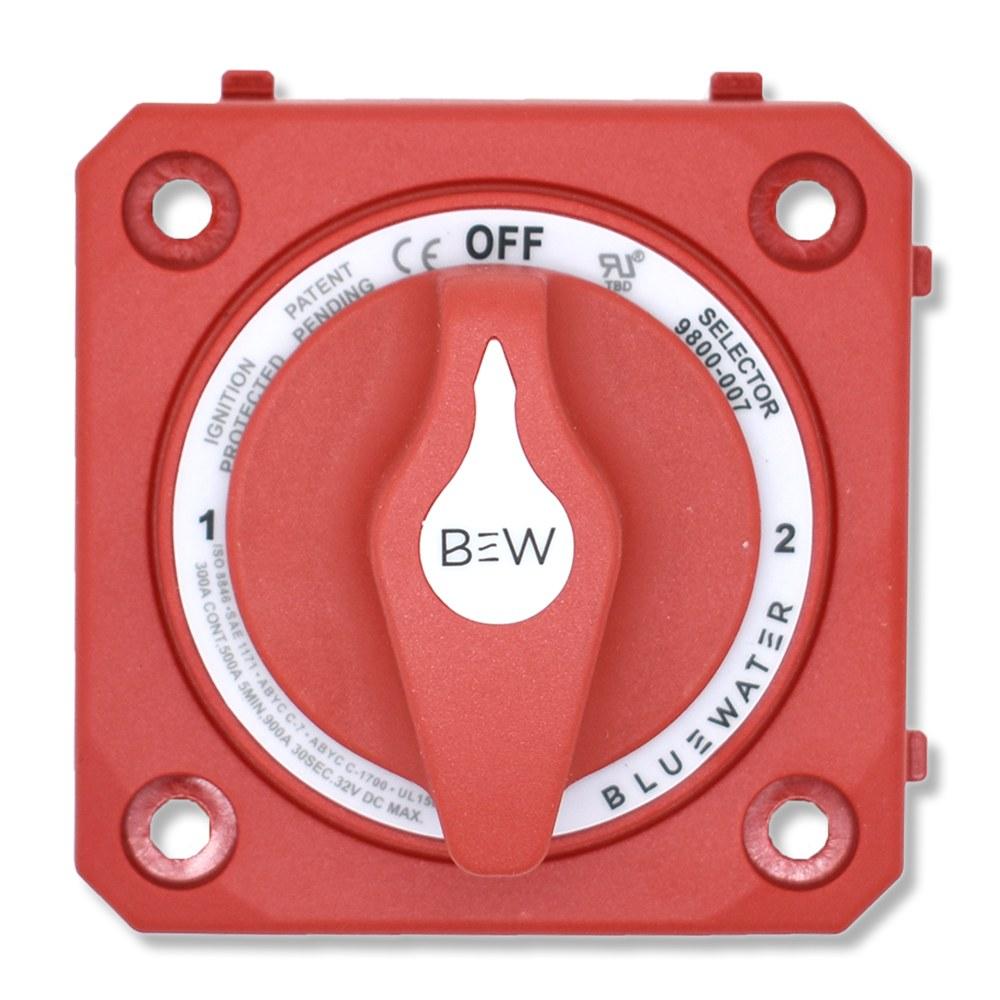

Bluewater Enterprises 9800-007-10 Off/1/2/Both Battery Selector Switch, 300A, Panel Mount, Red

Bluewater Off/1/2/Both Battery Selector Switch, 300A, Panel Mount, No Base, Red

Bluewater Enterprises 9800-007-10 Battery Selector Switch provides dependable control over marine and recreational vehicle power systems. The four-position design lets you select Battery 1, Battery 2, both batteries, or off, making it useful for managing power distribution, creating backup configurations, and charging multiple battery banks. With a 300-amp continuous rating, 500-amp intermittent rating, and 900-amp cranking rating, this switch is designed for demanding 12-volt and 24-volt DC applications up to 32VDC.

Built with non-corrosive marine-grade metals and reinforced polycarbonate, the Bluewater switch is suited for harsh marine environments and RV installations. Its ignition-protected construction is appropriate for gasoline-powered boats, while the textured red knob provides positive tactile feedback so the selected position can be identified by feel. International ON/OFF legends and an icon label set are included for clear operation and installation flexibility.

The panel-mount configuration allows front or rear installation without requiring a separate base. Heavy-duty 3/8-inch-16 tin-plated copper studs accept 3/8-inch and M10 ring terminals and provide a 7/8-inch stud length for accommodating multiple cable connections. The terminals support cable sizes up to 4/0 AWG, helping simplify high-current battery wiring in marine and recreational vehicle systems. This Bluewater Enterprises Model 9800-007-10 switch combines practical battery selection with rugged construction for reliable power management.

Specifications
Positions: Off / 1 / 2 / Both
Continuous Rating: 300A DC
Intermittent Rating: 500A DC for 5 minutes
Cranking Rating: 900A DC for 30 seconds
Maximum Voltage: 32VDC
Studs: 3/8-inch-16 tin-plated copper, 7/8-inch length
Cable Size: Up to 4/0 AWG
Mounting: Panel mount, no base
Knob Color: Red

Features:

• Full battery control: Select Battery 1, Battery 2, both batteries, or off to manage power flow and backup configurations.
• Heavy-duty electrical rating: Supports 300A continuous, 500A intermittent, and 900A cranking service.
• High-current terminals: Includes 3/8-inch-16 tin-plated copper studs compatible with 3/8-inch and M10 ring terminals.
• Multiple cable connections: 7/8-inch stud length supports cable sizes up to 4/0 AWG.
• Ignition protected: Suitable for gasoline-powered boats and recreational vehicle applications.
• Flexible panel mounting: Designed for front or rear installation without a separate base.
• Durable construction: Uses non-corrosive marine-grade metals and reinforced polycarbonate.
• Easy position identification: Textured red knob provides tactile feedback, with international legends and icon labels included.
