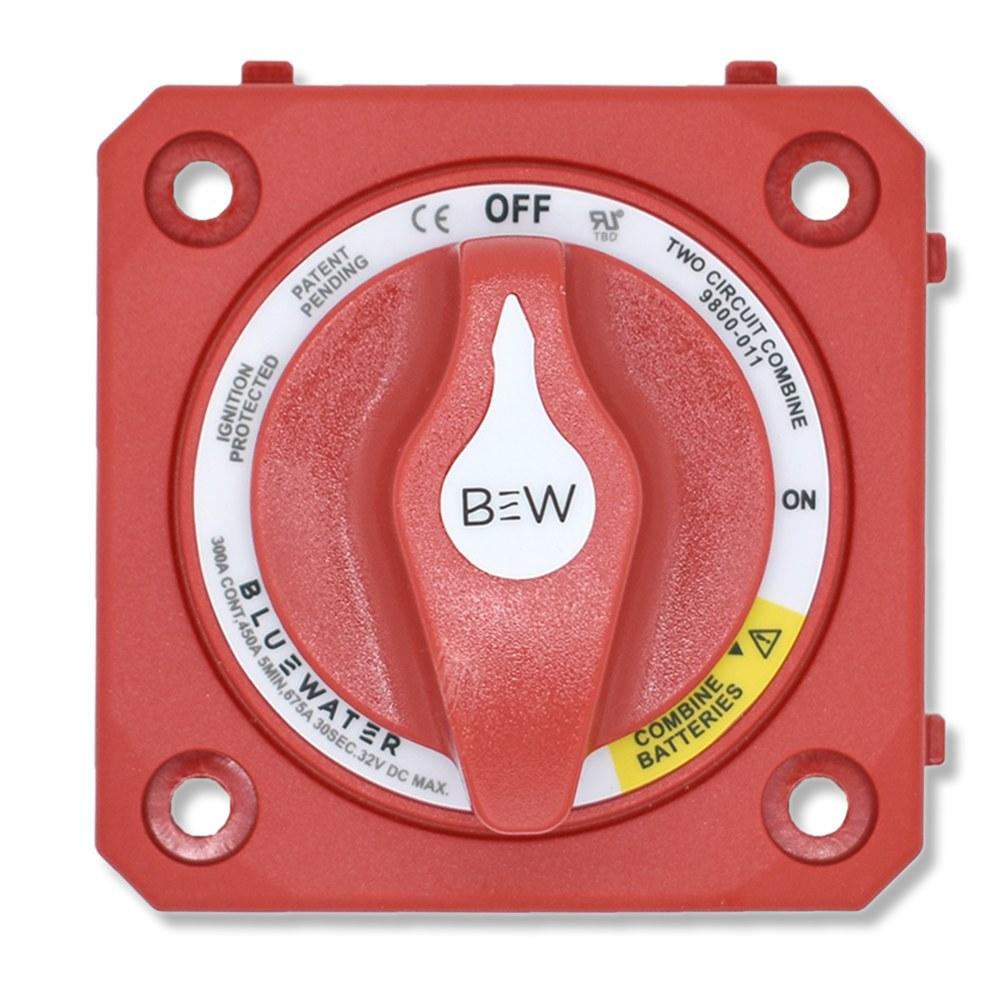

Bluewater Enterprises 9800-011-10 Dual Circuit Plus Battery Switch, 300A, Off/On/Combine, Panel Mount, Red

Bluewater Dual Circuit Plus Battery Switch, Off/On/Combine, 300A, Panel Mount, No Base, Red

Bluewater Enterprises 9800-011-10 Dual Circuit Plus Battery Switch provides reliable control for marine and recreational vehicle battery systems. Its Off, On, and Combine positions keep starting and house circuits isolated during normal operation while allowing both banks to be connected when additional starting power is needed. The red knob offers clear visual identification, and its tactile design helps confirm the selected position by feel.

Rated for 300A continuous service, 450A intermittent service, and 675A cranking service, this Bluewater battery switch is designed for demanding 32V DC electrical systems. The 3/8-inch-16 tin-plated copper studs accept 3/8-inch and M10 ring terminals and support cable sizes up to 4/0 AWG. Multiple cable connections are accommodated by the extended stud design, making the switch suitable for substantial marine and RV wiring installations.

The panel-mount configuration is supplied without a base, allowing front or rear panel installation according to the application. Constructed with non-corrosive marine-grade metals and reinforced polycarbonate, the switch is built to withstand harsh operating environments. It is ignition protected for gasoline-powered boats and includes international On/Off legends and an icon label set for straightforward installation and operation.

Specifications
Positions: Off / On / Combine
Continuous Rating: 300A DC
Intermittent Rating: 450A DC for 5 minutes
Cranking Rating: 675A DC for 30 seconds
Maximum Voltage: 32V DC
Studs: 3/8-inch-16 tin-plated copper, 7/8-inch length
Cable Size: Up to 4/0 AWG
Mounting: Panel mount, no base
Knob Color: Red

Features:

• Dual Circuit Isolation: Keeps starting and house battery circuits separate during normal operation.
• Emergency Combine: Connects battery banks in parallel to provide backup starting power.
• Heavy-Duty Capacity: Supports 300A continuous, 450A intermittent, and 675A cranking service.
• Tin-Plated Copper Studs: 3/8-inch-16 studs accept 3/8-inch and M10 ring terminals and cable sizes up to 4/0 AWG.
• Panel Mount Design: Supplied without a base for flexible front or rear panel installation.
• Ignition Protected: Suitable for gasoline-powered boats and RV applications.
• Durable Construction: Uses non-corrosive marine-grade metals and reinforced polycarbonate.
• Red Knob and Labels: Provides tactile position feedback with international On/Off legends and an icon label set.
