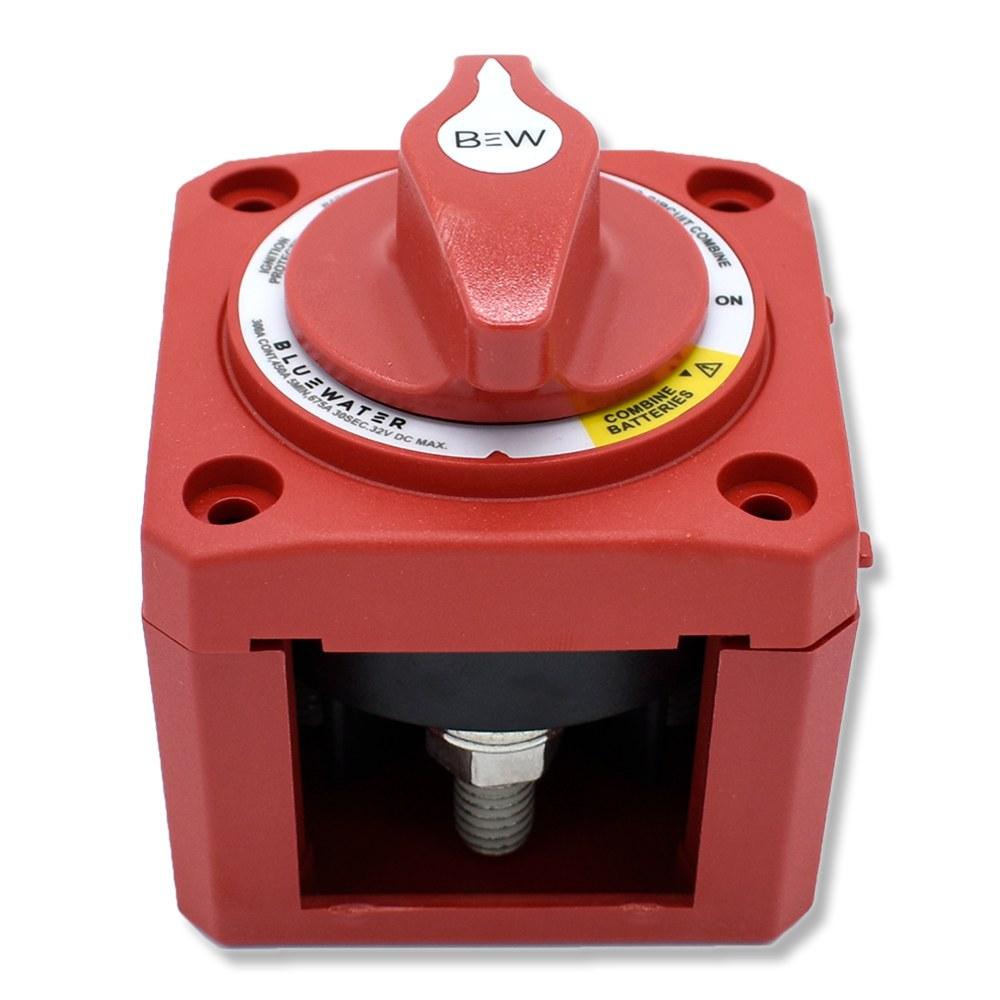

Bluewater Enterprises 9800-011-11 Dual Circuit Plus Battery Switch, Off/On/Combine, 300A, Surface Mount, Red

Bluewater Dual Circuit Plus Battery Switch, Off/On/Combine, 300A, Surface Mount with Base, Red

Bluewater Enterprises 9800-011-11 Dual Circuit Plus Battery Switch provides dependable control for marine and recreational vehicle battery systems. Its Off, On, and Combine positions keep starting and house circuits isolated during normal operation while allowing both battery banks to be paralleled when additional starting power is needed. The 300-amp continuous rating supports demanding electrical loads, while the 450-amp intermittent and 675-amp cranking ratings provide added capacity during high-current events.

Designed for gasoline-powered boats, this Bluewater dual-circuit battery switch is ignition protected and also suited to many RV applications. The surface-mount design includes a base for straightforward installation, and the switch accepts cable sizes up to 4/0 AWG. Tin-plated copper studs help provide reliable conductivity and corrosion resistance, while the threaded terminals accommodate 3/8-inch and M10 ring terminals for flexible cable installation.

Constructed with non-corrosive marine-grade metals and reinforced polycarbonate, the 9800-011-11 is built for demanding onboard environments. Its textured red knob provides tactile confirmation of the selected position, even when visibility is limited. International On/Off legends and an icon label set are included for clear identification. The switch is rated for systems up to 32 volts DC and offers a practical solution for battery isolation, emergency combining, and electrical system management.

Specifications
Positions: Off / On / Combine
Continuous Rating: 300A DC
Intermittent Rating: 450A DC for 5 minutes
Cranking Rating: 675A DC for 30 seconds
Maximum Voltage: 32V DC
Studs: 3/8-inch-16 tin-plated copper studs
Cable Size: Up to 4/0 AWG
Mounting: Surface mount with base
Knob Color: Red

Features:

• Dual Circuit Isolation: Keeps starting and house battery circuits separate during normal operation.
• Emergency Combine: Parallels battery banks to provide backup starting power when needed.
• High Current Capacity: Rated for 300A continuous, 450A intermittent, and 675A cranking service.
• Marine-Ready Construction: Uses non-corrosive marine-grade metals and reinforced polycarbonate.
• Ignition Protected: Suitable for gasoline-powered boats and many RV battery systems.
• Heavy-Duty Terminals: Tin-plated copper studs accept 3/8-inch and M10 ring terminals and multiple cables.
• Flexible Cable Compatibility: Supports cable sizes up to 4/0 AWG.
• Surface Mount Installation: Includes a mounting base for convenient installation.
• Tactile Red Knob: Textured control provides positive position feedback by touch.
• Clear Identification: Includes international On/Off legends and an icon label set.
