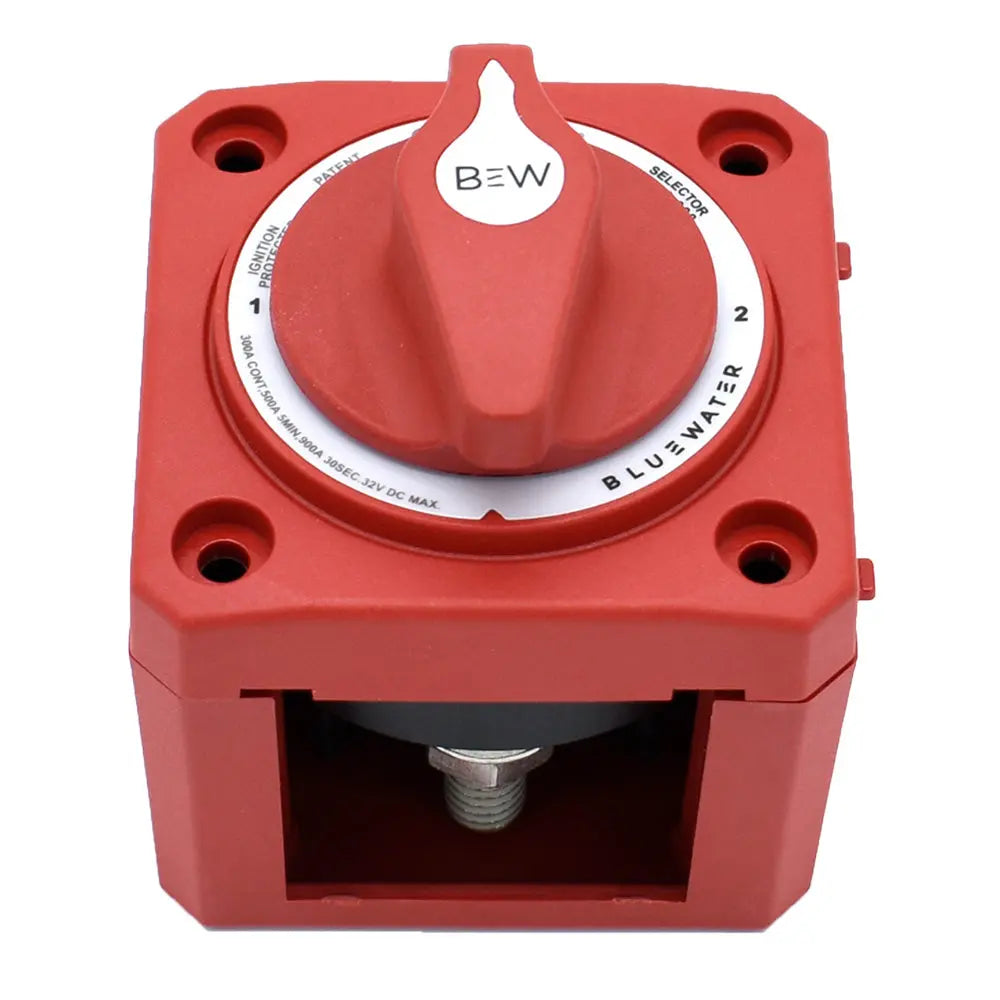

Bluewater OFF/1/2 Battery Switch - Surface Mount, Red - Part Number 9800-008-11

OFF/1/2 Battery Switch - Surface Mount - Red

This 1/2/Off switch offers seamless selection between two power sources, with an Off position for isolation. Its a reliable solution for switching between primary and secondary batteries in compact or mobile applications, such as boats, RVs, or service vehicles.

Ignition-protected and safe for use aboard gasoline-powered boats, the 1/2/Off switch is built for flexibility with a case design that supports surface, front panel, or rear panel mounting.

To ensure lasting performance, the switch features 3/8-16 tin-plated copper studs for strong conductivity and corrosion resistance, compatible with both 3/8 and M10 ring terminals. A 7/8 stud length accommodates multiple cable terminals when needed.

Constructed from marine-grade, non-corrosive metals and a reinforced polycarbonate housing, its made to endure harsh environments. Tactile knob textures allow you to identify the position by feel, and both international ON/OFF legends and an icon label set are included for easy circuit labeling.

Specifications:

• Continuous Rating: 300 Amps DC
• Intermittent Rating: 500 Amps DC (5 min)
• Cranking Rating: 900 Amps DC (30 sec)
• Max Voltage: 32VDC
• Cable Size: 4/0 AWG

The Bluewater OFF/1/2 Battery Switch (Part Number 9800-008-11) is a high-performance switching solution designed for reliable power management in demanding environments. This surface-mounted switch features a clear Off position to isolate power sources, making it ideal for applications such as boats, RVs, and service vehicles where seamless switching between primary and secondary batteries is essential. Its robust construction ensures durability against harsh conditions, with marine-grade, non-corrosive metals and a reinforced polycarbonate housing that withstands exposure to moisture and chemicals. The tactile knob textures allow for easy identification of switch positions by feel, facilitating quick and safe operation even in low-light conditions. The switch's international ON/OFF legends and icon labels provide straightforward circuit identification for enhanced safety and maintenance efficiency.
The switch is equipped with 3/8-16 tin-plated copper studs that offer excellent conductivity and resistance to corrosion, compatible with both 3/8 and M10 ring terminals. Its 7/8 inch stud length accommodates multiple cable terminals, simplifying wiring configurations. With a continuous rating of 300 amps DC, a 500-amp intermittent rating for up to 5 minutes, and a cranking rating of 900 amps DC for 30 seconds, this switch is engineered for high-current applications, supporting voltages up to 32VDC. The design supports cable sizes up to 4/0 AWG, making it suitable for heavy-duty power systems.
Overall, the Bluewater OFF/1/2 Battery Switch offers a reliable, safe, and versatile option for managing dual power sources in marine, RV, and mobile applications, ensuring operational safety and ease of use in challenging environments.

Features:

• Surface mount design for flexible installation options

• Seamless selection between two power sources with Off position for isolation

• Ignition-protected and safe for use aboard gasoline-powered boats

• Marine-grade, non-corrosive construction with reinforced polycarbonate housing

• Tactile knob textures for easy position identification

• Includes international ON/OFF legends and icon labels for circuit labeling

• 3/8-16 tin-plated copper studs for high conductivity and corrosion resistance

• Compatible with 3/8 and M10 ring terminals

• Supports cable sizes up to 4/0 AWG

• High current ratings: 300 Amps continuous, 500 Amps intermittent, 900 Amps cranking
