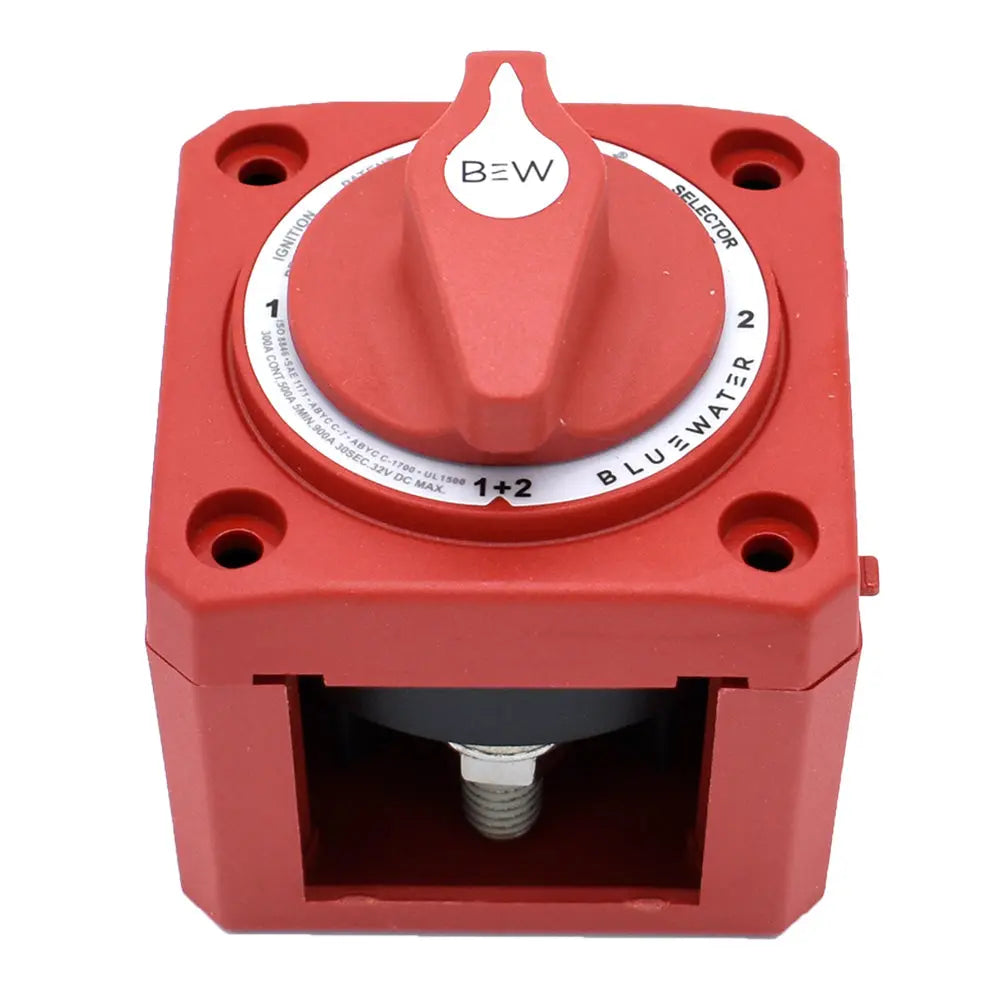

Bluewater Off/1/2/Both Battery Switch - Surface Mount - Red (Part 9800-007-11)

Off/1/2/Both Battery Switch - Surface Mount - Red

Designed for dual battery setups, this 1/2/Both selector switch gives you full control to route power from Battery 1, Battery 2, both, or neither. Its ideal for managing power flow, setting up backup systems, and charging multiple battery banks all from a single, intuitive control point.

Ignition-protected and safe for installation aboard gasoline-powered boats, this 1/2/Both switch is perfect for both marine and RV applications. The versatile case design supports surface, front panel, or rear panel mounting.

Engineered for performance, it includes 3/8-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepting both 3/8 and M10 ring terminals. The 7/8 stud length allows connection of multiple cable terminals with ease.

Built to withstand harsh environments, the switch is made from non-corrosive marine-grade metals and molded in reinforced polycarbonate for added durability. Tactile knob textures let you confirm position by feel alone, and the switch includes both international ON/OFF legends and an ICON label set for quick circuit identification.

Specifications:

• Continuous Rating: 300 Amps DC
• Intermittent Rating: 500 Amps DC (5 min)
• Cranking Rating: 900 Amps DC (30 sec)
• Max Voltage: 32VDC
• Cable Size: 4/0 AWG

The Bluewater Off/1/2/Both Battery Switch (Part 9800-007-11) is a reliable and versatile control device designed for managing dual battery systems in marine and RV applications. Its surface mount design allows for flexible installation options on front, rear, or panel surfaces, making it suitable for a variety of setup configurations. This switch provides precise control over power routing, enabling users to select Battery 1, Battery 2, both batteries simultaneously, or turn off power entirely, facilitating efficient management of backup power and charging systems.
Constructed with marine-grade, non-corrosive metals and molded in reinforced polycarbonate, the switch is built for durability in harsh environments. It features three 3/8-16 tin-plated copper studs that ensure high conductivity and resistance to corrosion. The 7/8-inch stud length allows for easy connection of multiple cable terminals, accommodating cable sizes up to 4/0 AWG. The tactile knob with textured grip provides tactile confirmation of the switch position, while the international ON/OFF legends and ICON labels enable quick and clear circuit identification.
This switch is rated for continuous operation at 300 amps DC, with intermittent ratings of up to 500 amps and a cranking capacity of 900 amps for short durations. It supports a maximum voltage of 32VDC, making it suitable for various power systems. The design includes ignition protection features, ensuring safe operation aboard gasoline-powered boats. Whether used for backup power, system isolation, or multi-battery configurations, this switch offers dependable performance and easy operation in demanding environments.

Features:

• Surface mount installation with versatile mounting options

• Full control over dual battery power routing: Battery 1, Battery 2, both, or off

• Engineered for marine and RV environments with ignition protection

• Constructed from marine-grade, corrosion-resistant metals and reinforced polycarbonate for durability

• Includes three 3/8-16 tin-plated copper studs compatible with 3/8 and M10 ring terminals

• Stud length of 7/8 inch for accommodating multiple cable connections

• Tactile textured knob for easy position confirmation by feel

• International ON/OFF legends and ICON labels for quick circuit identification

• Rated for continuous 300 amps DC, with intermittent and cranking capacity up to 900 amps

• Supports systems up to 32VDC with cable sizes up to 4/0 AWG
