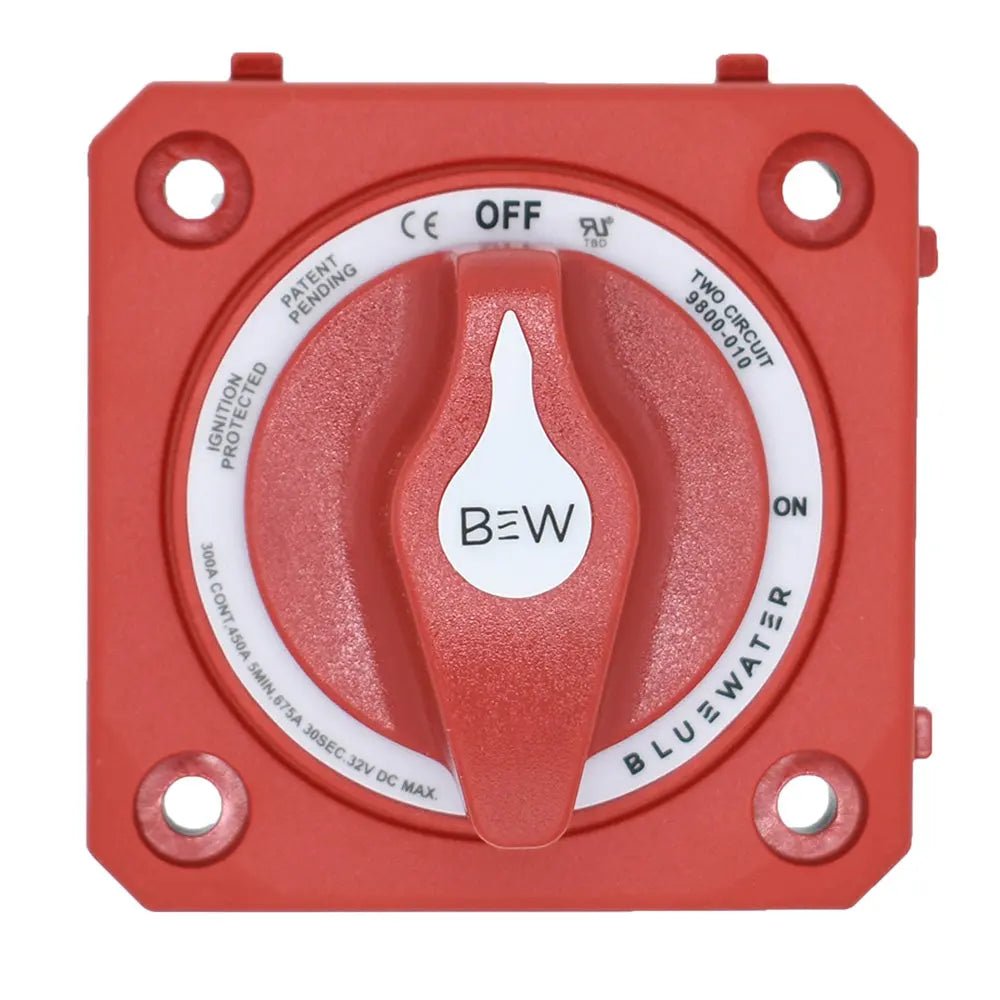

Bluewater On/Off 4 Post Dual Circuit Battery Switch Part Number 9800-010-10 for Marine and RV Applications

On/Off 4 Post Dual Circuit Battery Switch without Base - Panel Mount - Red

This dual circuit battery switch allows you tocontrol two isolated circuits simultaneouslywith a single action. Its ideal for applications that requireindependent power routing, such as separating ahouse batteryand anengine battery, without risk of cross-connection.

Ignition-protected and safe for use aboard gasoline-powered boats, this dual circuit battery switch is also well-suited formarine and RV systems. The versatile case design supportssurface, front panel, or rear panel mounting.

For maximum reliability, it features3/8-16 tin-plated copper studsthat provide high conductivity and corrosion resistance, accepting both3/8 and M10 ring terminals. The7/8 stud lengthallows for secure connection of multiple cable terminals.

Durable by design, the switch is constructed from marine-grade, non-corrosive metals and housed in reinforced polycarbonate. Tactile knob textures enable position recognition by feel alone, and the unit includes both international ON/OFF legends and an ICON label set for clear circuit identification.

Specifications:

• Continuous Rating: 300 Amps DC
• Intermittent Rating: 450 Amps DC (5 min)
• Cranking Rating: 675 Amps DC (30 sec)
• Max Voltage: 32VDC
• Cable Size: 4/0 AWG

The Bluewater Part Number 9800-010-10 dual circuit battery switch offers reliable control over two isolated circuits with a single switch action, making it ideal for marine, RV, and other vehicle systems. This panel-mounted switch enables independent power routing, such as separating a house battery from an engine battery, reducing the risk of cross-connection and ensuring safe operation. Its ignition-protected design makes it suitable for use aboard gasoline-powered boats, providing peace of mind in demanding environments. The rugged construction features marine-grade, non-corrosive metals housed in reinforced polycarbonate, ensuring durability against harsh conditions. The switch's case supports surface, front panel, or rear panel mounting, offering flexible installation options for various setups. Equipped with three 3/8-16 tin-plated copper studs, the switch provides high conductivity and corrosion resistance, accepting both 3/8 and M10 ring terminals for secure, reliable connections. The 7/8-inch stud length allows for multiple cable terminations, facilitating complex wiring configurations. Tactile knob textures enable easy position recognition by feel, and clearly marked international ON/OFF legends combined with icon labels provide straightforward circuit identification. With a continuous DC rating of 300 amps, an intermittent rating of 450 amps for 5 minutes, and a cranking rating of 675 amps for 30 seconds, this switch is designed to handle high-current loads safely. Its maximum voltage capacity is 32VDC, and it supports cable sizes up to 4/0 AWG, making it suitable for heavy-duty electrical systems. Overall, the Bluewater dual circuit battery switch combines durability, safety, and versatility to meet the demanding needs of marine and RV power management systems.

Features:

• Dual circuit control: Allows simultaneous operation of two isolated circuits

• Panel mount design: Supports surface, front, or rear installation

• Ignition protected: Suitable for gasoline-powered boats and marine environments

• High conductivity studs: Features three 3/8-16 tin-plated copper studs for corrosion resistance

• Heavy-duty ratings: Handles up to 300 amps continuous, 450 amps intermittent, and 675 amps cranking

• Durable construction: Made from marine-grade metals housed in reinforced polycarbonate

• Secure cable connections: Supports 3/8 and M10 ring terminals with 7/8-inch stud length

• Intuitive operation: Tactile knobs with clear ON/OFF legends and icon labels for circuit identification
