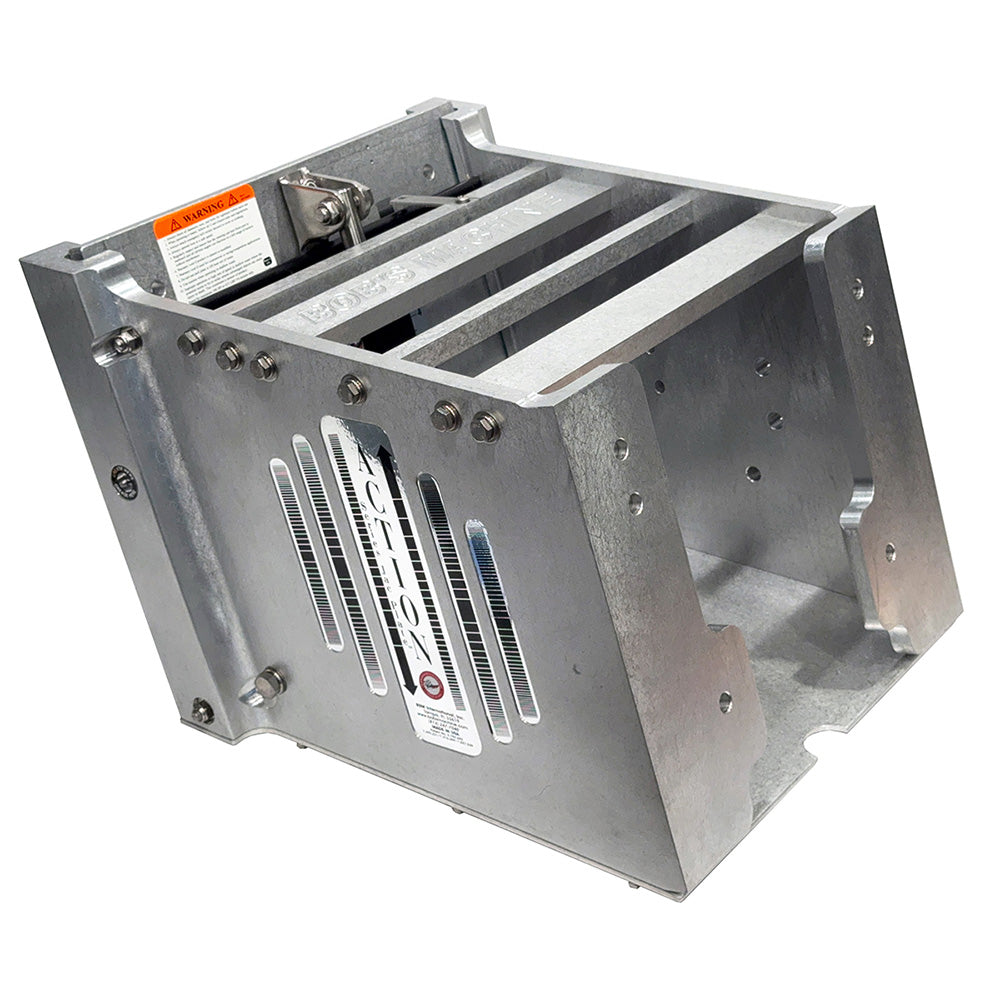

Bob's Machine 16-Inch Setback Action Series Hydraulic Jack Plate, Silver - Part 100-116001-NOPC-NOSPN-NG

16 Setback Action Series Hydraulic Jack Plate - Silver

The hydraulic jack plate line, Action Series Jack Plate, offers new technology in the Jack Plate market. The first Jack plate to offer a pump inside the jack plate structure, saving boaters room inside the boat, and eliminating the need to mount a pump inside the boat. This is a great OEM feature to help save time in rigging.

The internal pump has a motor stronger than any other internal jack plate on the market currently, which will offer greater lifting speed, and strength with heavy outboards. All of the Bobs patented features from our standard series, automotive style grease nipples in the side rails, tension rods, and the famous Bobs Machine Shop Design, are all incorporated into the Action Series Jack Plate.

Offered in 4, 6, 8, 10, 12 and 14 setbacks, Bobs Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback.

Action series support motors up to a 14.5 mounting width. If wider we recommend our Extreme Gen 3 series jack plates.

Features:

• Pump inside jack plate
• Plate weight: 46lbs
• 1.5 of lift built into structure 6 of adjustable travel for a total of 7.5 total lift
• Large powerful motor that can lift heavy outboards under full power
• Can be converted to have pump inside boat if owner desires to change styles
• Automotive grease nipples for easy lubrication
• Tension rods
• Rated for 300HP, up to 625 lbs motors (heavier should use Extreme series)
• Pre drilled for dual side mount Power Pole brackets.
• Includes Jack plate, wiring harness, relays, rocker style switch
• Limited Lifetime Structure Warranty against manufacturing defects
• 3 Year Action Pump Warranty

Bob's Machine Action Series Hydraulic Jack Plate brings integrated hydraulic operation and a streamlined one-piece design to outboard rigging. The internal pump is built into the jack plate structure, helping conserve space inside the boat while eliminating the need to mount a pump within the hull. This design can also help save rigging time for original equipment installations.

A powerful motor provides lifting speed and strength for heavy outboards. The jack plate incorporates Bob's Machine design features, including automotive-style grease nipples in the side rails for lubrication and tension rods for added structural support. The one-piece construction provides the specified 16-inch setback without requiring separate setback spacers.

The Action Series supports motors with a mounting width up to 14.5 inches and is rated for outboards up to 300 horsepower and 625 pounds. It provides 1.5 inches of built-in lift and 6 inches of adjustable travel, for 7.5 inches of total lift. The pump can be converted for installation inside the boat if the owner later prefers that configuration.

This silver jack plate is pre-drilled for dual side-mount Power-Pole brackets and includes the jack plate, wiring harness, relays and rocker-style switch. It carries a limited lifetime structural warranty against manufacturing defects and a 3-year Action Pump warranty.

Features:

• Integrated Pump: Hydraulic pump is housed inside the jack plate structure to save space inside the boat.
• Setback: Provides a 16-inch setback in a one-piece design without separate setback spacers.
• Lift Range: Includes 1.5 inches of built-in lift and 6 inches of adjustable travel for 7.5 inches of total lift.
• Motor Capacity: Rated for outboards up to 300 horsepower and 625 pounds.
• Mounting Width: Supports motors with a mounting width up to 14.5 inches.
• Powerful Motor: Designed to lift heavy outboards under full power.
• Convertible Pump Configuration: Can be converted for the pump to be installed inside the boat.
• Lubrication: Automotive-style grease nipples in the side rails support easy lubrication.
• Structural Support: Includes tension rods.
• Power-Pole Preparation: Pre-drilled for dual side-mount Power-Pole brackets.
• Included Components: Includes the jack plate, wiring harness, relays and rocker-style switch.
• Warranty: Includes a limited lifetime structural warranty against manufacturing defects and a 3-year Action Pump warranty.
• Finish: Silver.
