SKU:115441
6 Setback Action Series Hydraulic Jack Plate - Silver
The hydraulic jack plate line, Action Series Jack Plate, offers new technology in the Jack Plate market. The first Jack plate to offer a pump inside the jack plate structure, saving boaters room inside the boat, and eliminating the need to mount a pump inside the boat. This is a great OEM feature to help save time in rigging.
The internal pump has a motor stronger than any other internal jack plate on the market currently, which will offer greater lifting speed, and strength with heavy outboards. All of the Bobs patented features from our standard series, automotive style grease nipples in the side rails, tension rods, and the famous Bobs Machine Shop Design, are all incorporated into the Action Series Jack Plate.
Offered in 4, 6, 8, 10, 12 and 14 setbacks, Bobs Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback.
Action series support motors up to a 14.5 mounting width. If wider we recommend our Extreme Gen 3 series jack plates.
Features:

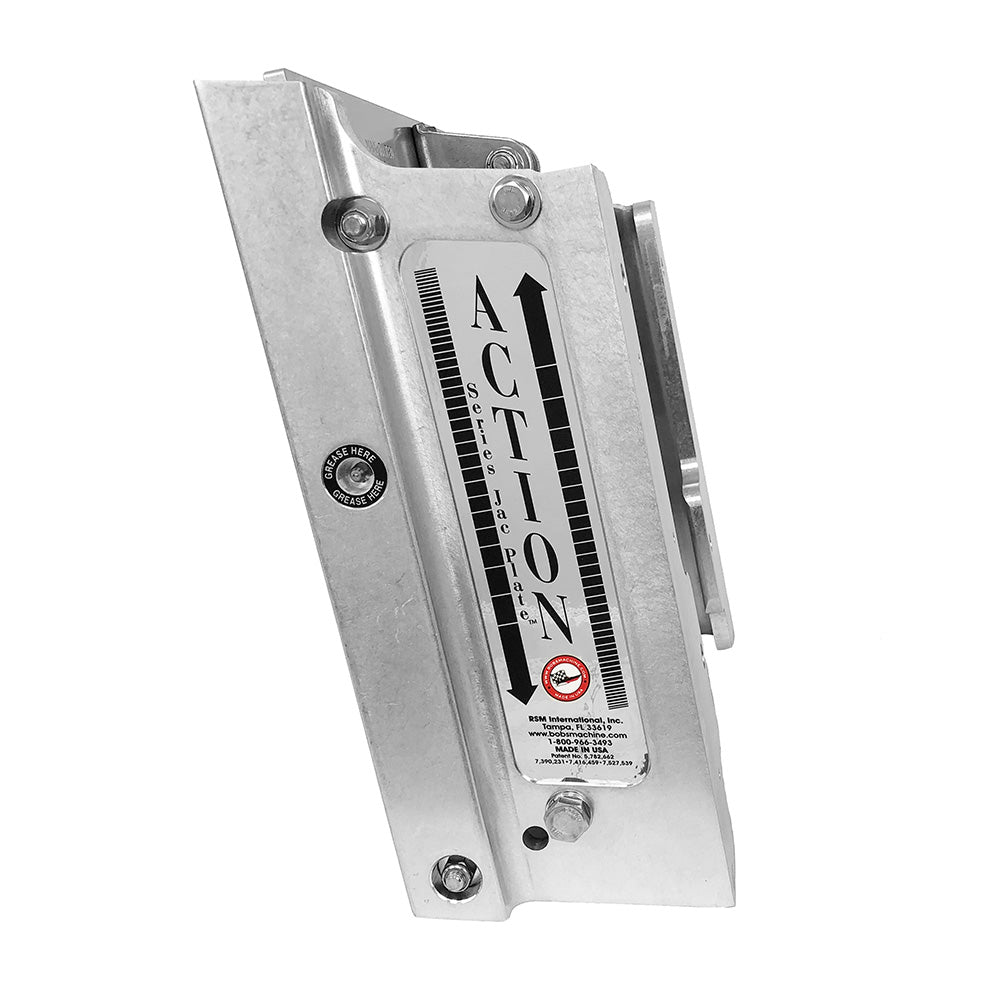

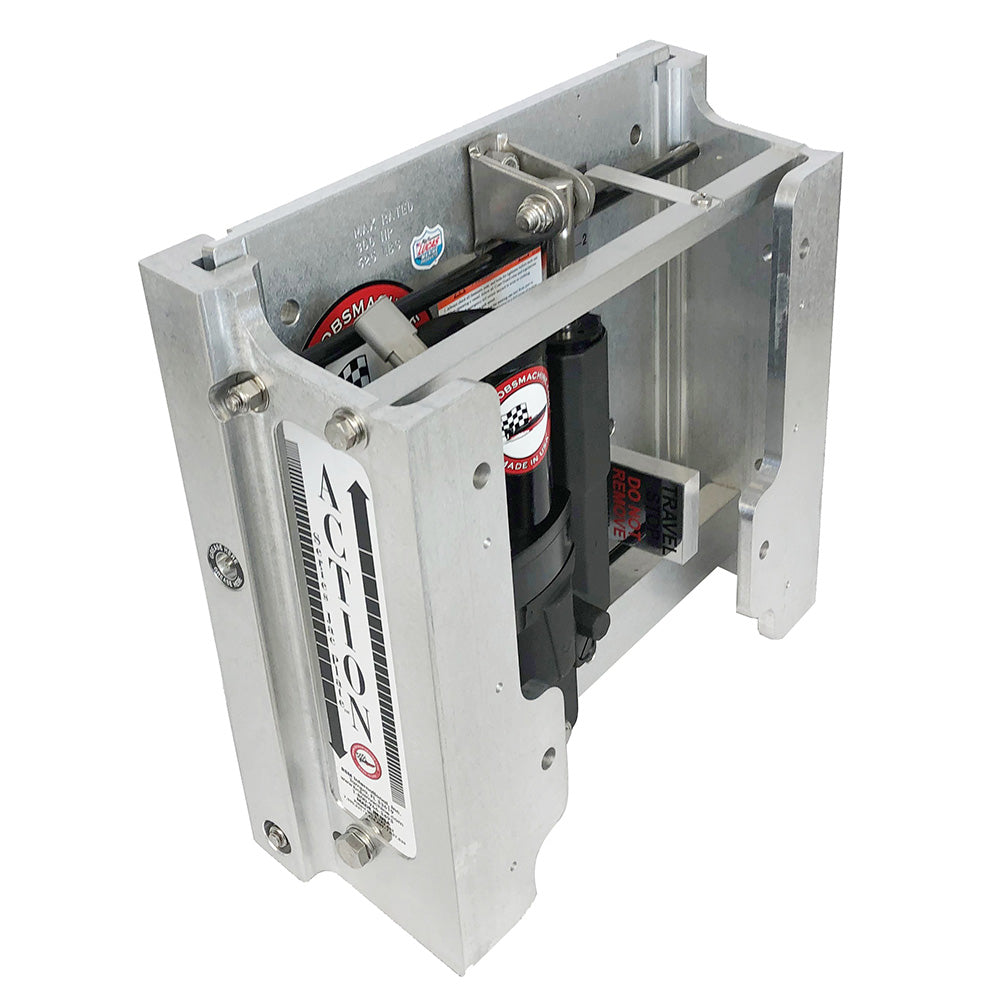

Bob's Machine 6-Inch Setback Action Series Hydraulic Jack Plate, Silver

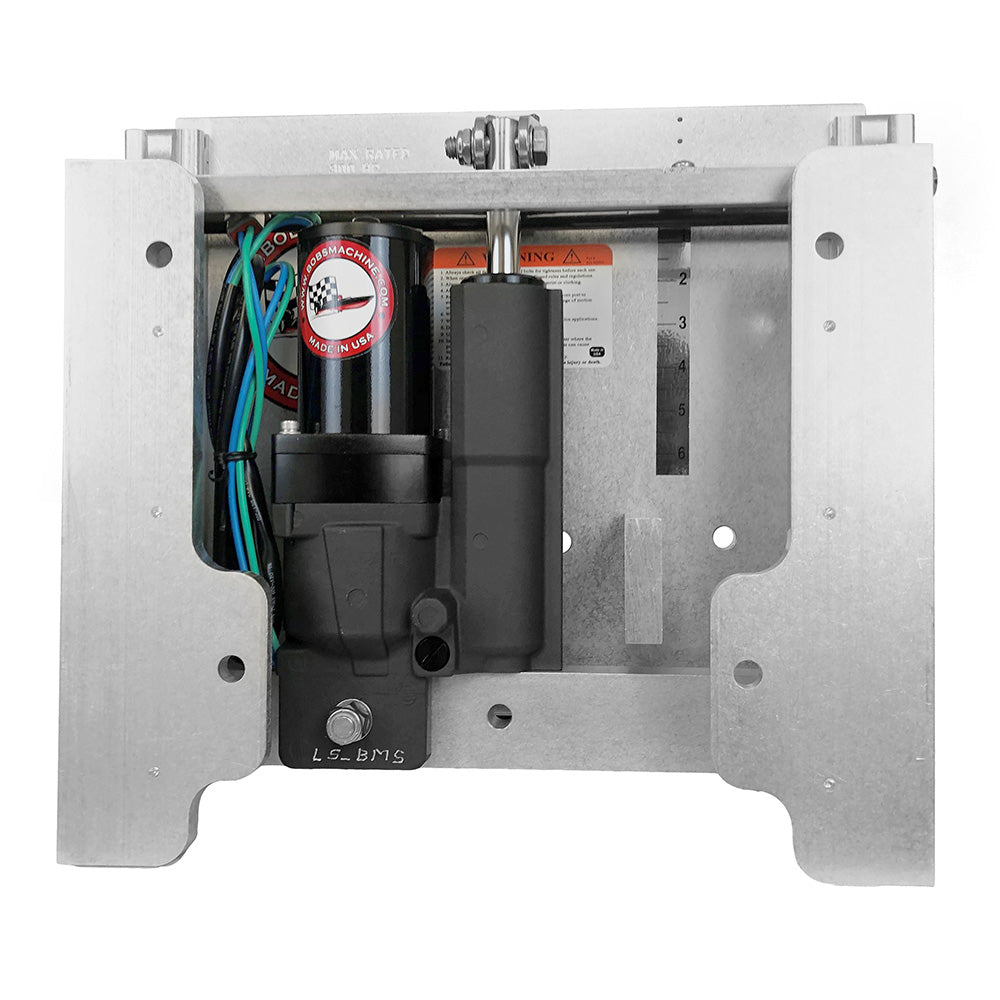

The Bob's Machine Action Series Hydraulic Jack Plate delivers convenient, powerful outboard adjustment with an integrated hydraulic pump built directly into the jack plate structure. By eliminating the need to mount a separate pump inside the boat, this design helps conserve interior space and can simplify OEM rigging. The internal motor is engineered to provide strong lifting performance and fast adjustment, even when used with heavy outboard motors.
This one-piece jack plate incorporates Bob's Machine patented design features, including automotive-style grease fittings in the side rails for easy lubrication and tension rods for added support. The 6-inch setback configuration includes 1.5 inches of built-in lift and 6 inches of adjustable travel, providing 7.5 inches of total lift. The Action Series supports outboards with mounting widths up to 14.5 inches and is rated for engines up to 300 horsepower and 625 pounds. For wider or heavier applications, Bob's Machine recommends the Extreme Gen 3 series.
The Bob's Machine Part 100-106010-NOPC-NOSPN-NG includes the hydraulic jack plate, wiring harness, relays, and rocker-style switch. It is pre-drilled for dual side-mount Power-Pole brackets and can be converted to position the pump inside the boat if desired. The structure is backed by a limited lifetime warranty against manufacturing defects, while the Action pump includes a 3-year warranty.
Features:
