SKU:115450
10 Setback Action Series Hydraulic Jack Plate - Gloss Black
The hydraulic jack plate line, Action Series Jack Plate, offers new technology in the Jack Plate market. The first Jack plate to offer a pump inside the jack plate structure, saving boaters room inside the boat, and eliminating the need to mount a pump inside the boat. This is a great OEM feature to help save time in rigging.
The internal pump has a motor stronger than any other internal jack plate on the market currently, which will offer greater lifting speed, and strength with heavy outboards. All of the Bobs patented features from our standard series, automotive style grease nipples in the side rails, tension rods, and the famous Bobs Machine Shop Design, are all incorporated into the Action Series Jack Plate.
Offered in 4, 6, 8, 10, 12 and 14 setbacks, Bobs Jack plates offer 1 piece design, unlike competitors that require setback spacers to achieve the proper setback.
Action series support motors up to a 14.5 mounting width. If wider we recommend our Extreme Gen 3 series jack plates.
Features:

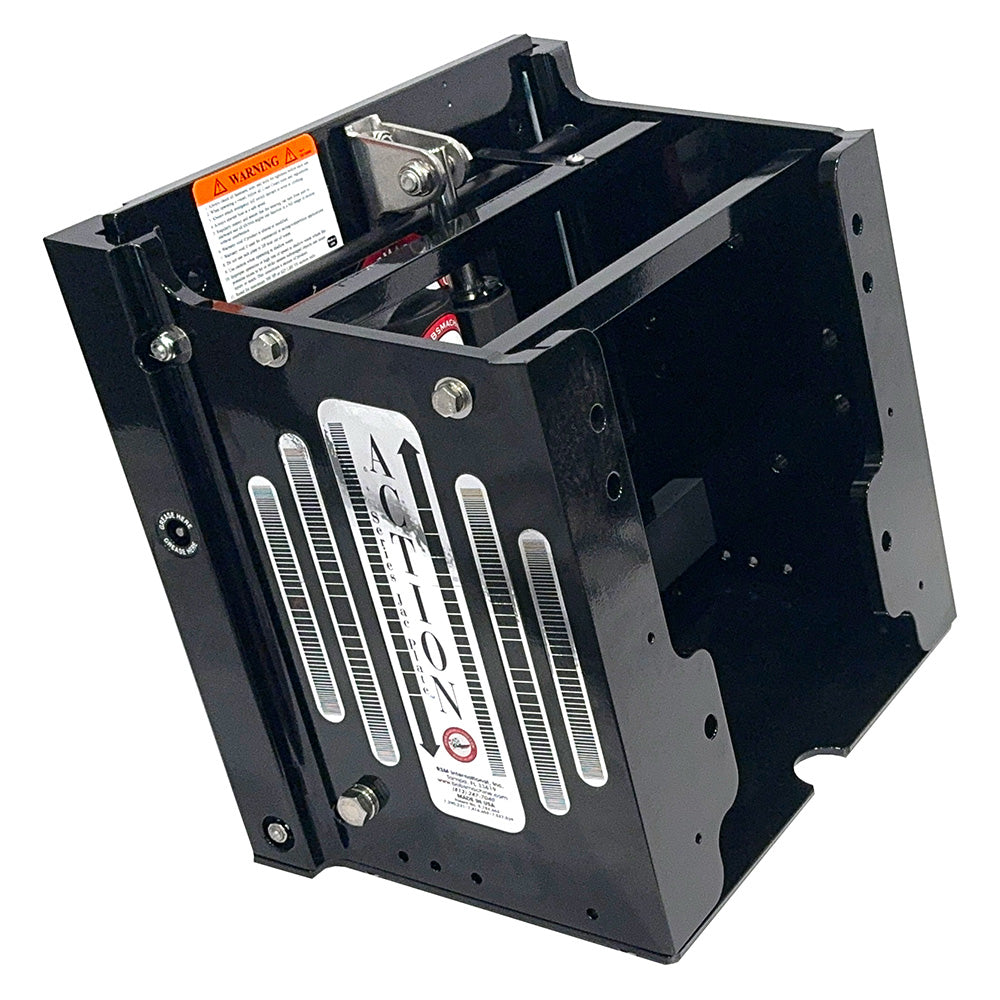

Bob's Machine Action Series 10-Inch Setback Hydraulic Jack Plate, Gloss Black
Part 100-111000P-PCGBLK-NOSPN-NG brings integrated hydraulic performance to your boat rigging setup. The Action Series is designed with the hydraulic pump built directly into the jack plate structure, helping conserve valuable space inside the boat while eliminating the need to mount a separate pump in the hull. This integrated design can also simplify OEM installations and reduce rigging time.
The internal motor delivers strong lifting performance for heavy outboards, with a large, powerful design engineered to operate under full power. The one-piece construction provides a complete 10-inch setback without the need for additional spacers. Bob's Machine incorporates proven design features, including automotive-style grease fittings in the side rails for convenient lubrication and tension rods for added structural support. The plate includes 1.5 inches of built-in lift and 6 inches of adjustable travel, providing 7.5 inches of total lift. It is rated for outboards up to 300 horsepower and 625 pounds, while heavier engines should use the Extreme Series.
The Action Series supports motors with mounting widths up to 14.5 inches and can be converted to place the pump inside the boat if desired. It is pre-drilled for dual side-mount Power-Pole brackets and includes the jack plate, wiring harness, relays, and rocker-style switch. The gloss black finish provides a clean appearance, while Bob's Machine backs the structure with a limited lifetime warranty against manufacturing defects and the Action pump with a 3-year warranty.
Features:
