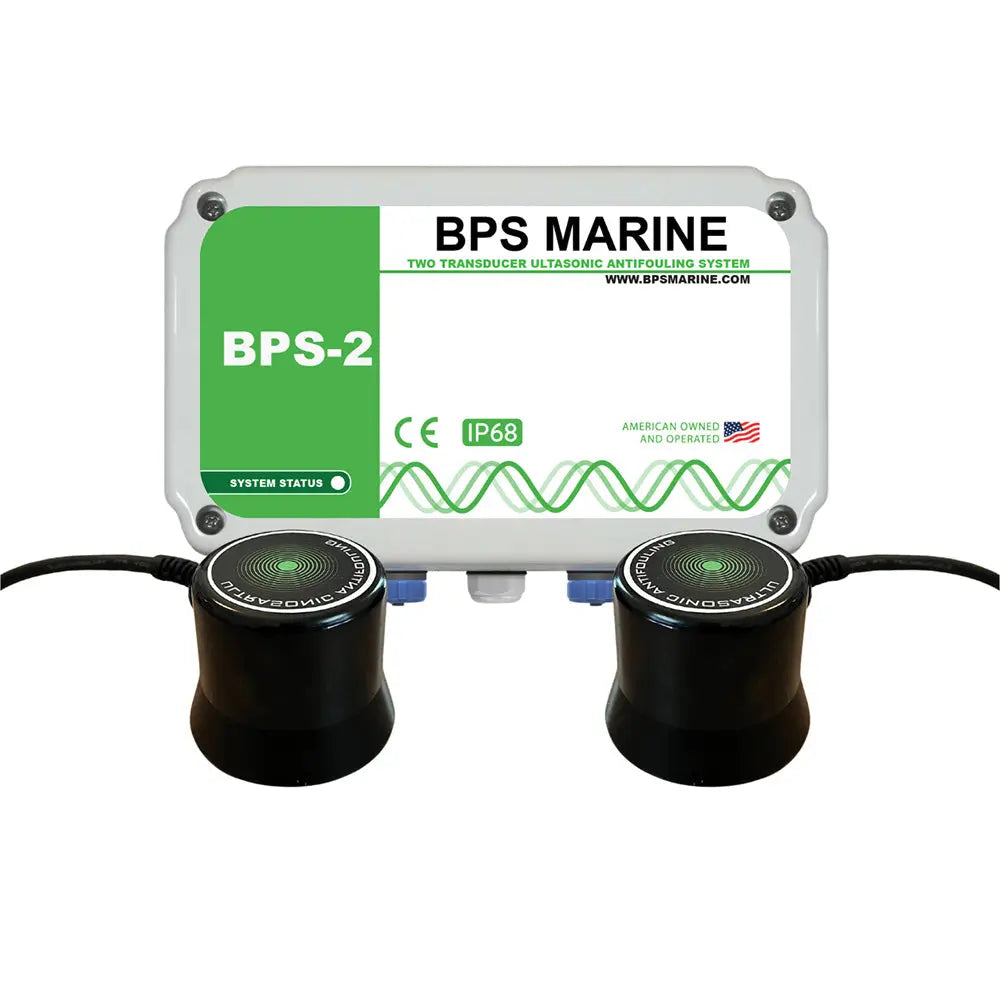

BPS-2 2-Transducer Ultrasonic Antifouling System - 12VDC
The BPS-2 is a two-transducer system that can add antifouling protection to hulls, drives, rudders, stabilizers, and more. This single system can provide ultrasonic antifouling protection for hulls up to 30ft in length or can be combined with additional systems for larger vessels. The BPS-2 can also be tasked with protecting drives and rudders.
The BPS-2 Package Includes:
- 1x BPS-2 Control Module with Integrated Power Cable
- 2x Submersible Ultrasonic Transducers with 15ft of Cable
- 1x Epoxy Kit
- 1x Printed Installation and Operation Manual
Specifications:
- Voltage: 12V or 24V DC
- Average Power Draw: 0.5Ah
- Transducer Strength: 60W
- Cable Length: 15ft per transducer
- Frequency: Multi-frequency ultrasonic sweep algorithm (20kHz-42kHz)
Installation Overview:
- No Thru-Hulls: The transducers are installed directly on top of your hull surface using the provided epoxy.
- Install Signal Cable: Each transducer has 15ft of connected signal cable. This ensures an easy installation from the transducer to the controller.
- Mounting the Controller: The BPS-1 Controller runs off of your boats existing house battery. It is a simple 2-wire connection the the battery bank or distribution panel.
- Enjoy Worry-Free Boating: Thats it! Your BPS system is done! Let our advanced antifouling protection do its job. Each system is programmed with a multi-frequency sweeping algorithm to ensure that your boat has the best antifouling protection on the market.
How the Technology Works:
- The Mechanism: The system emits high-frequency ultrasonic waves through the hull drives, creating a microscopic barrier of resonance.
- Targeting the Root Cause: These ultrasound waves repel biofouling from attaching to your hull before they ever have the chance to attach.
- Eco-Friendly: 100% chemical-free. It does not leach pollutants into the water, making it safe for marinas with strict environmental regulations.
- Marine Life Safe: The frequencies used are outside the hearing range of marine mammals and humans.
Benefits:
- Fuel Efficiency: A clean hull creates less drag. Maintaining hull smoothness ensures you get the best possible MPG and top speed.
- Reduced Maintenance Costs: Significantly extends the life of your bottom paint and reduces the frequency of expensive haul-outs.
- Diver Savings: Reduces the need for monthly hull cleaning services.
- Hard-to-Reach Protection: Unlike paint, ultrasonic waves resonate through complex parts that are difficult to paint and clean, such as stern drives, sea strainers, and rudders.
- Fit Forget: Once installed, the system runs automatically with zero scheduled maintenance required.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
The BPS Marine BPS-2 is a highly effective ultrasonic antifouling system designed to protect hulls, drives, rudders, and stabilizers. Featuring two transducers, this system provides reliable antifouling coverage for vessels up to 30 feet in length and can be expanded with additional units for larger boats. Its easy installation and eco-friendly operation make it an ideal choice for boat owners seeking a low-maintenance, chemical-free solution to biofouling. The system includes a control module with an integrated power cable, two submersible ultrasonic transducers with 15-foot cables, an epoxy kit for installation, and a comprehensive manual. Powered by 12V or 24V DC, the system consumes minimal power while delivering multi-frequency ultrasonic waves (20kHz-42kHz) that create a microscopic resonance barrier to prevent biofouling before it attaches. The transducers are mounted directly onto the hull surface using the included epoxy, eliminating the need for thru-hull installations, and the control module connects easily to the boat's existing battery or power distribution panel with a simple two-wire connection. The system's ultrasonic waves target biofouling at its source, repelling marine growth without the use of harmful chemicals, making it safe for marine life and compliant with environmental regulations. Benefits of the BPS-2 include improved fuel efficiency due to a cleaner hull, reduced maintenance costs by extending the lifespan of bottom paint, and fewer hull cleaning requirements. Its ultrasonic technology is effective even in complex areas like stern drives and rudders, where traditional cleaning is difficult. Once installed, the system operates automatically with no scheduled maintenance, providing worry-free antifouling protection for years to come. Designed with environmentally conscious boating in mind, the BPS-2 ensures your vessel remains clean and efficient while minimizing ecological impact, making it a smart investment for any boat owner looking to enhance vessel performance and reduce maintenance efforts.
Features:
- Two ultrasonic transducers with 15-foot cables for flexible installation
- Multi-frequency ultrasonic sweep algorithm (20kHz-42kHz) for optimal biofouling prevention
- Easy direct hull installation using provided epoxy, no thru-hulls required
- Low power consumption at 0.5Ah on 12V or 24V DC systems
- Eco-friendly, chemical-free technology safe for marine life and compliant with environmental standards
- Automatic operation with no scheduled maintenance required
- Effective for hulls up to 30 feet in length, expandable for larger vessels
- Protects drives, rudders, stabilizers, and complex hull areas
- Includes control module, transducers, epoxy kit, and installation manual
