BPS Marine BPS 6/12V Six-Transducer 12V Ultrasonic Antifouling System

BPS Marine 6 Transducer 12V Ultrasonic Antifouling System

BPS Marine BPS 6/12V Ultrasonic Antifouling System

The BPS Marine BPS 6/12V is a six-transducer ultrasonic antifouling system designed to help protect boat hulls, drives, rudders, stabilizers, pods, stern drives, and other underwater surfaces. The system can provide coverage for hulls up to 65 feet in length, making it suitable for a wide range of recreational and commercial vessels. For larger boats, multiple systems can be combined to expand coverage.

For vessels under 52 feet equipped with pods or stern drives, the BPS-6 provides a practical way to help protect the hull and running gear with one integrated system. Its multi-frequency ultrasonic sweep algorithm operates from 20 kHz to 42 kHz, while the transducers deliver up to 60 watts of output. The system operates on 12V DC power and draws an average of 1.5 Ah.

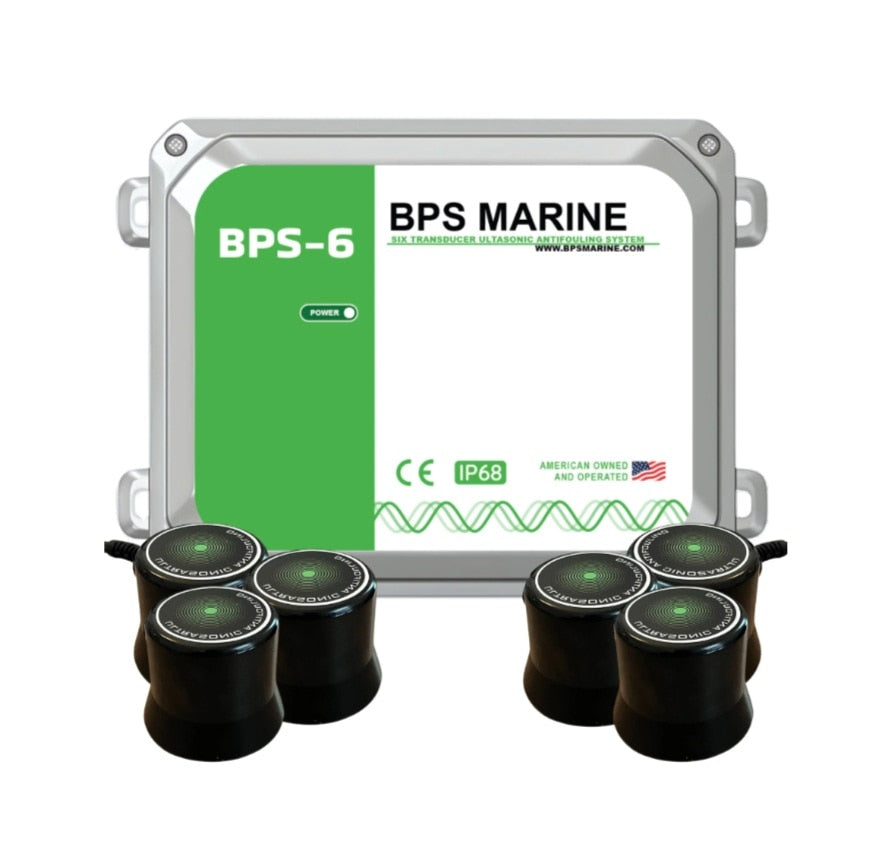

The BPS Marine BPS 6/12V package includes one control module with an integrated power cable, six submersible ultrasonic transducers, three extension cables, two epoxy kits, and a printed installation and operation manual. Each transducer includes a 15-foot cable, providing flexibility when positioning components throughout the vessel. This system is designed for marine installations where dependable underwater equipment protection and straightforward installation are priorities.

Features:

• Six-transducer ultrasonic antifouling system for marine vessels
• 12V DC operation for compatible boat electrical systems
• Coverage for hulls up to 65 feet in length
• Suitable for hulls, drives, rudders, stabilizers, pods, and stern drives
• Multi-frequency ultrasonic sweep algorithm operating from 20 kHz to 42 kHz
• Up to 60 watts of transducer output
• Average power draw of 1.5 Ah
• Each transducer includes a 15-foot cable
• Includes three additional 15-foot extension cables
• Includes two epoxy kits and a printed installation and operation manual
