SKU:BPS812V
BPS Marine BPS 8/12V Ultrasonic Antifouling System provides comprehensive ultrasonic protection for boat hulls, drives, rudders, stabilizers, and other underwater components. Designed with eight submersible transducers, the BPS 8/12V system can support vessels up to 80 feet in length, while additional systems can be combined for larger vessels. It is also well suited for vessels under 52 feet with inboard engines or sail drives when a single system is needed to cover the entire boat.
The control module uses a multi-frequency ultrasonic sweep algorithm ranging from 20 kHz to 42 kHz to help inhibit marine growth on protected surfaces. Operating on 12V DC power, the system delivers up to 60 watts of transducer output with an average power draw of 2 amps. Each transducer includes a 15-foot cable, and the included extension cables provide added flexibility for installation and transducer placement throughout the vessel.
Specifications
Voltage: 12V DC
Average Power Draw: 2 amps
Transducer Strength: Up to 60 watts of transducer output
Cable Length: 15 feet per transducer
Frequency: Multi-frequency ultrasonic sweep algorithm from 20 kHz to 42 kHz
What's in the Box:

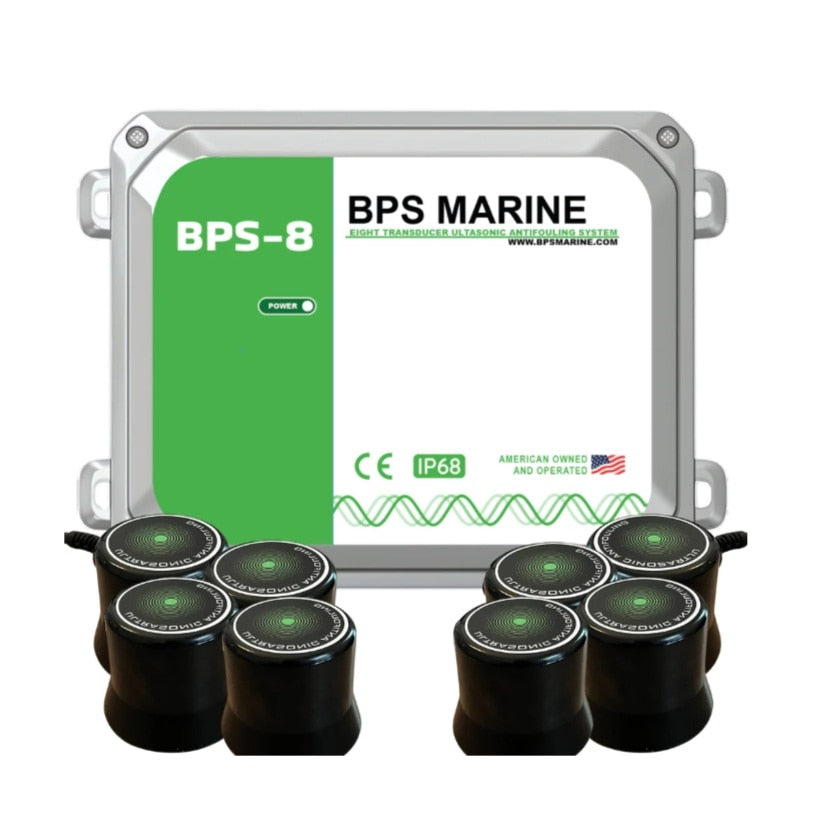

One BPS-8 control module with integrated power cable, eight submersible ultrasonic transducers with 15-foot cables, four additional 15-foot extension cables, two epoxy kits, and one printed installation and operation manual. The BPS Marine BPS 8/12V system is designed for marine installations requiring broad, multi-point ultrasonic antifouling coverage.
Features:
