SKU:BPSPRO24V

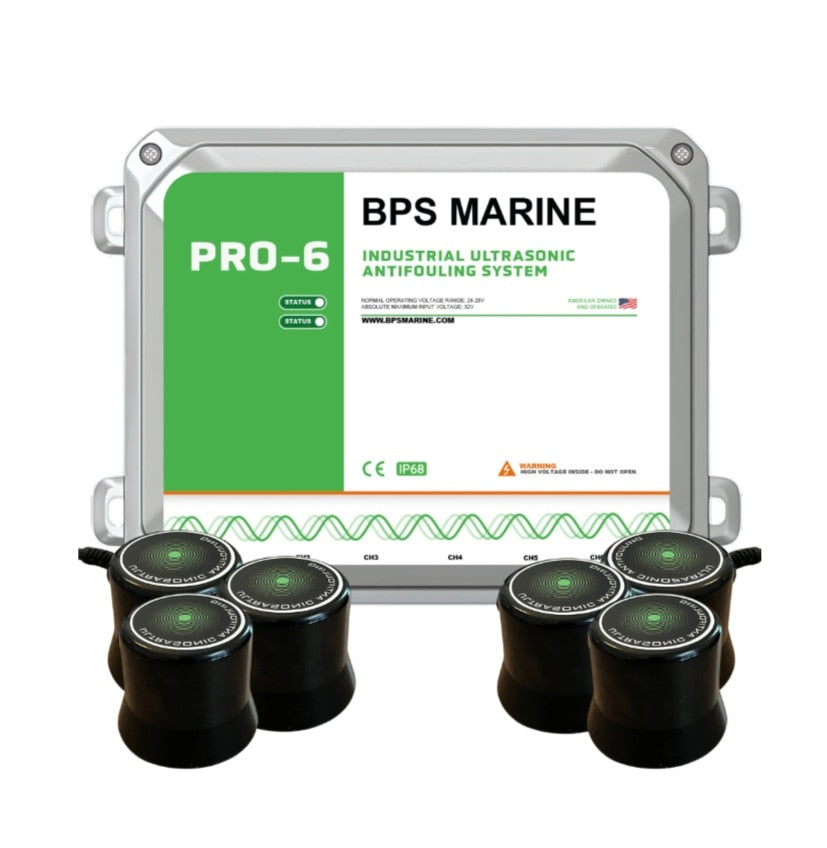

BPS Marine PRO-6 24V Ultrasonic Antifouling System
The BPS Marine PRO-6, part number BPS-PRO 6/24V, is a six-transducer ultrasonic antifouling system designed to help protect marine vessels from unwanted marine growth. The system can provide coverage for hulls up to 75 feet in length, or it can be combined with additional systems for larger vessels. Its six-transducer configuration is also well suited for vessels under 60 feet equipped with pods or stern drives, helping provide coverage across the hull and underwater running gear with one coordinated system.
Operating on 24V DC power, the PRO-6 uses a multi-frequency ultrasonic sweep algorithm ranging from 20 kHz to 42 kHz. The system delivers up to 120 watts of transducer output and includes six submersible ultrasonic transducers, each supplied with 15 feet of cable. Three additional 15-foot extension cables provide added installation flexibility for positioning transducers around hulls, drives, rudders, stabilizers, and other underwater surfaces. Average power draw is rated at 1.5 Ah.
The BPS Marine PRO-6 package includes the control module with integrated power cable, six submersible transducers, three extension cables, two epoxy kits, and a printed installation and operation manual. It is intended for marine applications requiring a coordinated ultrasonic antifouling solution and flexible transducer placement. Installation should follow the included manual and applicable marine electrical practices. California Proposition 65 Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
