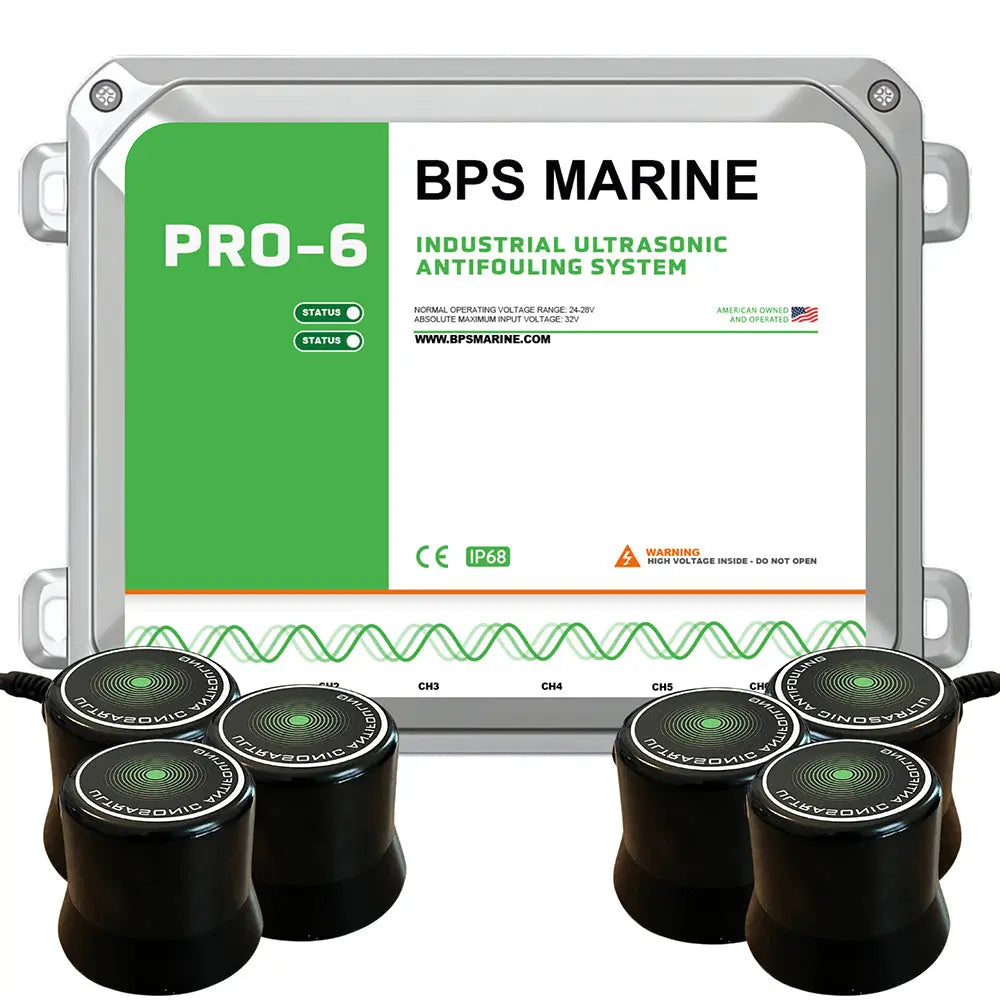

PRO-6 6-Transducer Ultrasonic Antifouling System - 24VDC
The PRO-6 is a six-transducer system that can add antifouling protection to hulls, drives, rudders, stabilizers, and more. This single system can provide ultrasonic antifouling protection for hulls up to 75ft in length or can be combined with additional systems for larger vessels. The PRO-6 is also the perfect solution for vessels under 60 with pods or stern drives to have one system covering the entire vessel.
The PRO-6 Package Includes:
- 1x PRO-6 Control Module with Integrated Power Cable
- 6x Submersible Ultrasonic Transducers with 15ft of Cable
- 3x Additional 15ft Extension Cables
- 2x Epoxy Kits
- 1x Printed Installation and Operation Manual
Specifications:
- Voltage: 24V DC
- Average Power Draw: 1.5Ah
- Transducer Strength: 120W
- Cable Length: 15ft per transducer
- Frequency: Multi-frequency ultrasonic sweep algorithm (20kHz-42kHz)
Installation Overview:
- No Thru-Hulls: The transducers are installed directly on top of your hull surface using the provided epoxy.
- Install Signal Cable: Each transducer has 15ft of connected signal cable. This ensures an easy installation from the transducer to the controller.
- Mounting the Controller: The BPS-1 Controller runs off of your boats existing house battery. It is a simple 2-wire connection the the battery bank or distribution panel.
- Enjoy Worry-Free Boating: Thats it! Your BPS system is done! Let our advanced antifouling protection do its job. Each system is programmed with a multi-frequency sweeping algorithm to ensure that your boat has the best antifouling protection on the market.
How the Technology Works:
- The Mechanism: The system emits high-frequency ultrasonic waves through the hull drives, creating a microscopic barrier of resonance.
- Targeting the Root Cause: These ultrasound waves repel biofouling from attaching to your hull before they ever have the chance to attach.
- Eco-Friendly: 100% chemical-free. It does not leach pollutants into the water, making it safe for marinas with strict environmental regulations.
- Marine Life Safe: The frequencies used are outside the hearing range of marine mammals and humans.
Benefits:
- Fuel Efficiency: A clean hull creates less drag. Maintaining hull smoothness ensures you get the best possible MPG and top speed.
- Reduced Maintenance Costs: Significantly extends the life of your bottom paint and reduces the frequency of expensive haul-outs.
- Diver Savings: Reduces the need for monthly hull cleaning services.
- Hard-to-Reach Protection: Unlike paint, ultrasonic waves resonate through complex parts that are difficult to paint and clean, such as stern drives, sea strainers, and rudders.
- Fit Forget: Once installed, the system runs automatically with zero scheduled maintenance required.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
The BPS Marine PRO-6 system offers an advanced ultrasonic antifouling solution designed to protect vessels up to 75 feet long. Featuring six submersible transducers, this system provides comprehensive coverage for hulls, drives, rudders, and stabilizers. Its multi-frequency ultrasonic sweep (20kHz-42kHz) creates a microscopic resonance barrier that effectively prevents biofouling from attaching before it begins, ensuring your vessel stays cleaner longer and performs optimally. Installation is straightforward, with transducers mounted directly on the hull using epoxy, eliminating the need for through-hulls, and the control module connects easily to your boat’s existing 24V DC power supply with minimal wiring. Once installed, the system operates automatically, requiring no scheduled maintenance and delivering consistent, eco-friendly antifouling protection without chemicals or pollutants. This technology is safe for marine life and compliant with environmental standards, making it suitable for marinas with strict regulations. Benefits include improved fuel efficiency by maintaining hull smoothness, reduced maintenance costs by extending bottom paint life, and fewer hull cleaning requirements. The ultrasonic waves penetrate complex parts such as stern drives and rudders, which are traditionally difficult to protect with paint, providing comprehensive coverage across the entire vessel. The package includes all necessary components, including the control module, six transducers with 15-foot cables, extension cables, epoxy kits, and a detailed manual, facilitating easy installation and reliable operation. Designed with simplicity and performance in mind, the BPS Marine PRO-6 ensures long-lasting antifouling protection, saving time and money while supporting environmentally responsible boating. Whether for a small boat or a larger vessel, this ultrasonic system offers an effective, maintenance-free solution that enhances vessel performance and longevity.
Features:
- Six ultrasonic transducers with 15ft cables for comprehensive hull coverage
- Multi-frequency ultrasonic sweep (20kHz-42kHz) for effective biofouling prevention
- Simple installation with direct hull mounting using epoxy, no thru-hulls required
- Automatic operation with no scheduled maintenance needed
- Eco-friendly and chemical-free technology safe for marine life and compliant with environmental standards
- Compatible with vessels up to 75 feet in length, ideal for both small and large boats
- Low power consumption at 1.5Ah average draw for efficient operation
- Easy connection to existing 24V DC boat power systems
- Includes epoxy kits, extension cables, and detailed manual for straightforward setup
- Designed to reduce fuel consumption, maintenance costs, and hull cleaning frequency
