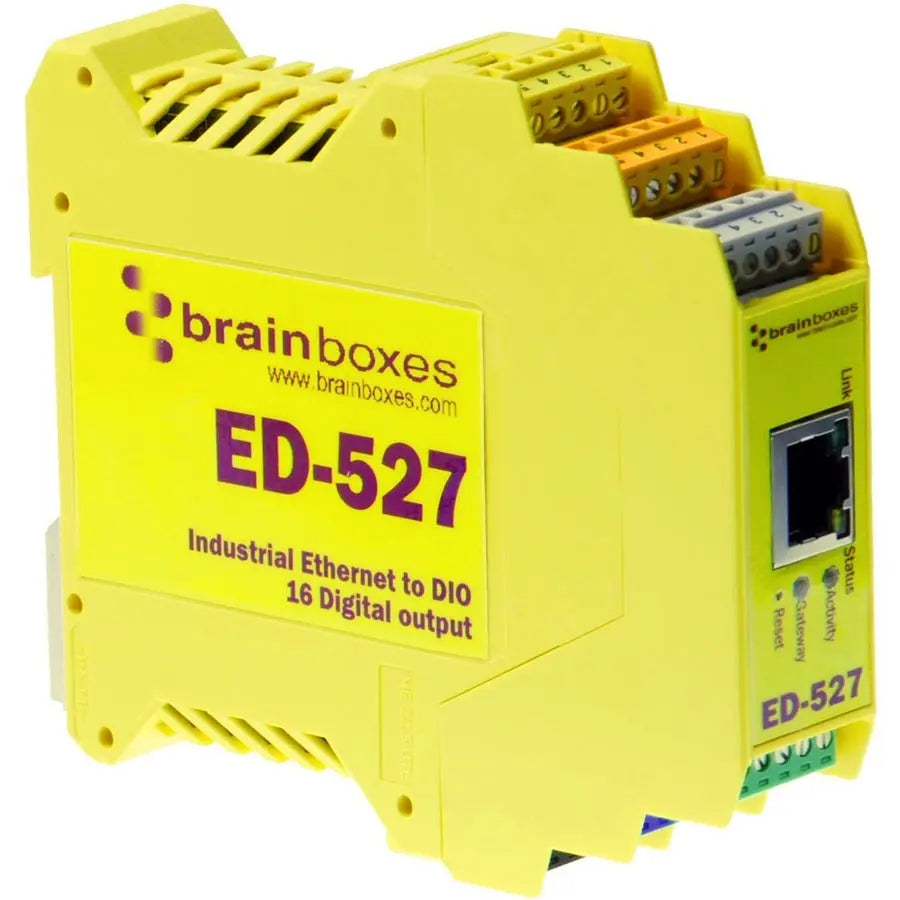

Brainboxes ED-527 Ethernet to 16 Digital Outputs + RS485 Gateway

Brainboxes - Ethernet to 16 Digital Outputs + RS485 Gateway

The Brainboxes ED-527 Ethernet to Digital Outputs and RS485 Gateway is a robust industrial device designed for factory floor automation and process control. It features 16 non-isolated digital output channels, each group of 4 sharing a common rail, capable of driving loads such as motors, relays, LEDs, and heaters. Its protected output circuits provide overload, short circuit, surge, over-temperature, and open circuit protections, ensuring reliable operation in demanding environments. The device is suitable for controlling high inrush loads like cold lamps, motors, and capacitive or inductive devices, making it ideal for applications involving AC or DC motor switching, pumps, fans, and voltage regulators.

Features:

• Software APIs for Visual Basic, C#, and more

• -30°C to +80°C temperature operating range

• Supports simple ASCII commands or industry-standard Modbus TCP

• Control outputs from TTL signals to high voltage, high current industrial devices

• Designed for factory environment with integrated DIN rail mounting

• 16 digital outputs and a RS485 gateway port for versatile connectivity
