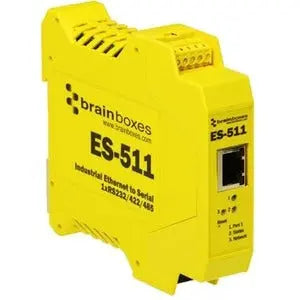

Brainboxes ES-511 Industrial Ethernet to Serial Converter - 1 Port RS232/422/485 with DIN Rail Mount

Brainboxes Industrial Ethernet to Serial 1xRS232/422/485

The Brainboxes ES-511 is a robust industrial Ethernet to serial device server designed for demanding environments. Featuring a slim, durable design with an integrated DIN rail mount, this converter provides reliable serial communication over Ethernet with a single port configurable as RS-232, RS-422, or RS-485 (full or half duplex). Its construction ensures seamless integration into industrial setups, with screw terminal blocks for straightforward wiring and a compact form factor suitable for space-constrained installations. Operating efficiently across a wide temperature range from -30°C to +80°C (-22°F to +176°F), the ES-511 is built to withstand harsh conditions typical of industrial environments. It is powered by a dual input voltage of +5VDC to +30VDC, with reverse polarity protection, ensuring stable operation even in challenging power scenarios. Data transfer rates reach up to 1,000,000 baud (1 MegaBaud), supporting high-speed data exchange essential for real-time applications. Users can select standard baud rates such as 9,600, 115,200, 230,000, or 921,600, or define custom settings for specific requirements. The device supports virtual COM port installation, enabling seamless communication over TCP/IP networks or through software APIs compatible with Visual Basic, C#, and other development environments. The serial port tunneling feature allows cable replacement over any distance without additional software, simplifying remote device management and troubleshooting. The ES-511 comes with installation software, drivers, manuals, and a quick start guide, ensuring ease of setup and operation. Its environmentally friendly design complies with WEEE directives and is TAA compliant, making it suitable for government and enterprise applications. Whether used to replace traditional serial connections or integrate serial devices into Ethernet networks, the Brainboxes ES-511 offers a reliable, high-performance solution for industrial automation, data acquisition, and control systems.

Features:

• Robust, Slim Design with Integrated DIN rail mount for easy installation

• -30°C to +80°C (-22°F to +176°F) operating temperature range suitable for industrial environments

• Supports data transfer rates from 110 to 1,000,000 baud (1 MegaBaud), with removable, color-coded terminal blocks

• Enables virtual COM port installation, TCP/IP communication, and software API integration for Visual Basic, C#, and more

• Serial Port Tunnelling feature allows cable replacement over any distance without software, ideal for remote deployments

• Single port configuration supporting RS-232, RS-422, or RS-485 (full or half duplex), providing flexible serial communication options
