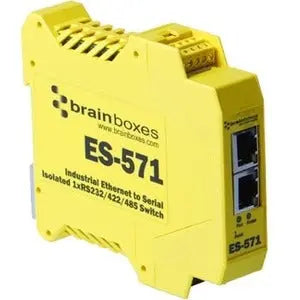

Brainboxes ES-571 Industrial Ethernet to Serial Device Server with 1 RS-232/422/485 Port and Ethernet Switch

Brainboxes Isolated Industrial Ethernet to Serial 1xRS232/422/485 + Ethernet Switch

The Brainboxes ES-571 is a robust industrial-grade Ethernet to serial device server designed for demanding environments. Featuring a slim, DIN rail mountable case, it offers an integrated design that simplifies installation and reduces space requirements. The device provides a versatile serial port configurable as RS-232, RS422, or RS485, with software-selectable full or half duplex modes. Its dual Ethernet ports enable daisy chaining of multiple devices, facilitating seamless network expansion and infrastructure upgrades. With removable, color-coded terminal blocks, wiring is straightforward, making installation quick and reliable. The ES-571 supports data transfer rates up to 1 MegaBaud, ensuring high-speed communication, and includes line drivers capable of 1 Mbit/sec for optimal performance. Operating effectively within a temperature range from -30 to +80 degrees Celsius, it is suitable for industrial environments where temperature extremes are common. The device features four separate power domains with galvanic isolation, providing increased reliability and noise immunity. Its power supply accepts +5VDC to +30VDC with reverse polarity protection, allowing flexible integration into existing power systems. The serial port can connect to a variety of industrial devices, and the Ethernet switch functionality enables network daisy chaining for simplified topology. The device supports virtual COM port installation in Windows, TCP/IP tunneling over Ethernet, and offers APIs compatible with Visual Basic, C#, and other software platforms, enabling versatile application development and integration. Additionally, the ES-571 adheres to environmental standards such as WEEE and is TAA compliant, making it suitable for government and industrial procurement. The package includes the device, an installation CD with manual, signed drivers and utilities, and a quick start guide. Backed by a lifetime warranty, the Brainboxes ES-571 is a reliable choice for industrial serial device connectivity and network extension, providing high performance and ease of use in complex environments.

Features:

• Robust, slim design with integrated DIN rail mount for easy installation

• -40°C to +80°C (-40°F to +176°F) operating temperature range for industrial environments

• Supports data rates from 110 to 1,000,000 baud with removable, color-coded terminal blocks for simplified wiring

• Enables installation of virtual COM ports in Windows, Ethernet tunneling between devices, TCP/IP communication, and software API access for development in Visual Basic, C#, and more

• Daisy chain Ethernet connection capability for network expansion

• One serial port configurable as RS-232, RS422, or RS485, plus Ethernet switch functionality for device networking
