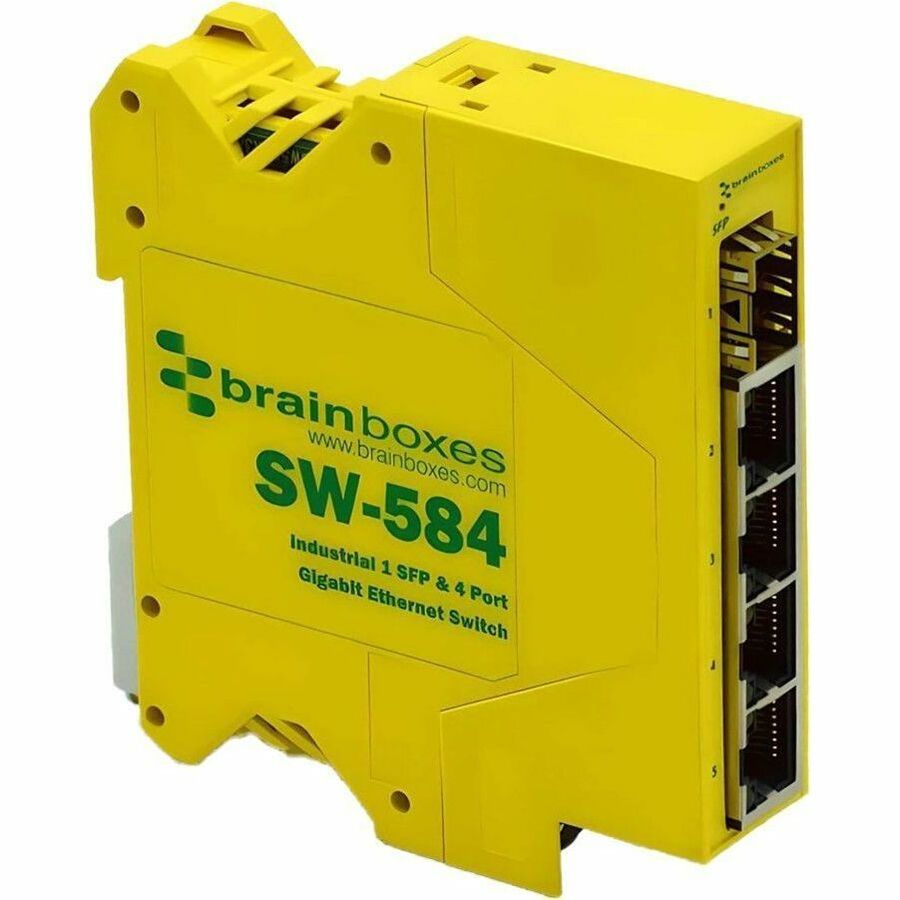

Brainboxes SW-584 1 SFP and 4-Port Industrial Gigabit Ethernet Switch

Brainboxes 1 SFP & 4 Port Gigabit Ethernet Switch

The Brainboxes SW-584 is a compact industrial Gigabit Ethernet switch with one SFP port and four copper Ethernet ports. Designed for dependable network expansion, it provides a fast, cost-effective, and future-ready way to connect long network segments across factory floors, vehicles, marine systems, and other demanding installations.

With support for 10/100/1000 Mbps automatic speed detection, the SW-584 connects with a broad range of fiber optic and copper cable types for high-speed data transmission over extended distances. Fiber connectivity can also help reduce susceptibility to electromagnetic interference, making this switch suitable for electrically noisy industrial environments. Jumbo Frame support up to 9K frames helps accommodate efficient data transfer for compatible network applications.

Built for harsh operating conditions, the Brainboxes SW-584 supports an industrial temperature range from -40°F to 176°F. Galvanically isolated Ethernet ports help protect connected equipment, while SFP port power overcurrent protection adds an additional layer of operational safety. Dual-input redundant power and a wide voltage range allow flexible installation, including USB power or connection to a 24V factory-floor supply. The removable power terminal uses numbered pins for straightforward wiring, and power consumption is optimized according to connected link status.

No software configuration is required, helping simplify deployment and maintenance. An integral DIN rail mount supports clean, space-efficient installation in control cabinets and industrial enclosures. The Brainboxes SW-584 includes a Quick Start Guide and is backed by a lifetime limited warranty.

Features:

• Fast, cost-effective, future-ready deployment for long network segments
• One SFP port and four Gigabit Ethernet ports for fiber and copper connectivity
• Automatic 10/100/1000 Mbps data transmission speed detection
• High-speed network connection over extended distances
• Fiber connectivity helps reduce susceptibility to electromagnetic interference
• Industrial operating temperature range from -40°F to 176°F
• Jumbo Frame support up to 9K frames
• Galvanically isolated Ethernet ports
• Dual-input redundant power with a wide voltage range
• USB or 24V factory-floor power compatibility
• Removable power terminal with numbered pins for easy wiring
• Integral DIN rail mount for industrial installations
• SFP port power overcurrent protection
• Power consumption optimized according to link status
• No software required for operation
