Brainboxes SW-725 Hardened Industrial 5 Port PoE+ 10/100 Ethernet Switch

Brainboxes Hardened Industrial 5 Port PoE+ 10/100 Ethernet Switch

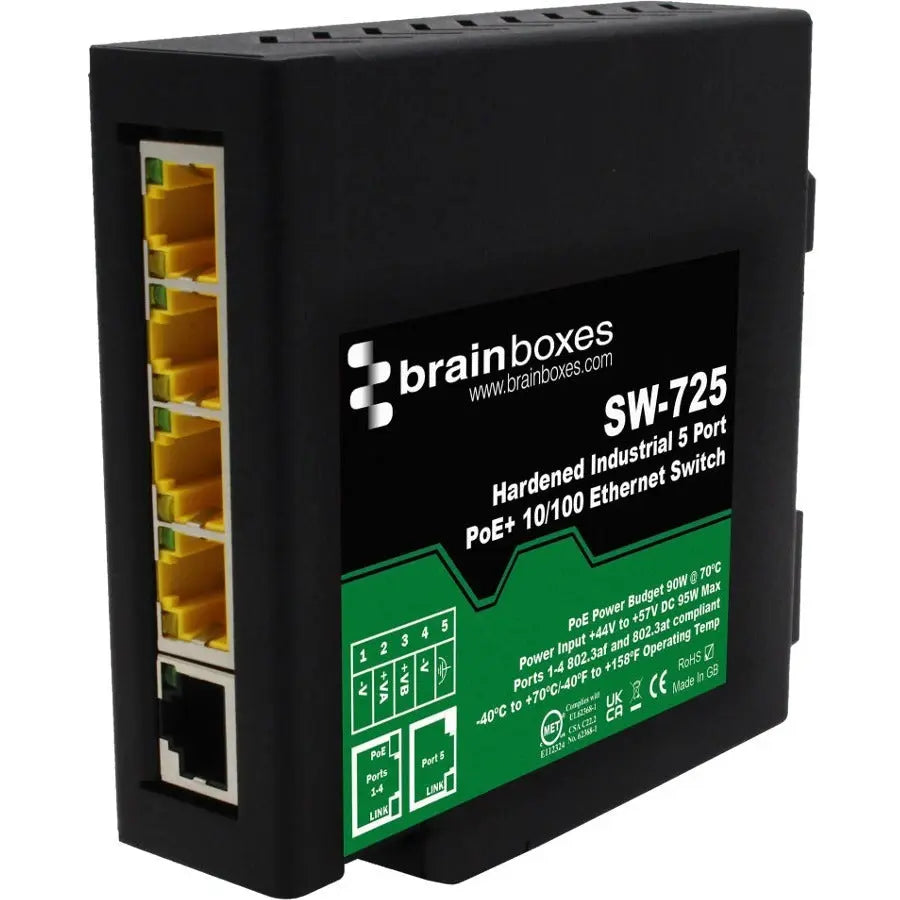

The Brainboxes SW-725 is a robust, industrial-grade Ethernet switch designed to deliver reliable network connectivity in harsh environments. This compact device features five ports, with four ports supporting Power over Ethernet Plus (PoE+) capabilities, allowing seamless power and data transmission over a single Ethernet cable. Each of these ports complies with IEEE 802.3af/at standards, providing up to 30W of power per port, making it compatible with a wide range of PoE-powered devices such as CCTV cameras, Wi-Fi access points, and VoIP phones. The integrated PoE power budget of 90W at operating temperatures up to 70°C ensures that multiple devices can be powered simultaneously without concern for overloads or power shortages. Its galvanically isolated Ethernet ports facilitate reliable data transfer at 10/100 Mbps, essential for mission-critical industrial applications. The switch is powered via dual redundant inputs, supporting a wide voltage range from +44V to +57V DC, and features a removable power terminal with numbered pins for straightforward wiring. Designed for extreme environments, it operates efficiently within a temperature range of -40°C to +70°C, making it ideal for factory floors, outdoor installations, or other demanding settings. The SW-725 is environmentally friendly, TAA compliant, and adheres to the Waste Electrical and Electronic Equipment Directive (WEEE), reflecting its eco-conscious manufacturing standards. Easy to install and requiring no software configuration, this Ethernet switch offers a reliable, long-term solution for industrial networking needs. It comes with a lifetime warranty, ensuring peace of mind and ongoing support for critical infrastructure. The package includes the switch and a quick start guide, making deployment straightforward. With its rugged construction and versatile features, the Brainboxes SW-725 is an excellent choice for expanding industrial network capabilities while maintaining high standards of performance and durability.

Features:

• Allows power and data to be combined on the same Ethernet cable

• Ports 1-4 PoE+ capable

• Ports 1-4 IEEE 802.3af/at compliant: deliver up to 30W to each port (backwards compatible)

• PoE Power Budget: 90W at 70°C between all 4 PoE ports simultaneously

• Redundant dual power inputs: +44V to +57V DC

• Industrial operating temperature range from -40°C to +70°C / -40°F to +176°F
