C.E. Smith Swivel Bracket Kit Part Number 10205GA for Trailer Bunk Mounting

Swivel Bracket Kit

Galvanized swivel top brackets provide vertical and tilting adjustments for trailer bunks.

Swivel Brackets for mounting Bunk Boards to Bolster Brackets.

Features:

• Bunk flange holes 3/8" dia.
• Bunk flange 1-3/8" x 3-1/2"
• Swivel flange hole 1/2" dia.
• Swivel flange 2" tall x 3-1/2"
• 2-1/2" bunk flange hole centers 1 hole centered
• 10 gauge material

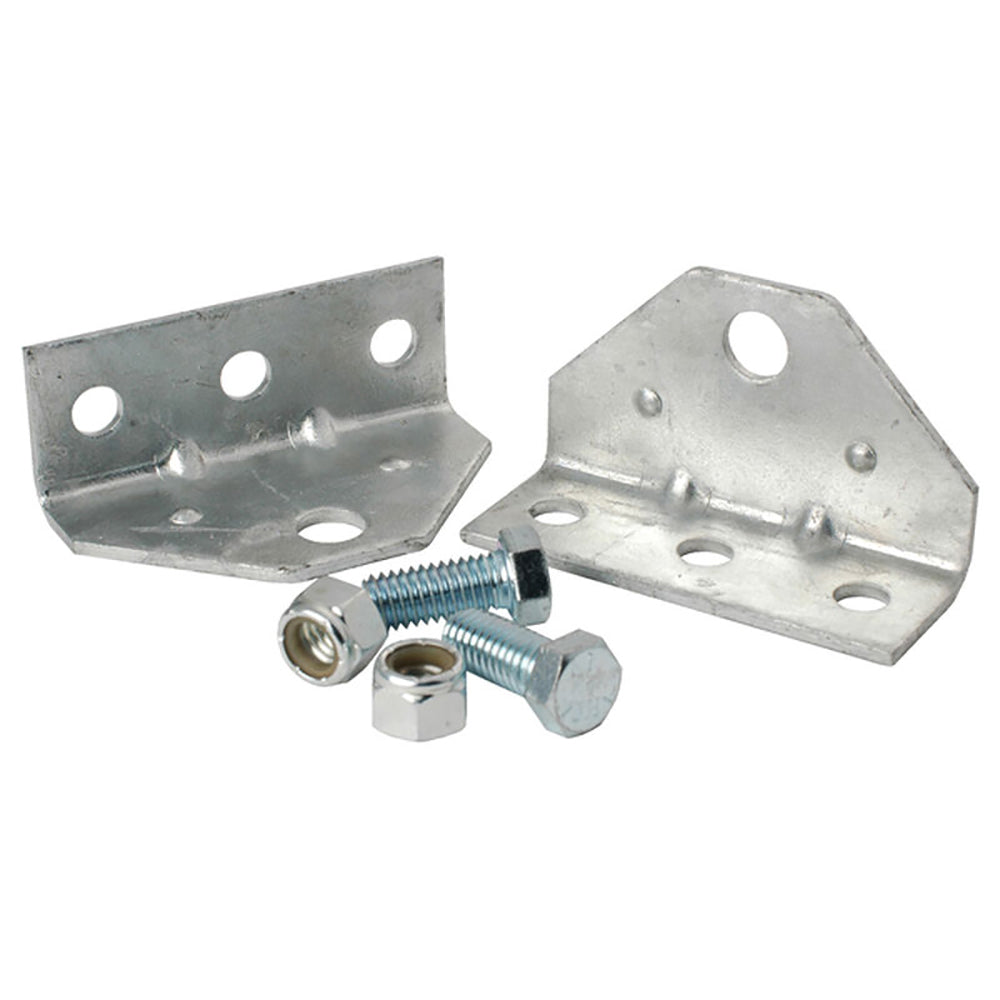

*Sold as kit with (2) brackets, (2) 7/16" x 1" head cap screws, and (2) 7/16" nylon lock nuts.

The C.E. Smith Swivel Bracket Kit, part number 10205GA, is designed to provide versatile mounting options for trailer bunks with adjustable tilting and vertical positioning. Made from durable 10-gauge galvanized steel, these brackets ensure long-lasting performance in marine environments. Each kit includes two brackets, two 7/16" x 1" head cap screws, and two 7/16" nylon lock nuts, facilitating straightforward installation and secure attachment to your trailer frame.

The swivel brackets feature a 1/2" diameter swivel flange hole and measure 2" tall by 3-1/2" in width, offering flexibility in positioning. The bunk flange holes are 3/8" in diameter, with centers spaced 2-1/2" apart, and the flange itself measures 1-3/8" by 3-1/2" to match standard bunk board dimensions. These specifications ensure compatibility with various trailer configurations, allowing for customized alignment and optimal support for your boat or cargo.

Designed for ease of use, the galvanization process enhances corrosion resistance, making these brackets suitable for outdoor and marine environments. Their robust construction and adjustable features help improve trailer stability and loading efficiency. Whether you're replacing worn brackets or outfitting a new trailer, the C.E. Smith Swivel Bracket Kit offers a reliable and straightforward solution for secure bunk mounting and adjustment. This kit is ideal for boat trailers, utility trailers, and other applications requiring durable, adjustable support brackets.

Features:

• Galvanized steel construction for corrosion resistance

• Includes two brackets with swivel and tilt adjustment

• Bunk flange holes are 3/8" in diameter for secure mounting

• Swivel flange features a 1/2" diameter hole for versatile positioning

• Bunk flange dimensions of 1-3/8" x 3-1/2" for compatibility

• Height of brackets is 2" for optimal clearance

• Center-to-center bunk flange hole spacing of 2-1/2"

• Sold as a kit with mounting hardware for easy installation
