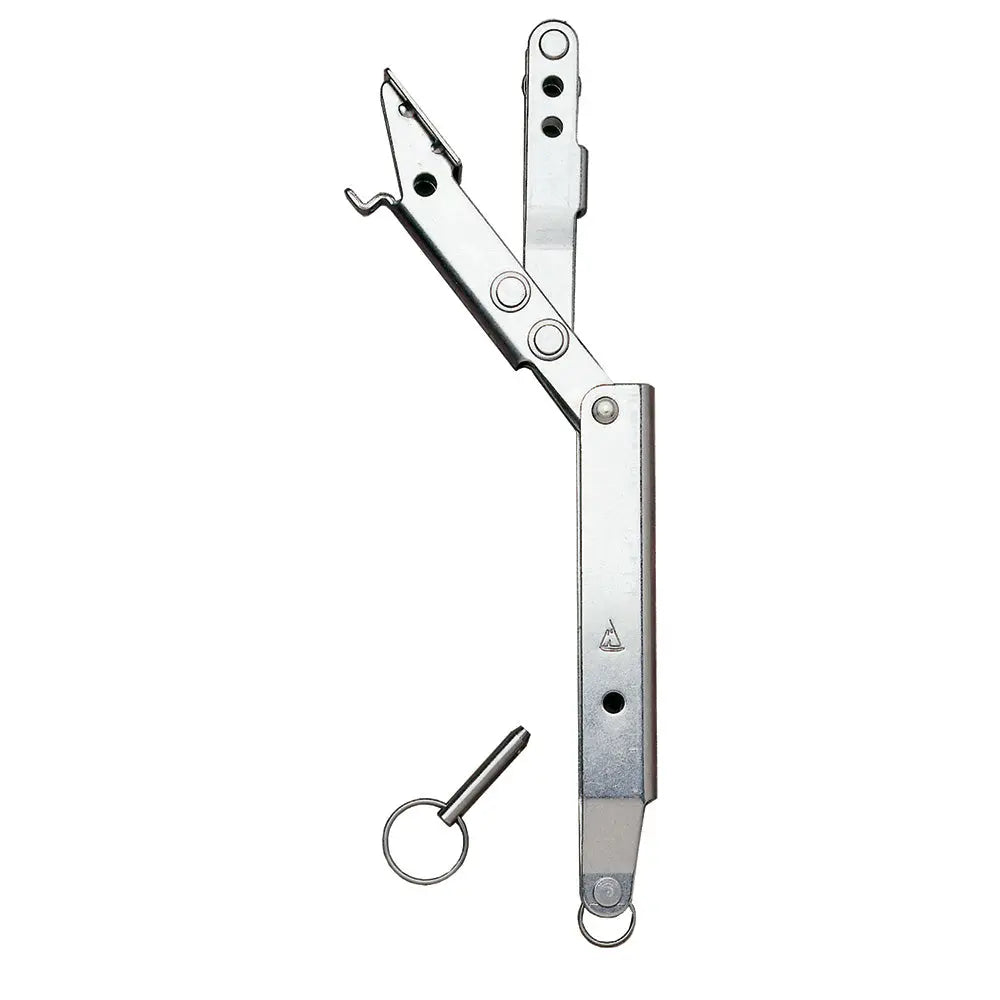

C. Sherman Johnson Quick Release Lever with 1/4-inch Pin for Marine and Sailing Applications

Quick Release Lever - 1/4 Pin

The Johnson Hyfield-type lever has several very practical features that have been developed after extensive testing on both high-performance multi-hulls and monohulls. The fitting is rugged, having an ultimate strength of 2500 lbs. A positive stop is provided to prevent jamming fingers between the fitting and wire when thrown open under load and the large surface area of the push pad makes it easier to close the lever under load. Lever take-up is 2-1/8 to an over-center position and comes with a quick-release pin for positive locking. The extender arm may be had in either 1/4 or 5/16 pin size. This is an essential piece of hardware on Catamaran shrouds to allow the crew to right the boat after a capsize. Without it, another boat or extraordinary effort is required. Trailer-able boats up to 26 feet find that a lever on the forestay greatly facilitates stepping and unstepping the mast.

Specifications:

• Approximate breaking strength = 2,500lbs
• Safe working load = 1000lbs
• Extender number of holes = 3

The C. Sherman Johnson Quick Release Lever with 1/4-inch pin is a highly durable and reliable hardware component designed for marine and sailing use. Engineered with extensive testing on both high-performance multi-hulls and monohulls, this lever combines rugged construction with practical features to ensure safety and ease of operation. Its ultimate strength of 2,500 lbs provides a robust hold, while a positive stop prevents finger jamming when the lever is thrown open under load. The large push pad surface facilitates smoother closing under tension, making it user-friendly even in challenging conditions. The lever's take-up of 2-1/8 inches to an over-center position ensures secure engagement, and the quick-release pin offers positive locking for added safety. The extender arm is available with either 1/4-inch or 5/16-inch pins, providing versatility for various setups. This hardware is essential on catamaran shrouds, allowing crews to right the boat after a capsize efficiently, reducing the effort required and preventing the need for external assistance. Additionally, trailerable boats up to 26 feet benefit from the ease of stepping and unstepping the mast with this lever installed on the forestay, simplifying rigging tasks and enhancing overall safety and convenience.

Features:

• Quick-release lever with positive locking for secure operation

• Ultimate strength of 2,500 lbs with a safe working load of 1,000 lbs

• Positive stop feature prevents finger jamming during operation

• Large push pad surface for easier closing under load

• Adjustable take-up of 2-1/8 inches to over-center position

• Extender arm available in 1/4-inch or 5/16-inch pin sizes

• Designed for use on catamaran shrouds and trailerable boats up to 26 feet

• Rugged construction tested on high-performance marine vessels
