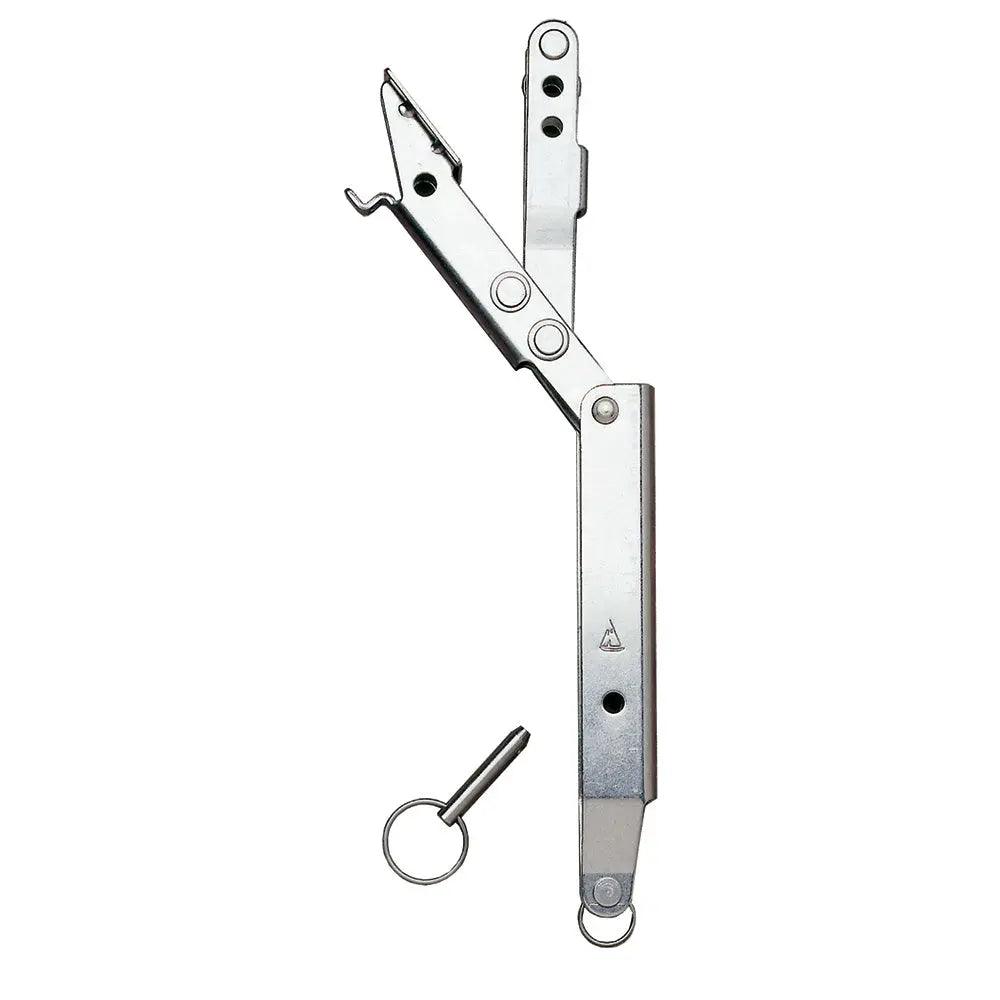

C. Sherman Johnson Quick Release Lever with 5/16-inch Pin for Sailboat Mast and Rigging

Quick Release Lever - 5/16 Pin

The Johnson Hyfield-type lever has several very practical features that have been developed after extensive testing on both high-performance multi-hulls and monohulls. The fitting is rugged, having an ultimate strength of 2500 lbs. A positive stop is provided to prevent jamming fingers between the fitting and wire when thrown open under load and the large surface area of the push pad makes it easier to close the lever under load. Lever take-up is 2-1/8 to an over-center position and comes with a quick-release pin for positive locking. The extender arm may be had in either 1/4 or 5/16 pin size. This is an essential piece of hardware on Catamaran shrouds to allow the crew to right the boat after a capsize. Without it, another boat or extraordinary effort is required. Trailer-able boats up to 26 feet find that a lever on the forestay greatly facilitates stepping and unstepping the mast.

Specifications:

• Approximate breaking strength = 2,500lbs
• Safe working load = 1000lbs
• Extender number of holes = 3

The C. Sherman Johnson Quick Release Lever with 5/16-inch pin is a durable and reliable hardware component designed for marine applications, particularly on catamarans and trailerable boats up to 26 feet. Constructed with rugged materials, this lever boasts a maximum strength of approximately 2,500 pounds, ensuring safety and stability during sailing and rigging operations. Its positive stop feature prevents finger jamming when the lever is thrown open under load, enhancing safety during adjustments or emergencies. The large push pad surface allows for easy operation even under tension, facilitating quick and secure engagement or release of the rigging. Featuring a lever take-up of 2-1/8 inches to an over-center position, it ensures firm locking, while the included quick-release pin provides positive locking to prevent accidental disengagement. The extender arm is available with either a 1/4-inch or 5/16-inch pin, offering versatility for various rigging configurations. This hardware is essential for catamaran shrouds, enabling the crew to right the boat after a capsize without requiring external assistance or additional effort. Additionally, the lever simplifies stepping and unstepping the mast on trailerable boats, making it a convenient and practical choice for sailors seeking efficiency and safety in their rigging setup.

Features:

• Quick Release Lever with positive stop for safe operation

• Maximum breaking strength of approximately 2,500 lbs

• Safe working load of 1,000 lbs

• Extender arm available with 1/4-inch or 5/16-inch pin

• Large push pad surface for easy handling under load

• Lever take-up of 2-1/8 inches to over-center position

• Includes quick-release pin for positive locking

• Ideal for catamaran shrouds and trailerable boats up to 26 feet
