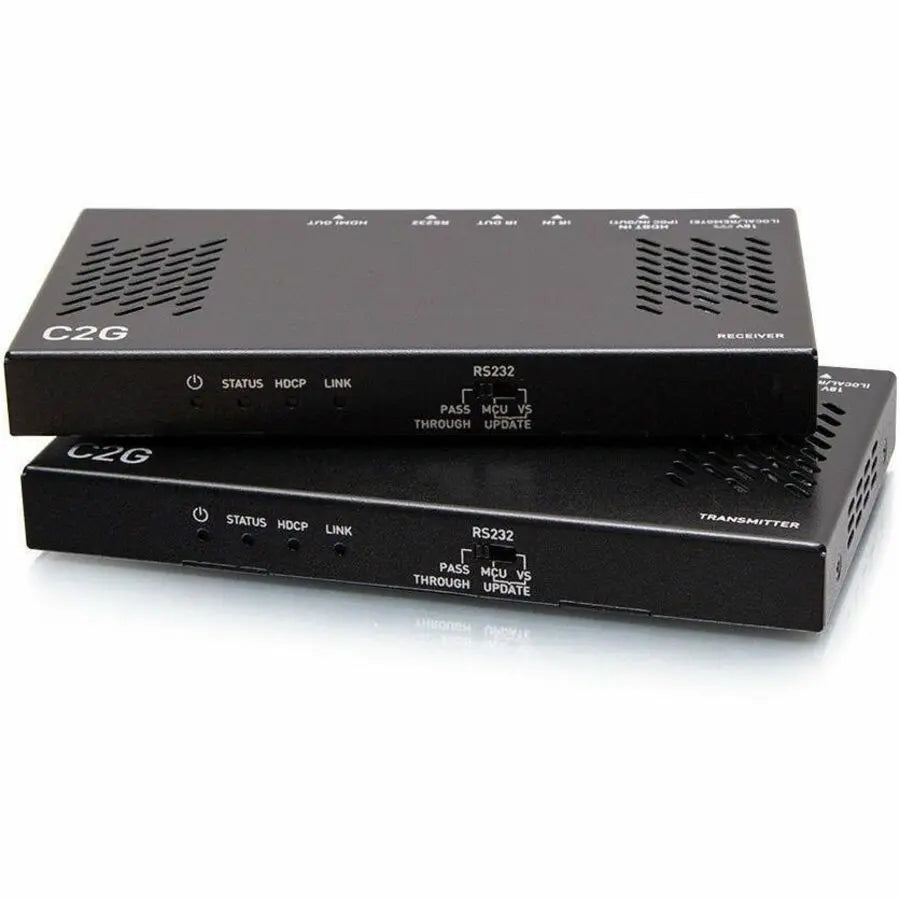

C2G 4K HDMI HDBaseT Extender Set with RS232 & IR Over Cat6a - Supports 18Gbps and 60Hz 4K Video

C2G HDMI HDBaseT + RS232 and IR over Cat Extender Box Transmitter to Box Receiver (18Gbps) - 4K 60Hz

The C2G 4K HDMI HDBaseT Extender Set, part number C2G30026, provides a reliable solution for extending high-definition video and audio signals over long distances using a single Ethernet cable. Designed for professional installations in conference rooms, classrooms, lecture halls, and commercial environments, this extender supports 4K resolution at 60Hz with 4:4:4 chroma subsampling, delivering crystal-clear images up to 328 feet when using a Cat6a cable. It also supports 1080p signals up to 328 feet with Cat5e/6 cables, offering versatile options for different setup requirements.

The set includes a transmitter and receiver that utilize HDBaseT technology with a VS100 chipset, simplifying installation and ensuring high performance. Features like Visual Lossless Compression (VLC) guarantee that compressed video data appears identical to uncompressed signals, maintaining image quality without artifacts. HDCP 2.2 compliance ensures secure, protected content transmission, making this extender suitable for encrypted content and protected streams.

Advanced features include support for multi-channel audio formats such as PCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X, ensuring immersive audio experiences. The system supports EDID management from the HDMI output, as well as CEC pass-through, allowing centralized control of connected devices. Bi-directional IR and RS232 pass-through capabilities enable remote control and device management, while bi-directional Power over Cable (PoC) reduces clutter by powering both units from a single power source. The compact design and lightweight construction make this extender ideal for discreet, professional installations.

Built with environmentally friendly components and compliant with REACH standards, the C2G 4K HDMI HDBaseT Extender set offers durability and sustainability. With a five-year limited warranty, it provides peace of mind for demanding commercial applications. Whether you need to extend high-definition signals over long distances or integrate complex control systems, this extender set provides a robust, high-performance solution that ensures seamless connectivity across your AV setup.

Features:

• Extend 4K at 30Hz (4:4:4) up to 328 feet with Cat 6a cable

• Extend 4K at 30Hz (4:4:4) up to 230 feet and 1080p at 60Hz up to 328 feet with Cat 5e/6 cable

• Supports Visual Lossless Compression (VLC) solution through HDBaseT

• HDCP 2.2 compliant, ensuring secure content transmission

• Supports multi-channel audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X

• Supports EDID management from HDMI output

• Supports CEC pass-through for centralized device control

• Supports bi-directional RS232 pass-through for device management

• Supports bi-directional IR pass-through for remote control signals

• Supports bi-directional Power over Cable (PoC), allowing one power adapter to energize both units

• Utilizes HDBaseT VS100 chipset for simplified setup and reliable performance
