C2G C2G31011 Ultra-Slim HDBaseT HDMI, USB-C, USB and RS232/IR Extender over Cat

The HDMI HDBaseT + USB-C, 3.5mm, and USB-B to A over Cat Extender Dual Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where USB must be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling.

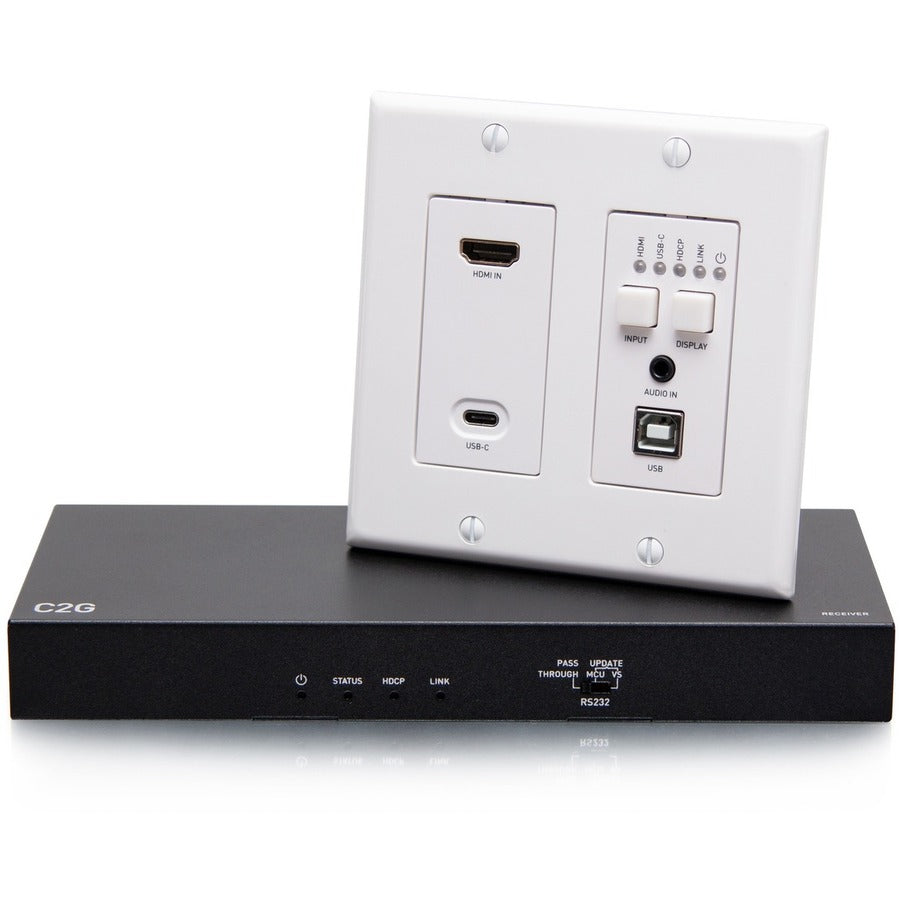

The C2G C2G31011 Ultra-Slim HDBaseT HDMI Extender system includes a dual-gang wall plate transmitter and box receiver for extending 4K video, USB-C, USB data, audio, IR and RS232 control over a single Cat5e, Cat6 or Cat6a cable. Designed for conference rooms, classrooms, lecture halls, interactive whiteboards and professional AV installations, it provides a practical alternative when standard HDMI cables cannot reach the display. The transmitter supports HDMI and USB-C video sources, while the USB-B to USB-A connection enables data connectivity for peripherals such as cameras, keyboards and mice.
The system extends 4K at 60Hz with 4:2:0 color sampling up to 130 feet over Cat6a cable, or up to 115 feet over Cat5e or Cat6 cable. Full HD 1080p at 60Hz can travel up to 230 feet over Cat6a or up to 200 feet over Cat5e or Cat6. HDCP 2.2 compliance helps maintain a secure connection between the source and display, while CEC pass-through enables centralized control of compatible HDMI equipment. Automatic source switching connects the active display system to the last active input.
For complete installation control, the C2G C2G31011 supports one-way analog audio pass-through, bi-directional IR and RS232 pass-through, and high-speed USB 2.0 extension over HDBaseT. Power over HDBaseT allows the receiver to power the wall plate transmitter, eliminating the need for a separate transmitter power adapter and simplifying cable management. Firmware can be upgraded through the transmitter's front-panel Micro-USB port and the receiver's rear-panel RS232 port. The black faceplate design integrates cleanly into installed AV systems and is backed by a 3-year limited warranty.

Features:

• 4K Extension: Extends 4K at 60Hz with 4:2:0 color sampling up to 130 feet over Cat6a cable.

• Full HD Extension: Extends 1080p at 60Hz up to 230 feet over Cat6a cable.

• Cat5e/Cat6 Compatibility: Extends 4K at 60Hz up to 115 feet and 1080p at 60Hz up to 200 feet over Cat5e or Cat6 cable.

• USB-C and USB Data: Supports USB-C video and high-speed USB 2.0 data pass-through for cameras, keyboards, mice and other peripherals.

• HDCP 2.2 Compliance: Helps create a secure connection between the source and display.

• CEC Pass-Through: Enables centralized control of compatible HDMI devices.

• Control Pass-Through: Supports bi-directional IR and RS232 pass-through for integrated AV management.

• Power over HDBaseT: Allows the receiver to power the wall plate transmitter without a separate transmitter power adapter.
