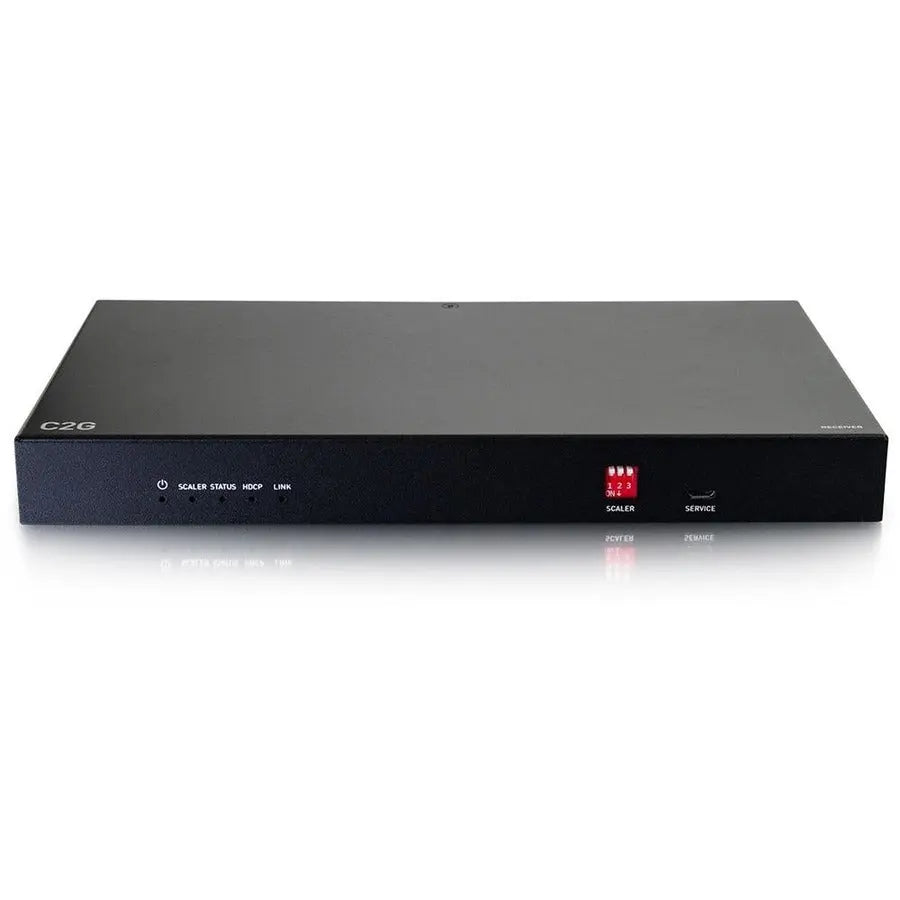

C2G HDMI HDBaseT + RS232 & IR Over Cat Extender Receiver – 4K 60Hz Support

C2G HDMI HDBaseT + RS232 and IR over Cat Extender Box Scaling Receiver - 4K 60Hz

The C2G HDMI HDBaseT + RS232 and IR over Cat Extender Box Scaling Receiver offers a reliable solution for extending high-resolution HDMI signals over long distances using standard Ethernet cables. Capable of transmitting 4K video at 60Hz with 4:2:0 chroma subsampling up to 115 feet, and 4K at 30Hz with 4:4:4 chroma up to 328 feet when using Cat6a cables, this device is ideal for conference rooms, classrooms, and other large-scale AV installations. The built-in scaler ensures that the HDMI output can be configured for optimal resolution, providing flexibility across various display setups. The device's HDCP 2.2 compliance guarantees secure content protection, making it suitable for high-definition digital content.

This receiver supports audio de-embedding via S/PDIF and analog stereo outputs, allowing seamless integration with external audio systems. Thanks to the one-way PoC feature, power is supplied to the transmitter via the Ethernet cable, eliminating the need for a separate power supply and simplifying installation. The RS232 port facilitates device control and bi-directional communication, enabling remote management of connected displays and AV equipment. Additionally, bi-directional IR pass-through allows remote control signals to be transmitted both ways, further enhancing system flexibility. Firmware updates can be performed easily via the Micro USB port, ensuring the device remains current with the latest features and security enhancements.

Designed with a compact profile and finished in black, the C2G HDMI HDBaseT receiver is built for durability and professional use. Its robust chipset and comprehensive feature set make it a versatile component for extending high-quality AV signals over long distances without signal degradation. Supported by a three-year warranty from Legrand, this extender guarantees long-term reliability and performance for demanding AV environments.

Features:

• C2G HDMI HDBaseT + RS232 + IR over Cat Extender Box Scaling Receiver

• Extend 4K at 30Hz (4:4:4) up to 328ft with Cat 6a cable

• Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable

• Supports scaling resolution configuration for the HDMI output through DIP Switch and API commands

• Built-in scaler supports up to 4K at 60Hz

• HDCP 2.2 compliant for secure content transmission

• Audio de-embedded output with S/PDIF and analog stereo options from HDMI signal

• RS232 port available for device control or bi-directional RS232 pass-through

• Supports bi-directional IR pass-through for remote control signals

• One-way PoC provides power to the transmitter via Cat cable, eliminating extra power adapters

• Supports firmware upgrade via the Micro USB port for easy updates

• Equipped with HDBaseT chipset VS100 for reliable performance

• Comes with a 3-year limited warranty from Legrand
