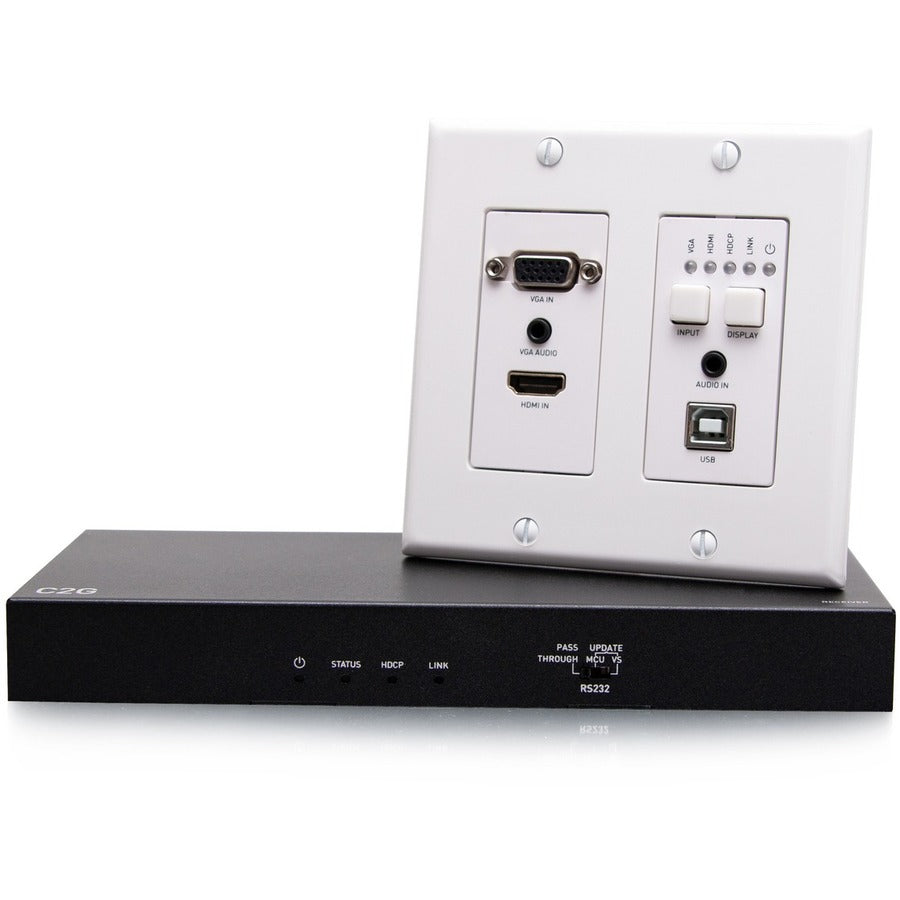

C2G HDMI HDBaseT + VGA Wall Plate Extender Set for 4K Video and USB over Cat6a

C2G HDMI HDBaseT + VGA, 3.5mm, and USB-B to A over Cat Extender Wall Plate Transmitter to Box Receiver - 4K 60Hz

The C2G HDMI HDBaseT + VGA, 3.5mm, and USB-B to A over Cat Extender Wall Plate Transmitter to Box Receiver is designed to deliver high-quality 4K video and audio signals over long distances using a single Ethernet cable. This versatile system supports extending 4K at 60Hz (4:2:0) up to 130 feet with a Cat6a cable and up to 115 feet with Cat5e or Cat6 cables, making it suitable for large conference rooms, classrooms, and lecture halls. It also supports extending 1080p VGA signals up to 230 feet with Cat5e/6 cables, providing flexible solutions for various display setups. The device is HDCP 2.2 compliant, ensuring secure and protected content transmission between source and display devices. Its HDBaseT VS210 chipset simplifies installation, allowing for straightforward setup and reliable performance. Automatic switching functionality enables the transmitter to connect to the most recent active source, optimizing ease of use in multi-source environments. The system also features one-way analog audio pass-through from the transmitter to the receiver, supporting stereo audio for better sound integration. Additionally, it supports high-speed USB 2.0 pass-through over HDBaseT up to 230 feet, allowing connection of up to four USB devices such as webcams, keyboards, and mice, facilitating KVM control in interactive applications. Power over HDBaseT (PoH) capability enables the receiver to supply power to the wall plate transmitter, eliminating the need for additional power adapters and simplifying installation. Firmware upgrades and device control can be performed via the Micro-USB port on the front panel of the transmitter or the RS232 port on the receiver, ensuring the system remains up-to-date and manageable. Constructed with a durable black wall plate form factor, this set is an ideal solution for extending high-quality AV signals and USB connectivity over long distances without compromising performance or security.

Features:

• Extend 4K at 60Hz (4:2:0) up to 130 feet and 1080p at 60Hz up to 230 feet using Cat 6a cable

• Extend 4K at 60Hz (4:2:0) up to 115 feet and 1080p at 60Hz up to 200 feet with Cat 5e/6 cable

• HDCP 2.2 compliance ensures secure and protected content transmission

• Utilizes HDBaseT VS210 chipset for simplified installation and reliable performance

• Automatic switching allows the transmitter to connect to the last active source automatically

• One-way analog stereo audio pass-through from transmitter to receiver

• Supports USB 2.0 pass-through over HDBaseT up to 230 feet, connecting up to four USB devices for KVM control

• Supports CEC switch commands sent by the wall plate for seamless device control

• Power over HDBaseT (PoH) enables the receiver to power the wall plate transmitter without additional power supply

• Firmware upgrades and device management are supported through the Micro USB and RS232 ports
