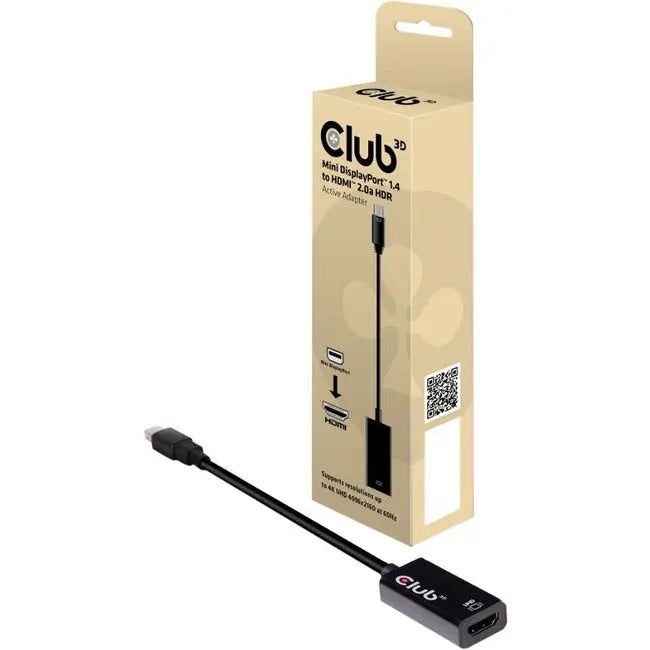

Club 3D Mini DisplayPort 1.4 to HDMI 2.0a HDR Converter - Supports 4K60Hz & HDR Video

The Club 3D CAC-1180 is a high-performance active signal converter designed to connect devices with Mini DisplayPort 1.4 outputs to HDMI 2.0a displays. It enables seamless transmission of ultra-high-definition video and HDR content, supporting resolutions up to 4096 x 2160 pixels at 60Hz for crisp, detailed images. This converter is ideal for professional presentations, home theaters, and gaming setups requiring deep color media playback with support for HDR video quality. The device is fully compliant with DisplayPort 1.4 and HDMI 2.0a specifications, ensuring reliability and compatibility with a wide range of multimedia equipment.

The CAC-1180 features a Mini DisplayPort receiver capable of up to 5.4 Gbps per lane over four lanes, facilitating smooth data transfer. It supports RGB and YCbCr color formats with a 16-bit per channel depth, enabling vibrant and accurate color reproduction. The converter also offers pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0, allowing for HDR pass-through and deep color support up to 12 bits per channel at 4K 60Hz. Additionally, it handles various audio formats, including LPCM and compressed audio, ensuring high-quality audio transmission alongside video.

Designed with versatility in mind, the CAC-1180 supports pass-through of 3D formats, stereoscopic 3D transport from DisplayPort to HDMI, and frame conversion from sequential to stacked top-bottom formats. It also provides horizontal expansion of VESA CVT to CEA timings, compatible with DP 1.4 specifications, and supports dual pixel paths at up to 600MHz with 16bpc color depth. The converter’s compact black design and RoHS compliance make it suitable for professional and environmentally conscious users alike.

Features:

• LPCM and compressed audio encoding formats for versatile audio support

• Audio stream handling for seamless sound transmission

• Pass-through of stereoscopic 3D formats for 3D video content

• Frame sequential to stacked top-bottom conversion for 3D displays

• DisplayPort to HDMI stereoscopic 3D transport capability

• Horizontal expansion of VESA CVT to CEA timings as per DisplayPort 1.4 specifications

• Supports dual pixel paths up to 600MHz with 16-bit per channel color depth

• Supports RGB and YCbCr pixel formats including 4:4:4, 4:2:2, and 4:2:0

• Handling of high-resolution video streams with up to 4K60Hz HDR content

• DisplayPort 1.4 receiver with up to 5.4Gbps link rate across HBR2, HBR, and RBR modes
