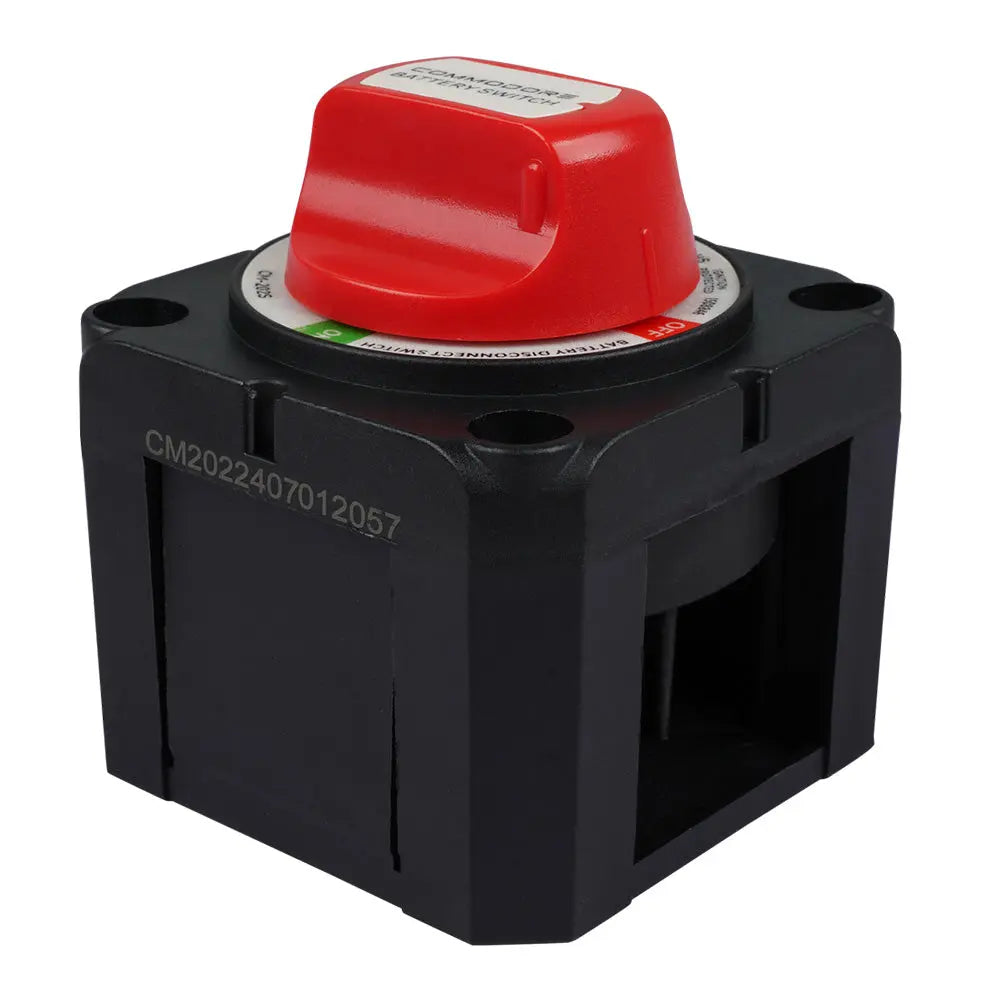

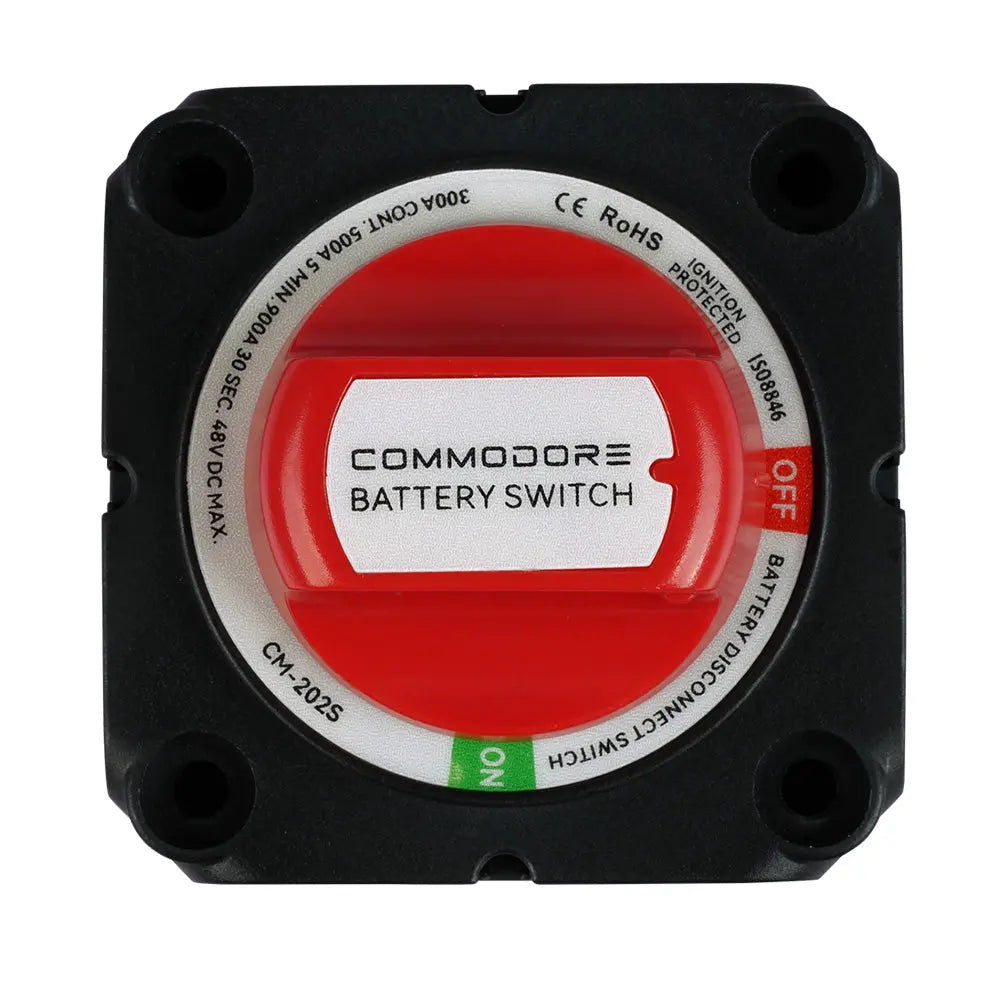

On/Off Battery Disconnect Switch
The Commodore On/Off Battery Disconnect Switch provides a reliable, durable, and safe solution for managing your marine or RV electrical systems. With a 300A continuous rating and a 900A cranking rating, this battery switch is designed to handle high-power applications, ensuring stable operation for your boat, RV, or off-grid systems. Its tin-plated copper studs offer superior conductivity and corrosion resistance, while the IP66-rated isolating cover provides robust protection against water and debris.
This versatile switch can be surface-mounted or flush-mounted, with snap-off side pieces allowing wiring access from any direction. Designed to meet stringent marine safety standards, including ISO 8846 Marine Ignition Protection, this switch is a must-have for any professional or DIY marine electrical system. Built for durability and reliability, the CM-202S ensures your system stays safe and operational in even the harshest conditions.
Features:
- High-Performance Ratings: Handles 300A continuous, 500A intermittent, and 900A cranking current, ensuring dependable performance for high-power marine or RV systems.
- Durable Tin-Plated Copper Studs: Features corrosion-resistant copper studs for maximum conductivity and long-lasting performance in harsh environments.
- Versatile Mounting Options: These can be surface-mounted or flush-mounted with snap-off side plates, offering flexible installation and clean cable management.
- Water-Resistant and Ignition Protected: Certified to ISO 8846 Marine standards, IP66-rated for protection against water jets, and safe for use in engine compartments.
- Easy Wire Access: The isolating cover includes three snap-off side pieces, allowing wiring from any direction while protecting rear terminals for enhanced safety.
- Meets Industry Standards: Complies with ABYC C-7, UL 1107, CSA C22.2 No.4, and other stringent safety regulations, ensuring compatibility and reliability.
- Compact and Lightweight Design: Weighing only 0.83 lbs (0.38 kg), the compact design saves space without compromising durability or performance.
- Rugged Marine-Grade Construction: Built to withstand the harshest marine and off-grid environments, ensuring long-lasting protection and reliable operation.
Specifications:
- Maximum Voltage: 48 VDC
- Switch Type: Single Circuit On-Off
- Battery Inputs: 1
- Color: Grey
- Cable Clearance for 4/0 AWG Cables: 1.12 in (28.45 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm2)
- Switch Positions: 2
- Battery Combine: No
- Alternator Field Disconnect: No
- Cranking Rating 30 seconds: 900A
- Continuous Rating: 300A
- Intermittent Rating: 500A (5 min)
- Mounting Holes: Accept #10 Screw
- Stud Material: Tinned Copper
- Stud Torque: 120 in-lb (13.56 Nm)
- Terminal Stud Size: 3/8 - 16 (M10)
- Weight: 0.65 lbs (0.29 kg)
The Commodore CM-202S On/Off Battery Disconnect Switch offers a robust and reliable solution for managing high-power electrical systems in marine, RV, and off-grid applications. Designed with a 300A continuous rating and a 900A cranking capacity, this switch ensures your system remains safe and operational under demanding conditions. Its durable tin-plated copper studs provide excellent conductivity and corrosion resistance, making it suitable for harsh environments. The IP66-rated isolating cover protects against water and debris, while the versatile mounting options—surface or flush—allow for flexible installation with snap-off side pieces for wiring from any direction. Certified to industry standards such as ISO 8846 Marine Ignition Protection and ABYC C-7, the CM-202S meets stringent safety and quality requirements, making it an ideal choice for both professional and DIY installations. Its compact design, weighing only 0.83 pounds, saves space without sacrificing performance or durability, and the rugged marine-grade construction ensures long-lasting protection in the most challenging conditions. Whether used on boats, RVs, or off-grid systems, this switch provides a dependable, safe, and efficient way to control your electrical system with ease and confidence.
Features:
- High-Performance Ratings: Handles 300A continuous, 500A intermittent, and 900A cranking current, ensuring dependable performance for high-power marine or RV systems.
- Durable Tin-Plated Copper Studs: Features corrosion-resistant copper studs for maximum conductivity and long-lasting performance in harsh environments.
- Versatile Mounting Options: These can be surface-mounted or flush-mounted with snap-off side plates, offering flexible installation and clean cable management.
- Water-Resistant and Ignition Protected: Certified to ISO 8846 Marine standards, IP66-rated for protection against water jets, and safe for use in engine compartments.
- Easy Wire Access: The isolating cover includes three snap-off side pieces, allowing wiring from any direction while protecting rear terminals for enhanced safety.
- Meets Industry Standards: Complies with ABYC C-7, UL 1107, CSA C22.2 No.4, and other safety regulations, ensuring compatibility and reliability.
- Compact and Lightweight Design: Weighing only 0.83 lbs, the compact design saves space without compromising durability or performance.
- Rugged Marine-Grade Construction: Built to withstand the harshest marine and off-grid environments, ensuring long-lasting protection and reliable operation.
