Comprehensive CHE-HDBTWP121K 4K HDMI, USB 2.0, and Audio Wall Plate Extender Kit

Comprehensive CHE-HDBTWP121K Video Extender Transmitter/Receiver

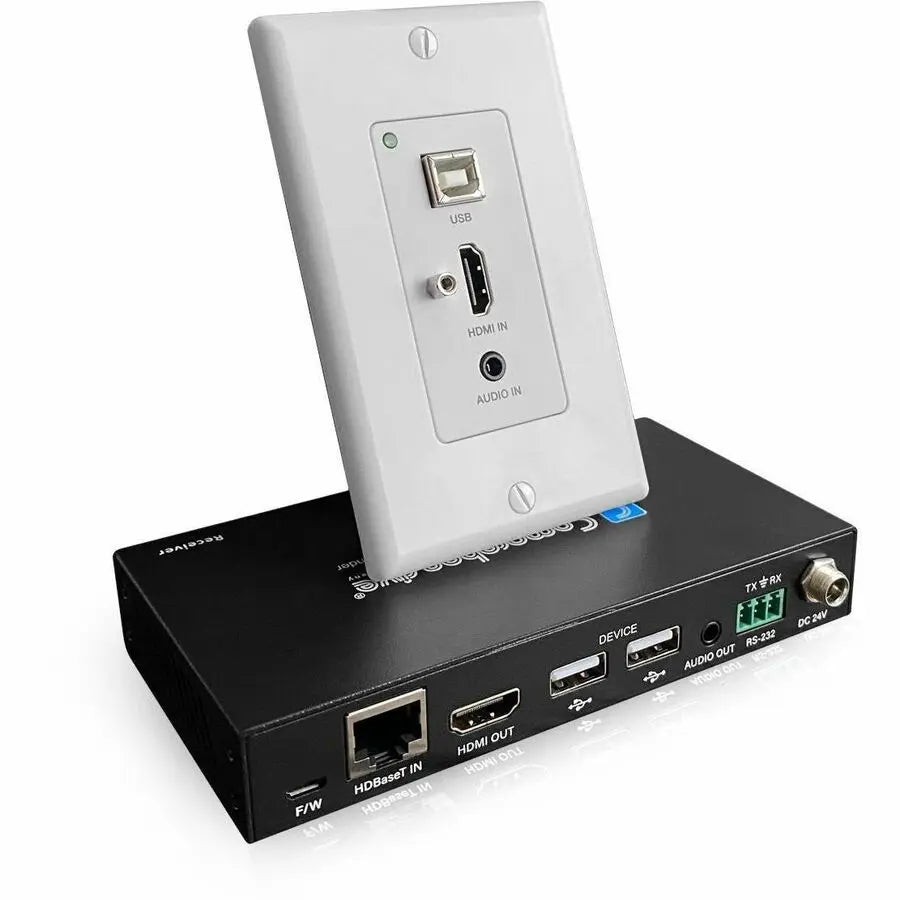

The Comprehensive CHE-HDBTWP121K wall plate extender kit provides a seamless solution for extending 4K HDMI, high-speed USB 2.0, and analog audio signals over a single UTP cable up to 230 feet. Designed for professional AV/IT installations, this versatile kit is ideal for classrooms, conference rooms, courtrooms, and any environment requiring remote audio-visual connectivity. The compact wall plate transmitter and receiver units facilitate clean, unobtrusive installations while supporting high-resolution video and high-speed data transfer. The system is fully HDCP 2.2 and 1.4 compliant, ensuring compatibility with latest 4K content and devices. The HDMI input supports resolutions up to 4K@60Hz (4:4:4), with a maximum transmission distance of approximately 131 feet at 4K or up to 230 feet at 1080p, making it suitable for a range of professional AV applications. The inclusion of dual USB 2.0 ports allows simultaneous connection of two USB devices, such as peripherals or cameras, enhancing integration flexibility. Additionally, the dedicated 3.5mm analog audio port enables independent audio transmission, providing options for audio routing without interfering with the HDMI signal. The system supports HDR and CEC pass-through, ensuring high-quality video and seamless device control. The POC (Power over Cable) feature simplifies installation by allowing either the transmitter or receiver to be powered via the included 24V/1A power supply or Phoenix connector, reducing cable clutter and power supply requirements. The bidirectional RS-232 control signal transmission further extends control capabilities over the same cable, making this extension system an indispensable component for modern AV setups. The package includes the wall plate transmitter, receiver, mounting accessories, power supply, USB cable, and user manual, backed by a three-year limited warranty for peace of mind. With support for a wide array of resolutions, video formats, and control signals, the CHE-HDBTWP121K is a comprehensive solution for extending high-quality AV signals efficiently over long distances in professional settings.

Features:

• Extends your 4K HDMI, Audio and USB 2.0 High Speed Signals over a single UTP cable up to 230ft

• Supports HDMI 2.0 with 18Gbps bandwidth for high-resolution video

• Fully HDCP 2.2 and 1.4 compliant for secure content transmission

• Supports resolutions up to 4K@60Hz (4:4:4) over a single CAT 6/6a/7 cable at distances up to 131 feet, and 1080p@60Hz up to 230 feet

• Includes two high-speed USB 2.0 ports for connecting multiple USB devices simultaneously

• Dedicated 3.5mm analog audio port for independent audio routing

• Supports HDR and CEC pass-through for enhanced video quality and device control

• 24V Power over Cable (POC) feature allows either unit to be powered via included power supply or Phoenix connector, reducing cable clutter

• Low power consumption of less than 10W for POC operation

• Bidirectional RS-232 control signal transmission for remote device management

• Includes comprehensive mounting hardware, power adapter, USB cable, and user manual, backed by a 3-year warranty
