Comprehensive CHE-HDWP85UD HDMI and USB-C 4K60Hz Wall Plate Extender Kit

Comprehensive Pro AV/IT Integrator Series™ HDMI & USB-C 4K60Hz Wall Plate Extender Kit up to 164ft

The Comprehensive CHE-HDWP85UD is a professional 2x1 HDMI and USB-C wall plate extender kit designed to transmit high-quality video from local sources to a remote display over standard CAT5e or CAT6 cabling. Supporting resolutions up to 4K/UHD at 60Hz with 4:4:4 chroma sampling, this extender delivers clear images, detailed textures, and reliable performance for classrooms, conference rooms, courtrooms, offices, and home workspaces.

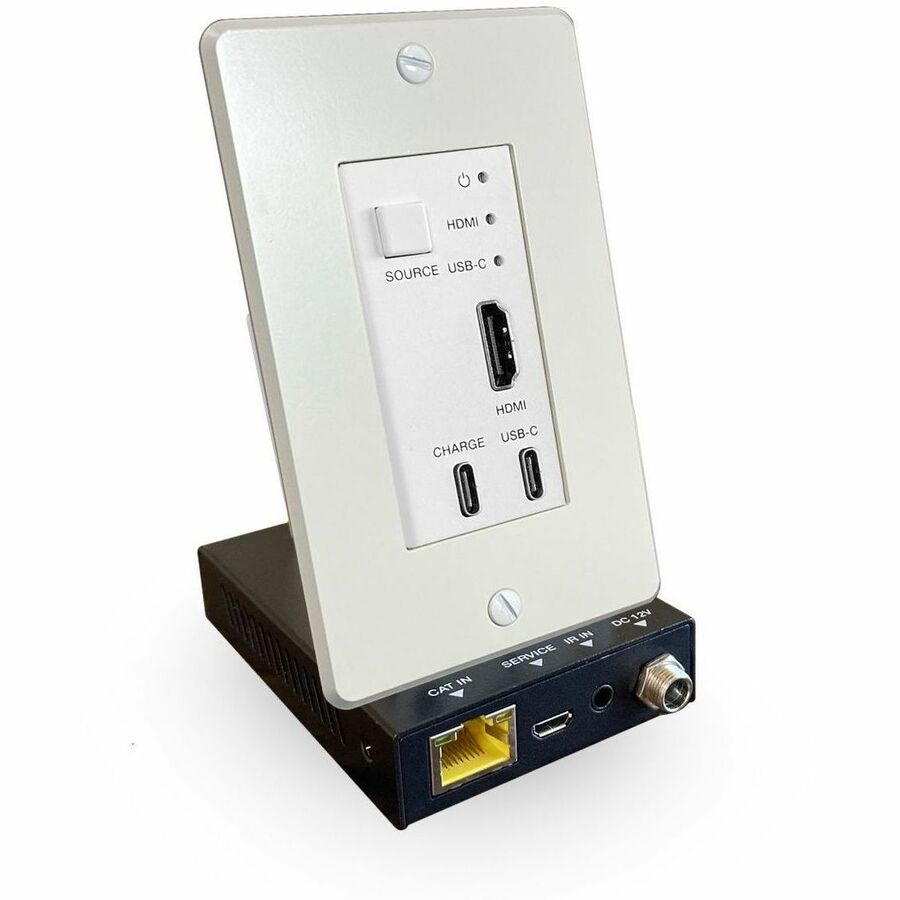

The wall plate transmitter features HDMI and USB-C inputs, automatic or manual source selection, and a US one-gang enclosure compatible with Decora-style wall plate openings. Its CAT output supports transmission distances up to 164 feet for 4K at 24Hz or up to 115 feet for 4K at 60Hz with 4:4:4 chroma through a single CAT5e or CAT6 cable. Power over Cable allows the receiver to remotely power the transmitter, helping simplify installation. A USB-C charging port is also included for added convenience.

Designed for modern AV environments, the CHE-HDWP85UD is compliant with HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a standards. It supports 3D and HDR video formats, HDMI bandwidth up to 18Gbps, and USB-C video bandwidth up to 5.4Gbps. Compatible audio formats include LPCM, Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio, DSD, and additional multichannel formats. CEC control is not supported.

Built with a durable metal housing, this Comprehensive extender kit combines practical installation features with commercial-grade reliability. The package includes the CHE-HDWP85UD transmitter and receiver, power adapter, and user manual. Comprehensive Connectivity Company backs the system with a 3-year limited warranty, providing dependable support for professional AV and IT installations.

Features:

• Compliant with HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a
• Supports video resolutions up to 4K/UHD at 60Hz with 4:4:4 chroma sampling
• HDMI input supports up to 18Gbps video bandwidth
• USB-C input supports up to 5.4Gbps video bandwidth
• Extends video up to 164 feet for 4K at 24Hz or 115 feet for 4K at 60Hz with 4:4:4 chroma over a single CAT5e or CAT6 cable
• Supports 3D and HDR video formats; CEC control is not supported
• Supports LPCM, Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio, DSD, and other HDMI audio formats
• Provides HDMI and USB-C source inputs
• US one-gang wall plate enclosure fits Decora-style openings
• Offers automatic and manual input signal selection
• Includes a USB-C charging port
• Supports Power over Cable from the receiver to the transmitter
• Includes transmitter, receiver, power adapter, and user manual
• Backed by a 3-year limited warranty
