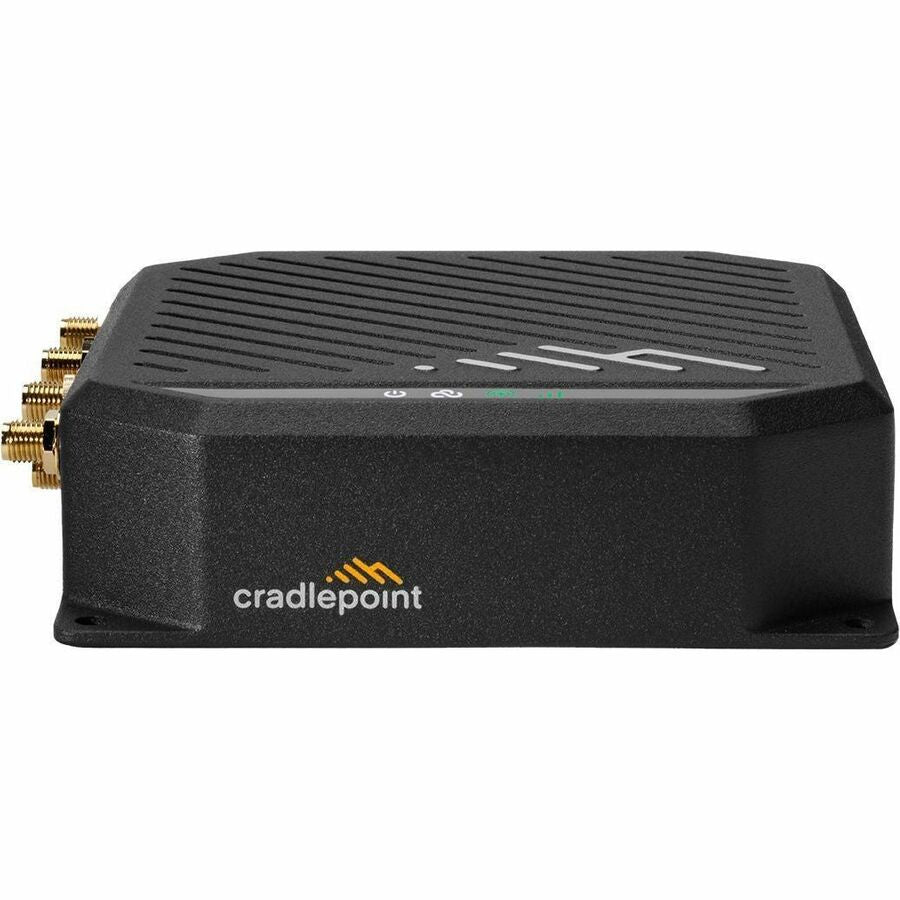

Cradlepoint S700-C4D Semi-Ruggedized 4G LTE IoT Modem/Wireless Router, TBA3-0700C4D-NN

CradlePoint S700-C4D Wi-Fi 6 IEEE 802.11ax 2 SIM Ethernet, Cellular Modem/Wireless Router

The Cradlepoint S700-C4D semi-ruggedized modem/wireless router, part number TBA3-0700C4D-NN, delivers secure, cloud-managed connectivity for light industrial, IoT, portable, and fixed applications. Its embedded Cat 4 LTE modem, dual SIM support, wired networking, and concurrent dual-band Wi-Fi 6 provide flexible connectivity for surveillance cameras, digital signage, remote monitoring, parallel networking, and embedded systems. The aluminum housing and DIN rail-mountable form factor support dependable deployment in demanding field and facility environments.

When paired with Cradlepoint NetCloud Service for IoT, the S700-C4D enables centralized management, policy configuration, analytics, troubleshooting, reporting, and firmware updates across deployments ranging from hundreds to thousands of routers. Administrators can optimize routing, traffic steering, secure tunneling, and device visibility from the cloud. Support for VPN technologies such as DMVPN, IPsec, and GRE provides encrypted routing for connected applications, while in-band and out-of-band management helps simplify remote diagnostics and maintenance.

The S700 Series also supports zero trust networking through NetCloud Exchange Secure Connect and ZTNA. Encrypted tunnels help isolate IoT devices into controlled micro networks, while access policies limit communication to authorized resources and applications. Authorized third parties can securely access connected devices over the WAN for remote monitoring and service. Configurable GPIO ports, active GNSS/GPS, NetCloud integrations, and compatibility with the NetCloud SDK and API extend the router for asset tracking and specialized IoT deployments.

This Cradlepoint S700-C4D package includes the router, GPIO and power cable, 12 VDC power supply, two cellular antennas, and two Wi-Fi antennas. With REACH compliance and a limited lifetime warranty, it is designed to provide scalable connectivity, security, and operational control for professional IoT networks.

Features:

• Centralized cloud management for defining and applying network policies across large IoT deployments.
• Embedded Cat 4 LTE modem with dual SIM support for flexible, dependable cellular connectivity.
• Concurrent dual-band Wi-Fi 6 for expanded wireless coverage and IoT device connectivity.
• Semi-ruggedized aluminum construction designed to withstand vibration and temperature extremes.
• DIN rail-mountable form factor for light industrial, portable, fixed, and embedded applications.
• Configurable GPIO ports and NetCloud integrations for specialized IoT use cases.
• Active GNSS/GPS support for asset tracking and mobile IoT applications.
• Encrypted VPN tunneling support, including DMVPN, IPsec, and GRE.
• NetCloud Exchange Secure Connect and ZTNA support for zero trust access and device isolation.
• NetCloud SDK and API support for extending and integrating router functionality.
