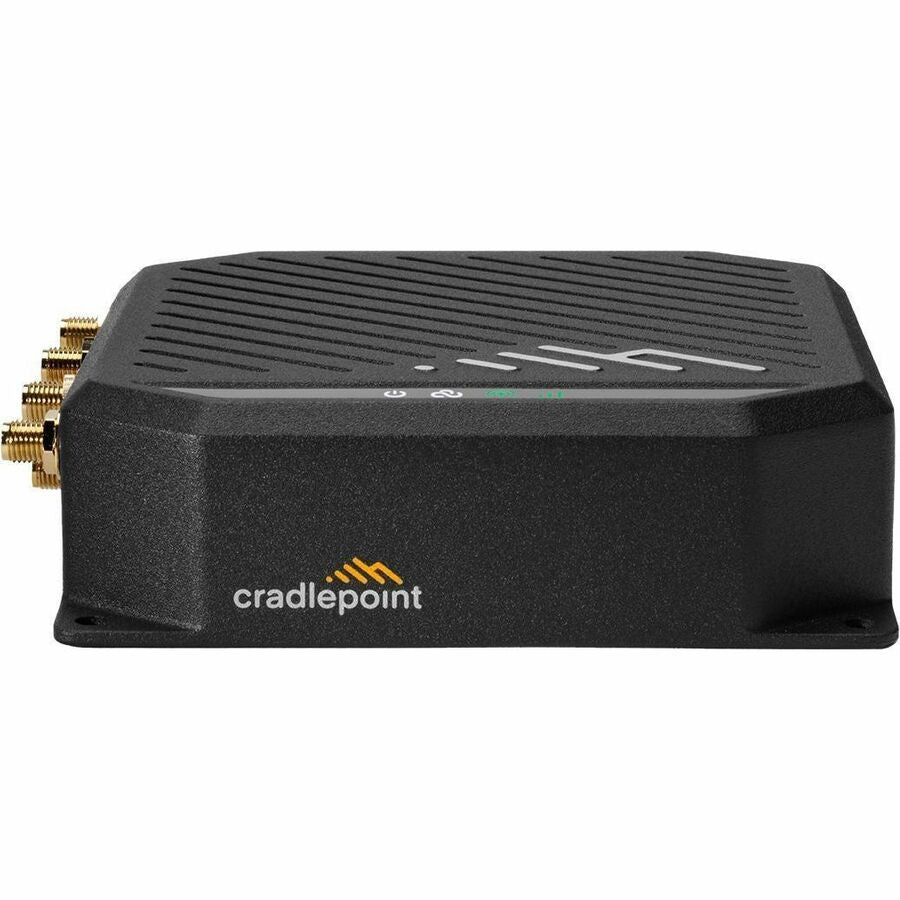

Cradlepoint S700 Semi-Ruggedized 4G LTE IoT Router, Part Number TB05-0700C4D-NN

CradlePoint Wi-Fi 6 IEEE 802.11ax 2 SIM Ethernet, Cellular Modem/Wireless Router

The Cradlepoint S700 modem/wireless router, part number TB05-0700C4D-NN, is a semi-ruggedized, cloud-managed 4G LTE solution for light industrial, IoT, portable, and fixed-network applications. Designed by Ericsson and supported through Cradlepoint NetCloud Service, this router combines LTE connectivity with wired networking, dual-band concurrent Wi-Fi 6, configurable GPIO, and active GNSS/GPS. Its aluminum housing and DIN rail-mountable form factor support reliable deployment in field environments, embedded systems, surveillance installations, digital signage, oil and gas monitoring, and parallel networking applications.

With an embedded Category 4 LTE modem and dual SIM support, the S700 helps maintain dependable connectivity for distributed IoT deployments. The router is designed to tolerate vibration and temperature extremes associated with light industrial use while providing a compact, portable networking platform. Integrated GPIO ports support application-specific monitoring and control, while GNSS/GPS capabilities enable asset tracking and mobile IoT use cases. Included cellular and Wi-Fi antennas, along with the GPIO and power cable, help simplify installation.

When paired with an appropriate Cradlepoint NetCloud IoT service plan, the S700 provides centralized cloud management for routing, policy control, diagnostics, analytics, reporting, secure tunneling, and firmware updates. Administrators can manage deployments ranging from hundreds to thousands of endpoints with visibility into device status and network performance. Support for VPN technologies such as DMVPN, IPsec, and GRE enables encrypted routing, while Secure Connect and zero trust access features help restrict connected devices to authorized resources and support controlled remote maintenance.

The S700 also supports extensibility through NetCloud SDK and API capabilities, including integrations with platforms such as Microsoft Azure IoT Central. Its IP30-rated aluminum construction, DIN rail mounting, lifetime limited warranty, and REACH compliance make it a practical choice for organizations seeking scalable, secure, and manageable IoT connectivity. The package includes the S700 router, GPIO and power cable, two cellular antennas, and two Wi-Fi antennas.

Features:

• Centralized cloud-based policy management for simplified deployment and administration at scale.
• Embedded Category 4 LTE modem with dual SIM support for dependable cellular connectivity.
• Dual-band concurrent Wi-Fi 6 for expanded wireless coverage and IoT connectivity.
• Semi-ruggedized aluminum construction designed to withstand vibration and temperature extremes.
• Configurable GPIO ports and NetCloud integrations for industrial monitoring and control applications.
• NetCloud SDK and API support for customization, automation, and third-party integrations.
• Active GNSS/GPS support for asset tracking and mobile IoT deployments.
• DIN rail-mountable form factor for field, embedded, and light industrial installations.
• VPN support including DMVPN, IPsec, and GRE for encrypted routing.
• Zero trust networking and secure remote access capabilities through compatible NetCloud services.
