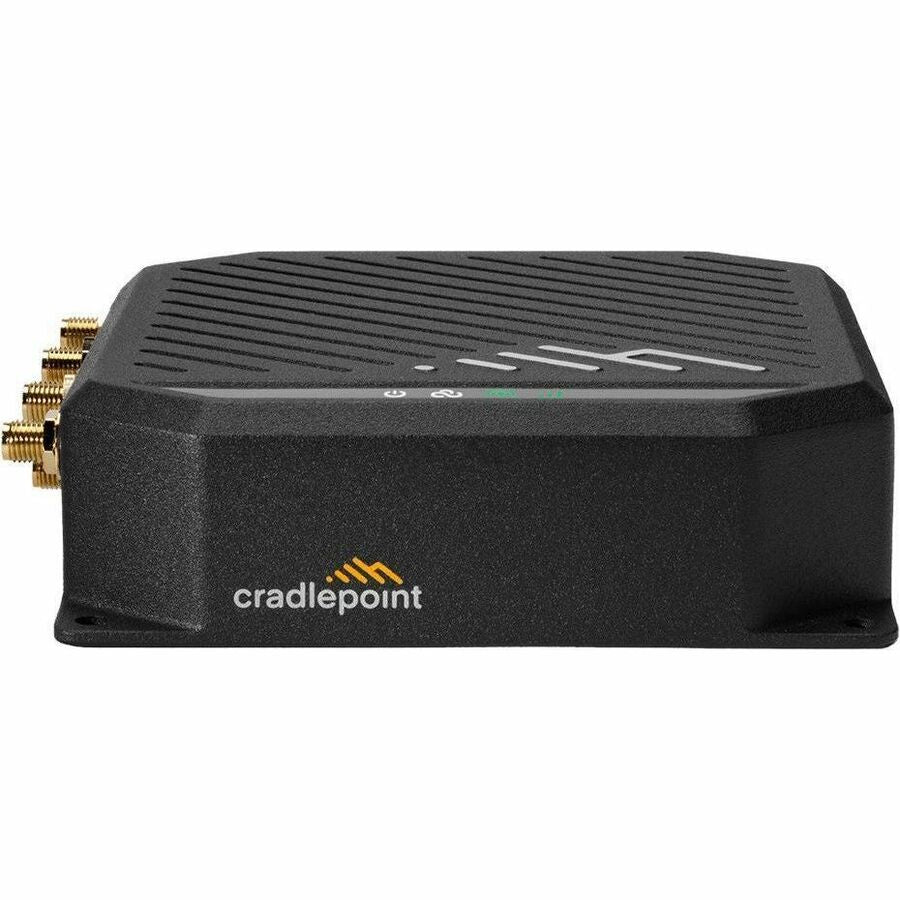

Cradlepoint S700 Semi-Ruggedized 4G LTE IoT Router, TAA-TB03-0700C4D-NN

CradlePoint Wi-Fi 6 IEEE 802.11ax 2 SIM Ethernet, Cellular Modem/Wireless Router - TAA Compliant

The Cradlepoint S700 Series Semi-Ruggedized Router, part number TAA-TB03-0700C4D-NN, is a cloud-managed 4G LTE modem and wireless router designed for light industrial, IoT, portable, and fixed networking applications. With LTE connectivity, dual SIM support, wired networking, concurrent dual-band Wi-Fi 6, and active GNSS/GPS, the S700 provides a flexible platform for connecting surveillance cameras, digital signage, monitoring equipment, embedded systems, and other distributed devices.

Semi-Ruggedized IoT Connectivity

Built with an aluminum housing and an IP30-rated design, the Cradlepoint S700 is engineered to support deployments exposed to vibration and temperature variation. Its DIN rail-mountable form factor makes installation practical in industrial cabinets, field environments, buildings, and portable systems. The embedded Cat 4 modem provides dependable cellular connectivity, while dual SIM capability helps support network resilience and flexible carrier deployment. Included cellular and Wi-Fi antennas, power supply, and GPIO and power cable simplify installation.

Cloud Management and Security

When used with a Cradlepoint NetCloud Service plan, the S700 enables centralized management for IoT networks ranging from small installations to large-scale deployments. Administrators can define and apply policies, review status insights, access analytics and reports, troubleshoot remotely, and manage software and firmware updates through the cloud. The platform supports secure routing and encrypted VPN technologies, including DMVPN, IPsec, and GRE. NetCloud Exchange Secure Connect and zero trust networking capabilities help restrict device communication to authorized resources while enabling controlled remote access for monitoring and maintenance.

Flexible IoT Integration

Configurable GPIO ports, NetCloud integrations, SDK support, and APIs allow the S700 to adapt to specialized IoT workflows. Active GNSS/GPS supports asset tracking and mobile deployments, while dual-band Wi-Fi 6 expands local wireless coverage and device connectivity. The TAA-compliant Cradlepoint S700 includes a lifetime limited warranty and is an effective choice for secure, scalable cellular networking in demanding environments.

Features:

• Define policies through centralized, cloud-based management for efficient deployment and administration at scale.
• Use an embedded Cat 4 LTE modem with dual SIM support for reliable cellular connectivity and carrier flexibility.
• Extend wireless coverage with concurrent dual-band Wi-Fi 6 for connected IoT devices.
• Deploy a semi-ruggedized aluminum router designed to withstand vibration and temperature variation.
• Connect and manage IoT equipment through configurable GPIO ports and NetCloud integrations.
• Customize network functionality with the NetCloud SDK and API.
• Support asset tracking and mobile IoT applications with active GNSS/GPS.
• Install the router in industrial cabinets and other systems using its DIN rail-mountable form factor.
• Secure network traffic with support for VPN tunneling technologies including DMVPN, IPsec, and GRE.
• Manage distributed IoT networks with cloud-based analytics, diagnostics, reporting, policies, and firmware updates.
